Struers methods: Oxides Others Fast Method 1320 DiaPro. Source classification: Ceramics.
Searchable text transcription

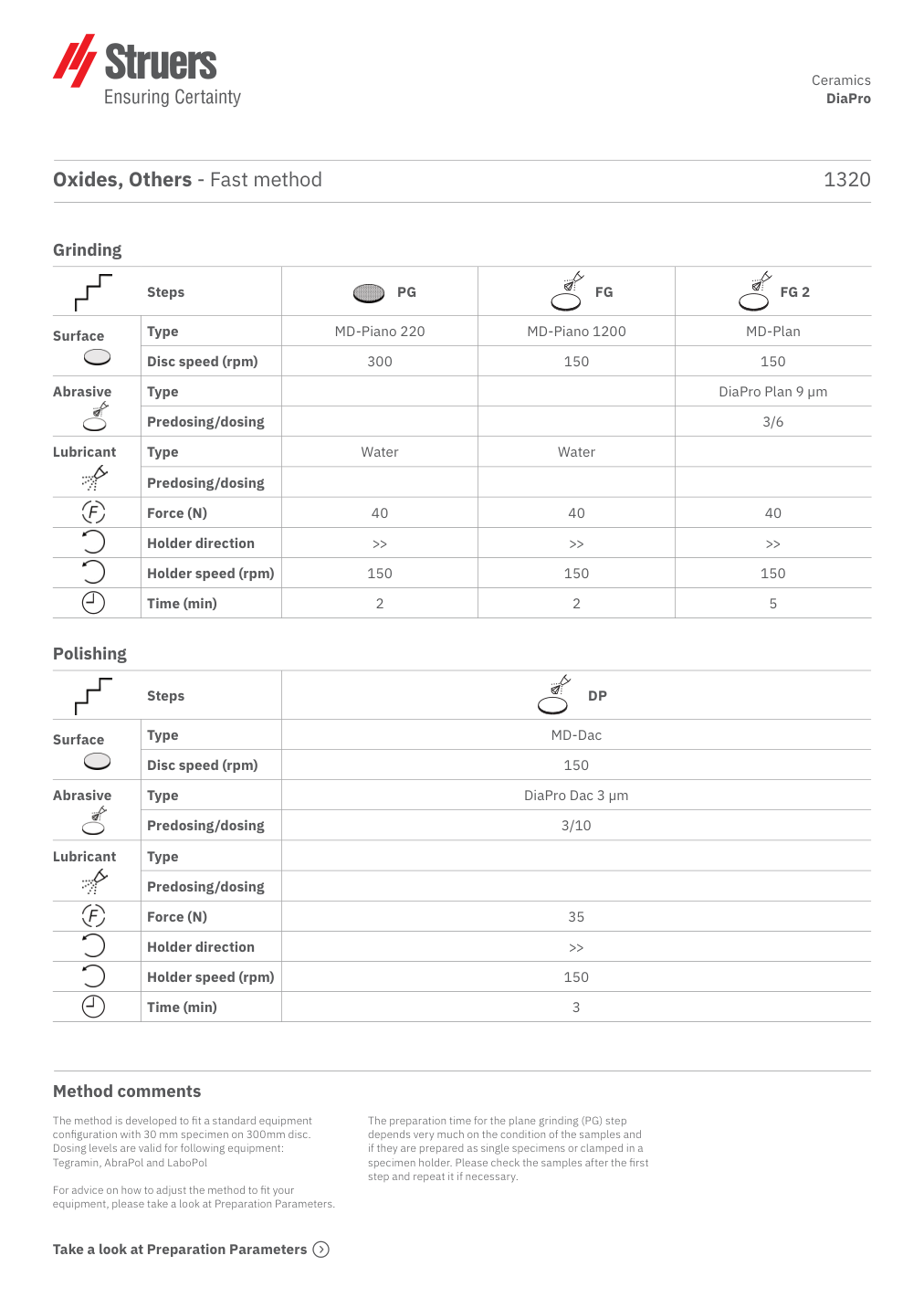

The page images and original PDF preserve the table layout and notation.
Grinding Steps PG FG FG 2 Surface Type MD-Piano 220 MD-Piano 1200 MD-Plan Disc speed (rpm) 300 150 150 Abrasive Type DiaPro Plan 9 µm Predosing/dosing 3/6 Lubricant Type Water Water Predosing/dosing Force (N) 40 40 40 Holder direction >> >> >> Holder speed (rpm) 150 150 150 Time (min) 2 2 5 Polishing Steps DP Surface Type MD-Dac Disc speed (rpm) 150 Abrasive Type DiaPro Dac 3 µm Predosing/dosing 3/10 Lubricant Type Predosing/dosing Force (N) 35 Holder direction >> Holder speed (rpm) 150 Time (min) 3 Oxides, Others - Fast method 1320 Ceramics DiaPro The method is developed to fit a standard equipment configuration with 30 mm specimen on 300mm disc. Dosing levels are valid for following equipment: Tegramin, AbraPol and LaboPol For advice on how to adjust the method to fit your equipment, please take a look at Preparation Parameters. The preparation time for the plane grinding (PG) step depends very much on the condition of the samples and if they are prepared as single specimens or clamped in a specimen holder. Please check the samples after the first step and repeat it if necessary. Method comments Take a look at Preparation Parameters
