The Axio Observer is a research-grade metallograph designed for the examination of mounted samples. Contrasting methods for reflected light include brightfield, darkfield, circular DIC, polarization and fluorescence.
Brochure
Features
| Encoded components allow communication between the microscope, AxioCam camera, and ZEN core imaging software, keeping track of the objective, calibration, optical technique, tube lens, lighting parameters, and motorized X/Y stage parameters and coordinates | Full integration with ZEN core provides automatic scaling when changing objectives to ensure accurate measurements (D1m and Z1m only) | |
| 12.5-1500X optical magnification range | Light manager, which stores illumination settings of each objective and contrast technique, recalled automatically as each objective is positioned | |
| Optional Optovar tube lens (1.25, 1.6, 2.5X) allows higher range of magnification up to 3750X | Manual and motorized versions available | |
| 6-position objective turret offers 1.25 to 150X objective magnification without exchange | Low-position fine and coarse focus knobs | |
| Innovative contrast techniques: advanced darkfield, C-DIC | Excellent for large or heavy specimens | |
| Apochromatic corrected Kohler illuminated light path | Photoport for digital, video or 35 mm SLR cameras | |
| Sturdy mechanical X/Y stage with low position coaxial controls (left or right), minimum 130 x 85 mm range | 12 V/100 W halogen light source with built-in power supply (mercury or xenon illumination available) | |
| LCD indicates objective magnification and lamp voltage |
| Item # | Description | |
|---|---|---|

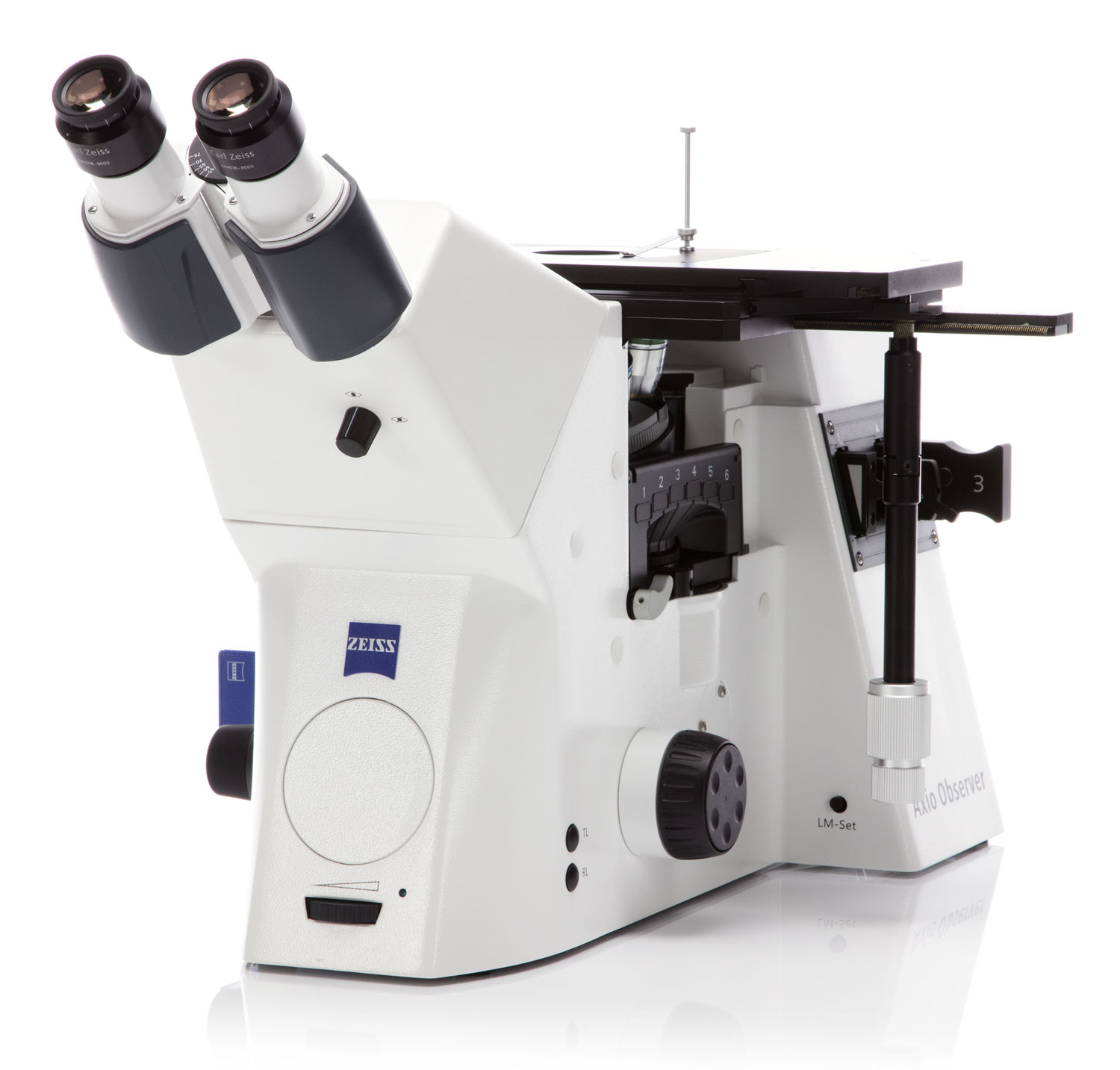

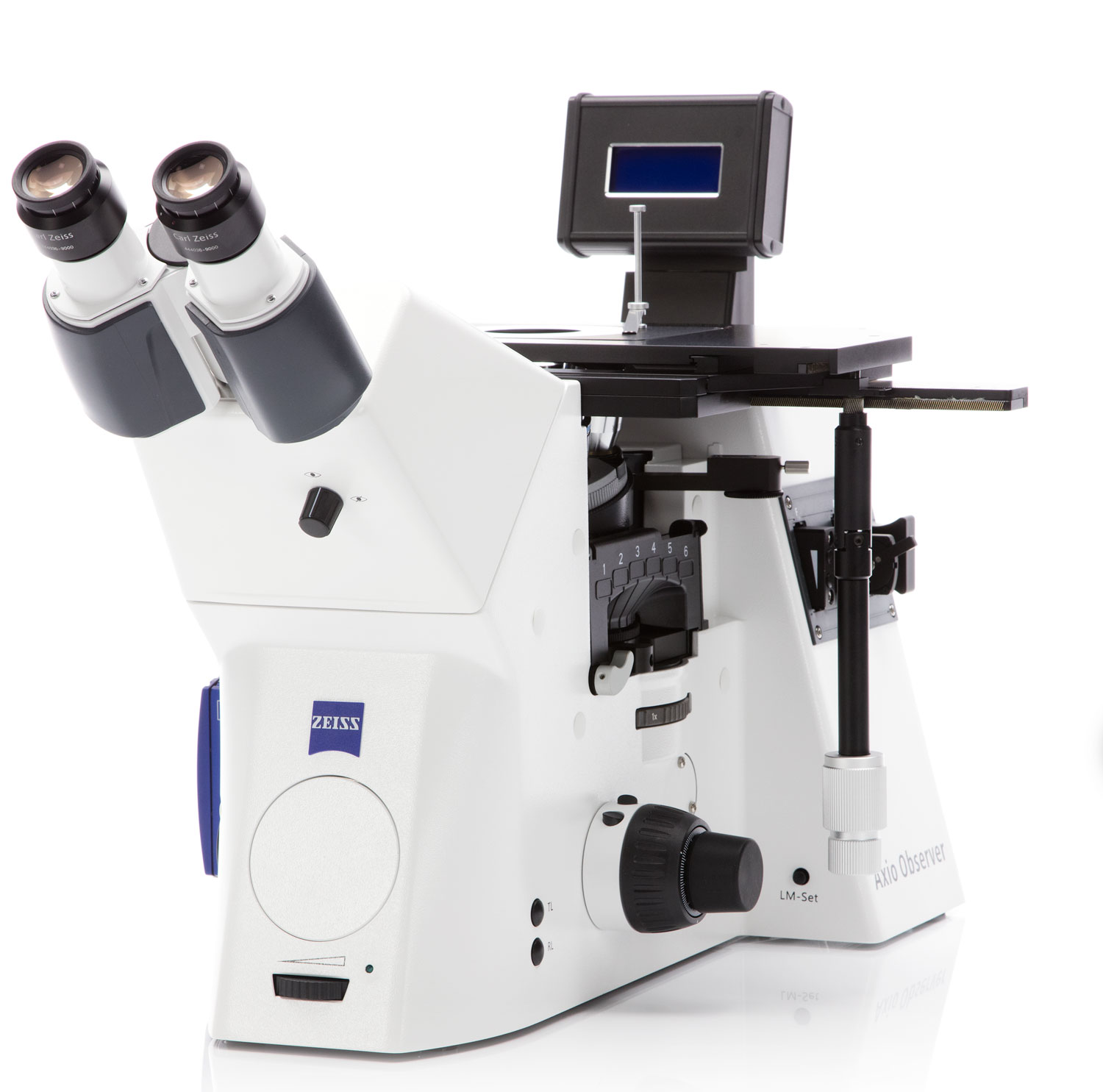

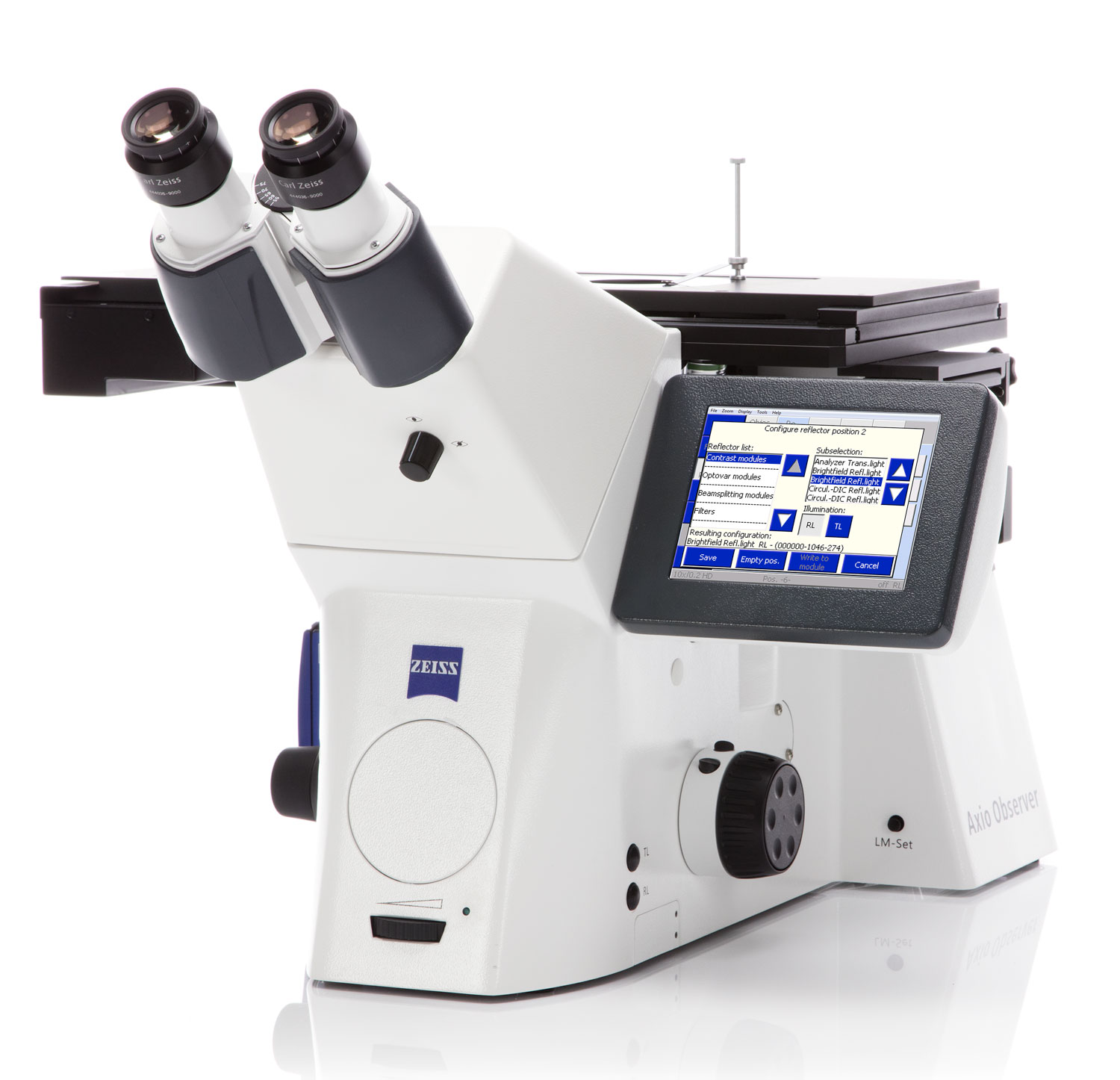

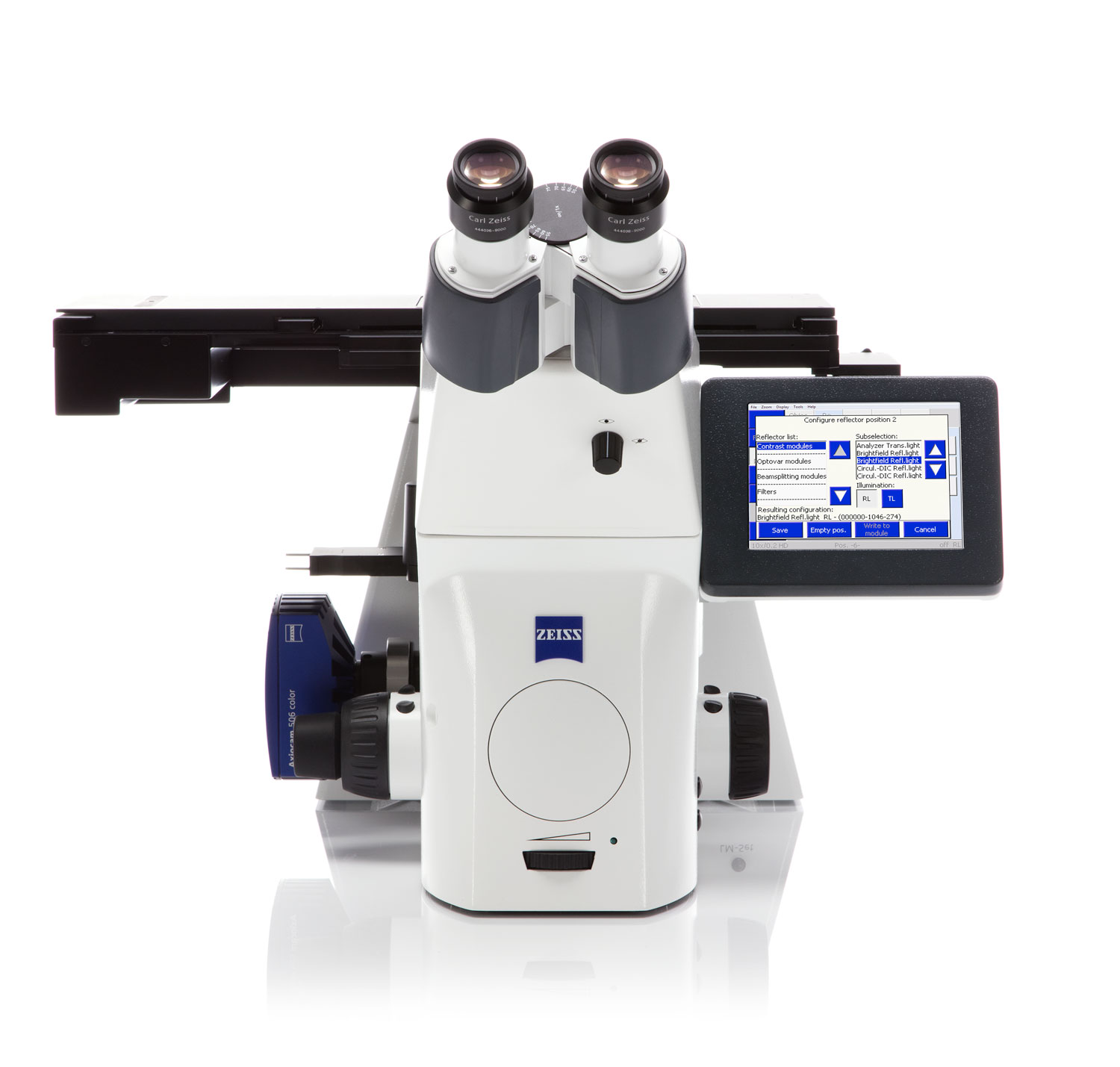

| CALL FOR CONFIGURATION/ QUOTATION | Axio Observer 3 MAT/5 MAT/7 MAT |
