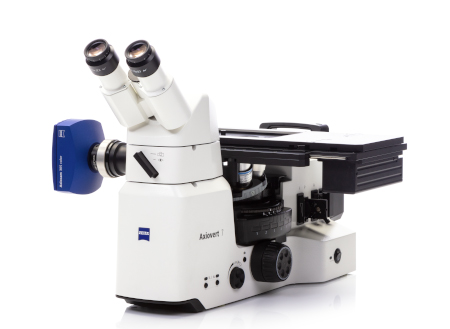

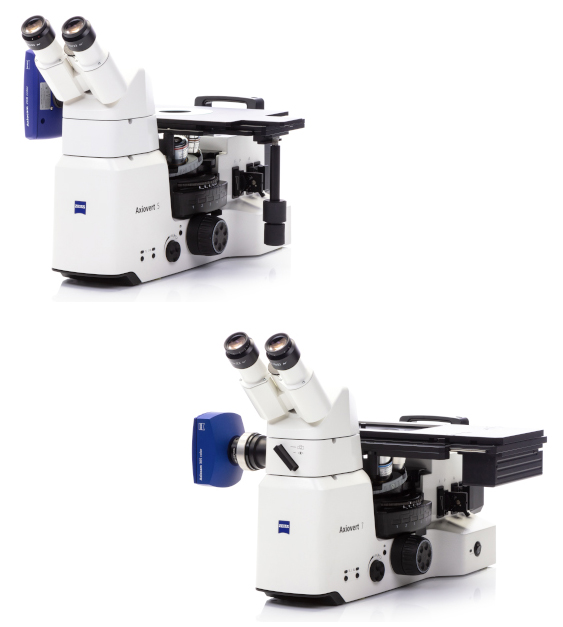

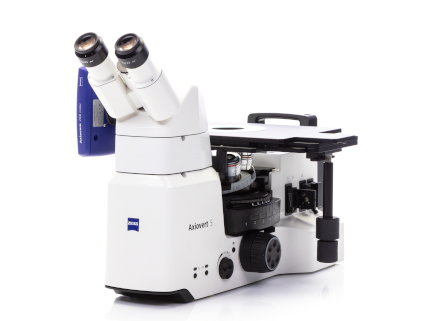

The Axiovert 5 MAT inverted microscope & Axiovert 7 MAT inverted motorized microscope have a low profile design and are well suited for routine examination of mounted samples. Contrasting methods for reflected light include brightfield, darkfield, circular DIC, polarization, and fluorescence. The Axiovert 5 is a manual microscope with coded components and can work as a stand-alone system (without a PC). The Axiovert 7 is a motorized microscope with coded components and motorized focus drive.
Brochure
Features
| 6-position objective turret, M27 thread | Reflected light illuminator with slots for luminous field diaphragm, polarizer and filter sliders | |
| 6-position reflector turret, manual, push & click | 12 x 35 mm slot for analyzer slider | |
| Manual fine/coarse focus drive (Axiovert 5) | Motorized focus drive - 78 nm resolution (Axiovert 7) | |

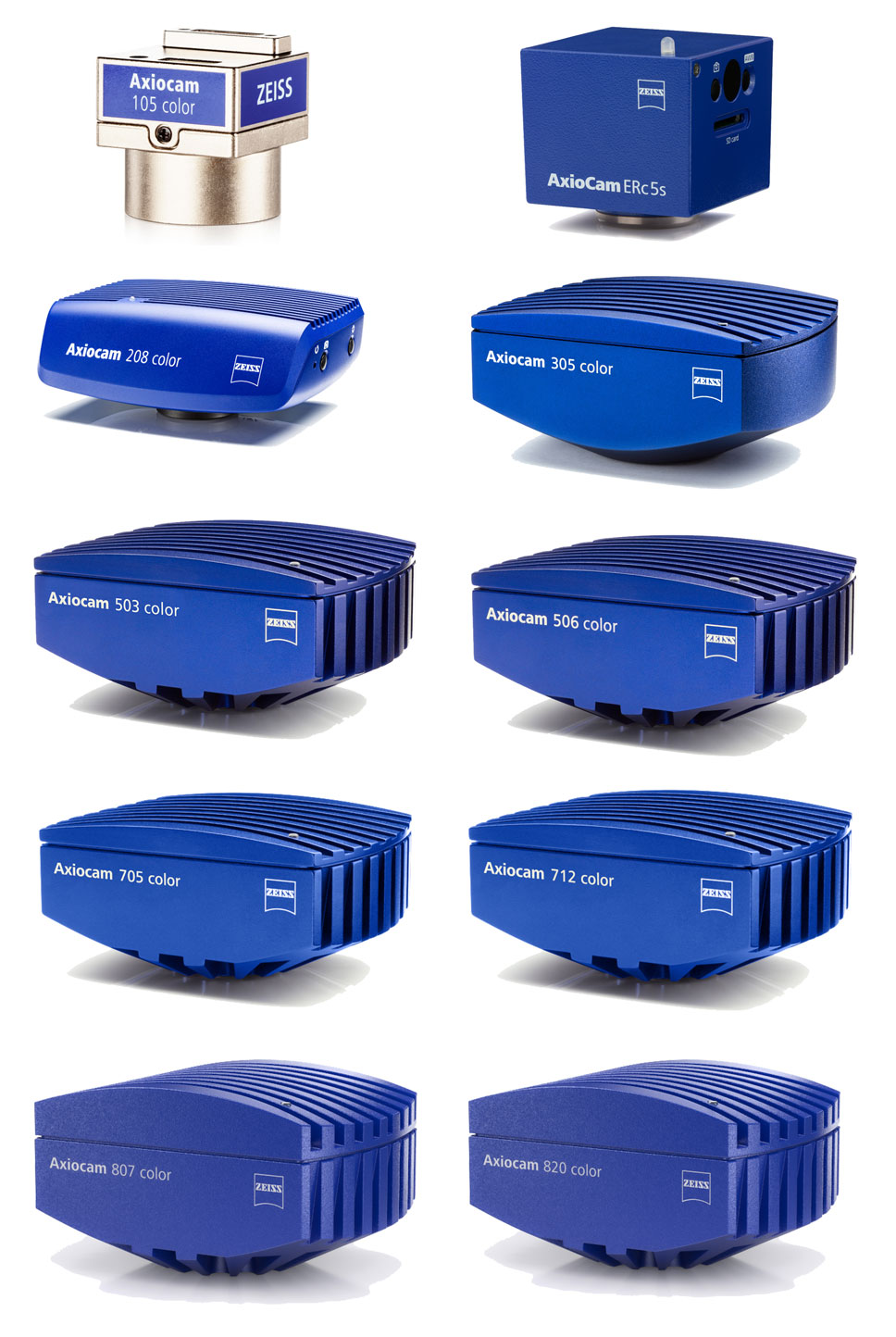

| 13 mm focus lift with adjustable focus stop | Snap button for ZEISS Axiocam | |
| Ergonomic intermediate piece, H=50 mm | ECO Mode | |
| Light manager stores illumination settings of each objective and contrast technique, that can be recalled automatically as each objective/reflector module is positioned | Smart Box Control for stand-alone operation without a PC (Axiovert 5) | |
| Parfocality manager (Axiovert 7) | USB interface for communication with computer | |
| Built-in power supply with 50 watt bulb, 12V DC 60W, stabilized, 100V...240V AC/50...60Hz/80VA |
| Item # | Description | |
|---|---|---|
| CALL FOR CONFIGURATION/ QUOTATION | AXIOVERT 5 MAT INVERTED MICROSCOPE | |
| CALL FOR CONFIGURATION/QUOTATION | AXIOVERT 7 MAT INVERTED MOTORIZED MICROSCOPE |
