Diamond Lapping Film Discs - 12"

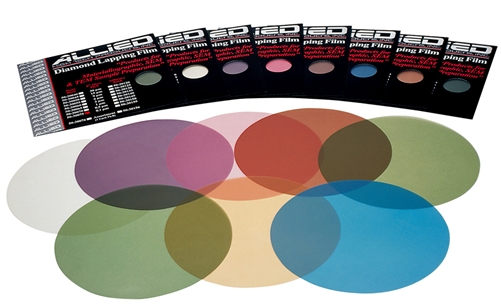

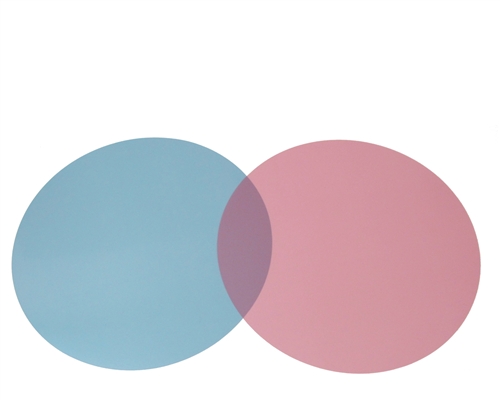

Diamond Lapping Film Discs - 12"

More Views:

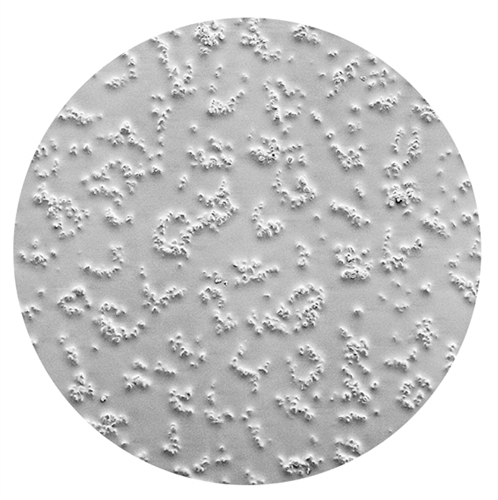

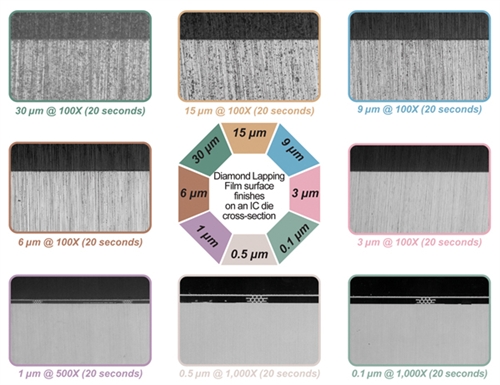

Standard Diamond Lapping Film consists of precision graded diamond particles resin bonded to a uniform mylar film. They provide excellent edge retention and maintain coplanarity regardless of varying materials or hardness within the sample. Typically used for unencapsulated cross-sectioning, TEM wedge/plan-view polishing, backside polishing and FIB sample thinning.SAFETY DATA SHEET

Source video: View original video


Item# Item Name
50-31238 Diamond Lapping Film, 35 Micron, 12" Disc (Pk/5)
50-31240 Diamond Lapping Film, 30 Micron, 12" Disc (Pk/5)
50-31245 Diamond Lapping Film, 15 Micron, 12" Disc (Pk/5)
50-31250 Diamond Lapping Film, 9 Micron, 12" Disc (Pk/5)
50-31255 Diamond Lapping Film, 6 Micron, 12" Disc (Pk/5)
50-31260 Diamond Lapping Film, 3 Micron, 12" Disc (Pk/5)
50-31265 Diamond Lapping Film, 1 Micron, 12" Disc (Pk/5)
50-31270 Diamond Lapping Film, 0.5 Micron, 12" Disc (Pk/5)
50-31275 Diamond Lapping Film, 0.1 Micron, 12" Disc (Pk/5)
50-30160 Diamond Lapping Film, 30 Micron, 12" Adhesive Back Disc (Pk/5)
50-30165 Diamond Lapping Film, 15 Micron, 12" Adhesive Back Disc (Pk/5)
50-30170 Diamond Lapping Film, 9 Micron, 12" Adhesive Back Disc (Pk/5)
50-30175 Diamond Lapping Film, 6 Micron, 12" Adhesive Back Disc (Pk/5)
50-30180 Diamond Lapping Film, 3 Micron, 12" Adhesive Back Disc (Pk/5)
50-30185 Diamond Lapping Film, 1 Micron, 12" Adhesive Back Disc (Pk/5)
50-30190 Diamond Lapping Film, 0.5 Micron, 12" Adhesive Back Disc (Pk/5)
50-30195 Diamond Lapping Film, 0.1 Micron, 12" Adhesive Back Disc (Pk/5)



Extended Information:

This product can be used with grinders and polishers offered by Allied and other manufacturers. Browse our machines >>
