Individual Force Sample Holders for PH-3 Power Head

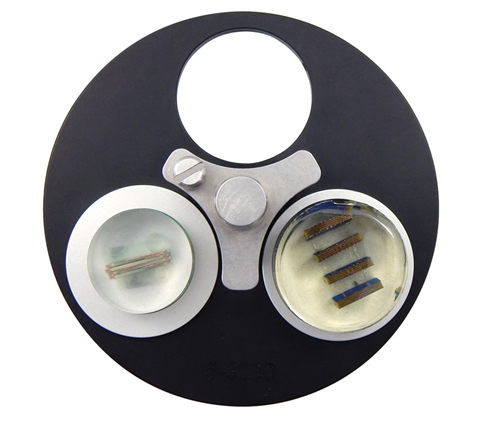

Individual Force functionality allows one or more samples to be prepared simultaneously. The advantage of individual preparation is that it allows removal of any number of samples from the grinding/polishing operation without affecting balance of the system. It is also ideal for applications where small geometry and site-specific cross-section requirements make alignment of more than three (3) samples to a common plane extremely challenging.

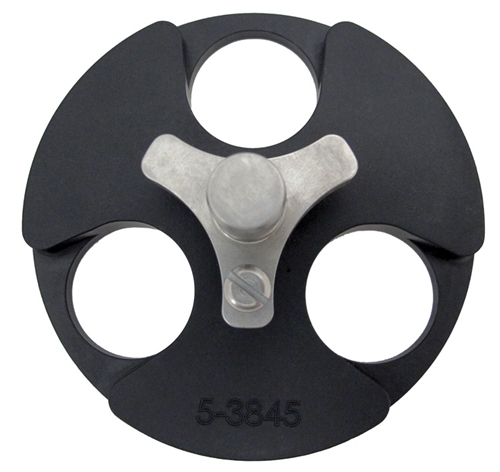

Variable Diameter Mount Sample Holders utilize spacer rings for specific diameter mounts. Rings can be mixed or matched for maximum versatility. The three (3) position holder is used with the PH-3™ power head and has 40 mm openings. Rings are sold individually.
