Consumables > Microscopes & Imaging > Equipment Accessories > LED Illumination Accessories >

LED Illumination Systems

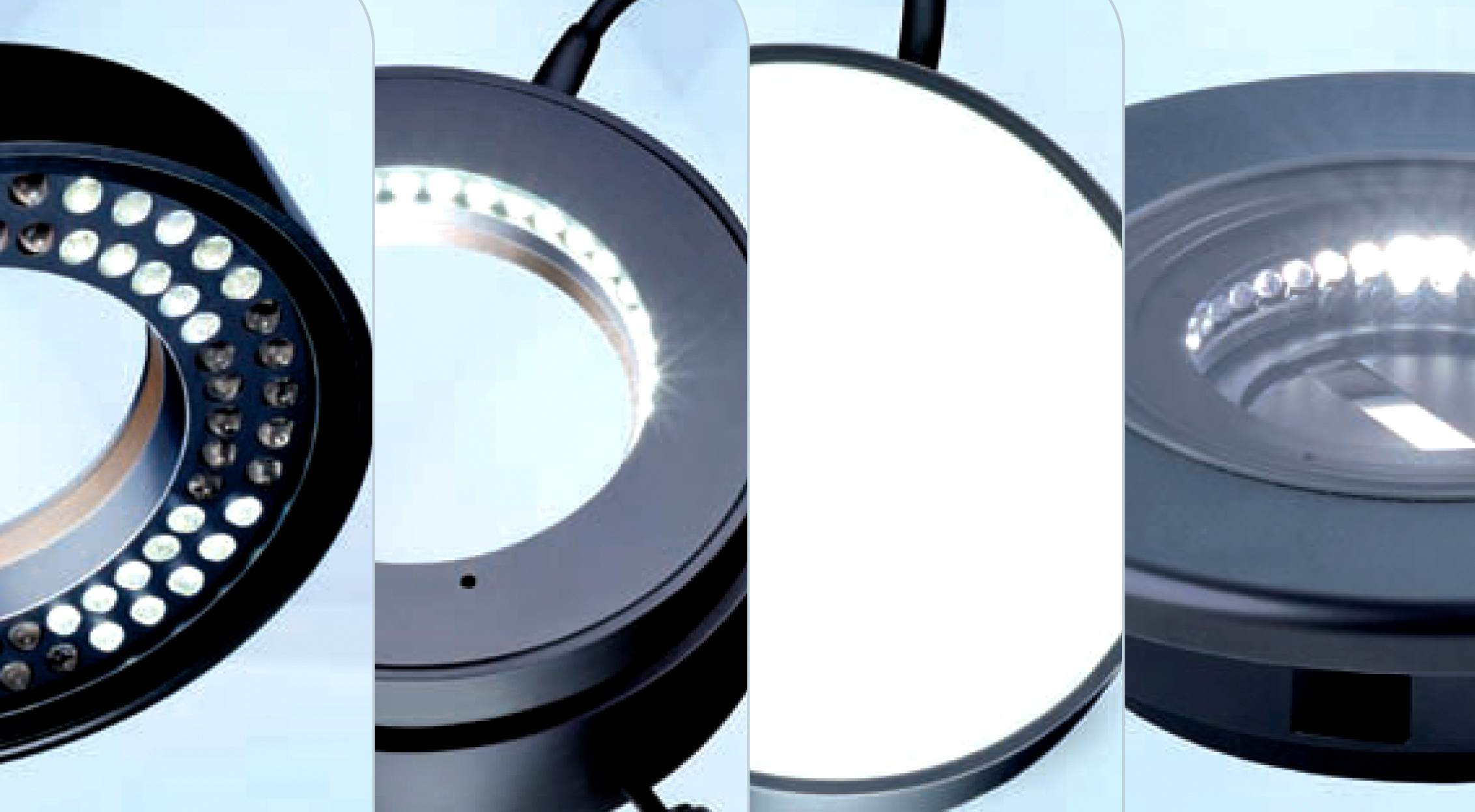

Employing the newest technologies, SCHOTT has integrated high brightness LEDs and controller electronics into two innovative flicker-free illuminators. Both offer continuous dimming with a separate on/off switch.

The EasyLED series is an innovative, self-contained illumination system with the controller electronics built into the illuminator head. This saves countertop space and provides easy and ergonomic operation, directly on the microscope.

The VisiLED illuminators include a control box and offer a wide range of illumination options and controls for more advanced applications.

Features:

White light (daylight) approximately 5,600K
Nearly constant color temperature when dimming
High reliability of LEDs (30,000 operating hours)
Low power consumption
Operates without noise and vibration
Lightweight with thin flexible bundles
Wide range of controllers: DC output (VisiLED)
Direction of light is selectable (12 options) for maximum versatility (VisiLED)

Item#	Item Name
120-600100	EasyLED Spot Light System, 17 mm Diameter, M6 Thd Adaptation, 5V DC, Controller and Power Supply Included (100W-240V)
120-600120	EasyLED Dual Spot Light System, M6 Thead Adaptation, 5V DC, Controller and Power Supply Included (100W-240V)
120-600200	EasyLED Ring Light System, 55-135 mm, 66 mm Diameter, 12V DC, Integrated Controller, 100W-240V, Included
120-600400	EasyLED Transmitted Light Stage System
120-600600	EasyLED, Polarizer for Spot Light System
120-400000	VisiLED, MC 1500 Multiple Controller
120-400010	VisiLED, MC 750 Controller
120-400225	VisiLED Ringlight S80-25 mm Brightfield, D=66 mm, Working Distance 25-50 mm, for Plan Apochromat S and Achromat S 1.5x
120-400255	VisiLED Ringlight S80-55 mm Brightfield, D=66 mm for Use with Plan Apo S 0.63x, PlanApo S 1x, Plan S 1x, and Achromat S 1x
120-400300	VisiLED Ringlight S 40-10 Darkfield, D=66 mm
120-400350	VisiLED, Transmitted Light Stage, Darkfield
120-400400	VisiLED, Transmitted Light Stage, Brightfield
120-400550	VisiLED Ringlight Polarizer Set
120-400570	VisiLED Ringlight Diffuser

Extended Information:

This product can be used with stereomicroscopes offered by Allied and other manufacturers Browse our machines >>
