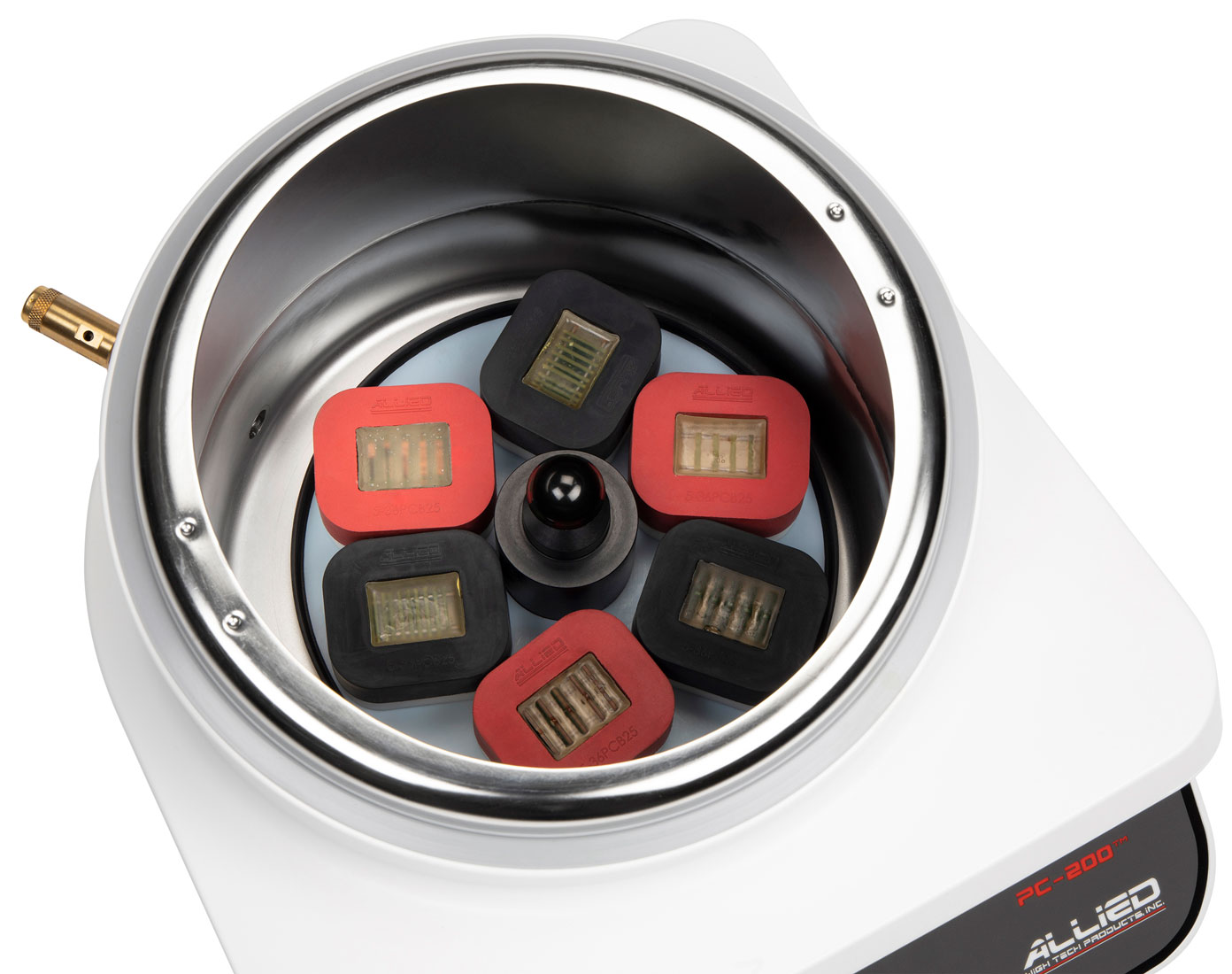

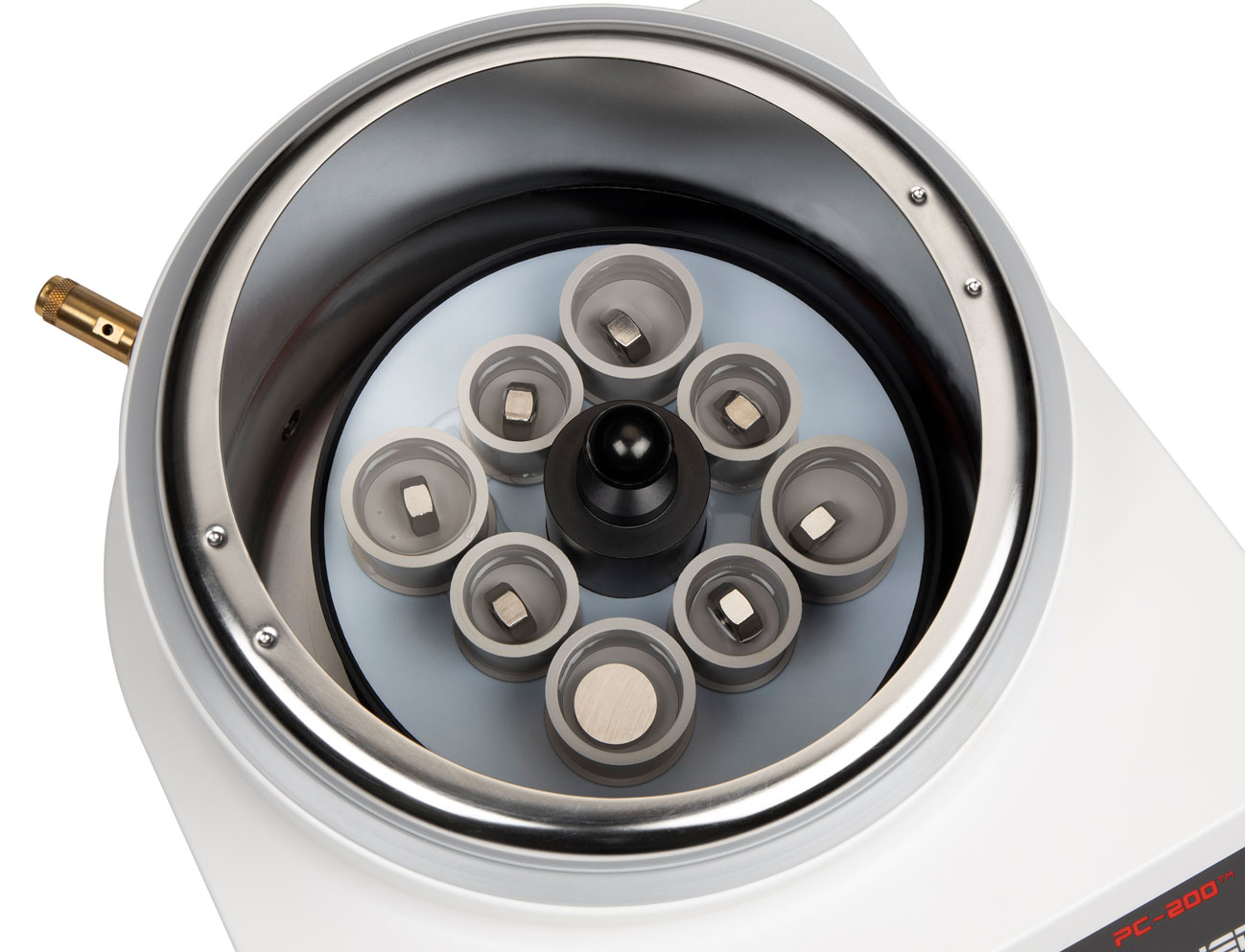

The PC-200™ is a large volume pressure chamber for cold mounting with acrylic and epoxy. With an 8" opening and 7.5" depth, this pressure chamber accommodates oversized silicone mounting cups, a large quantity of round cups, or multiple PCB molds.

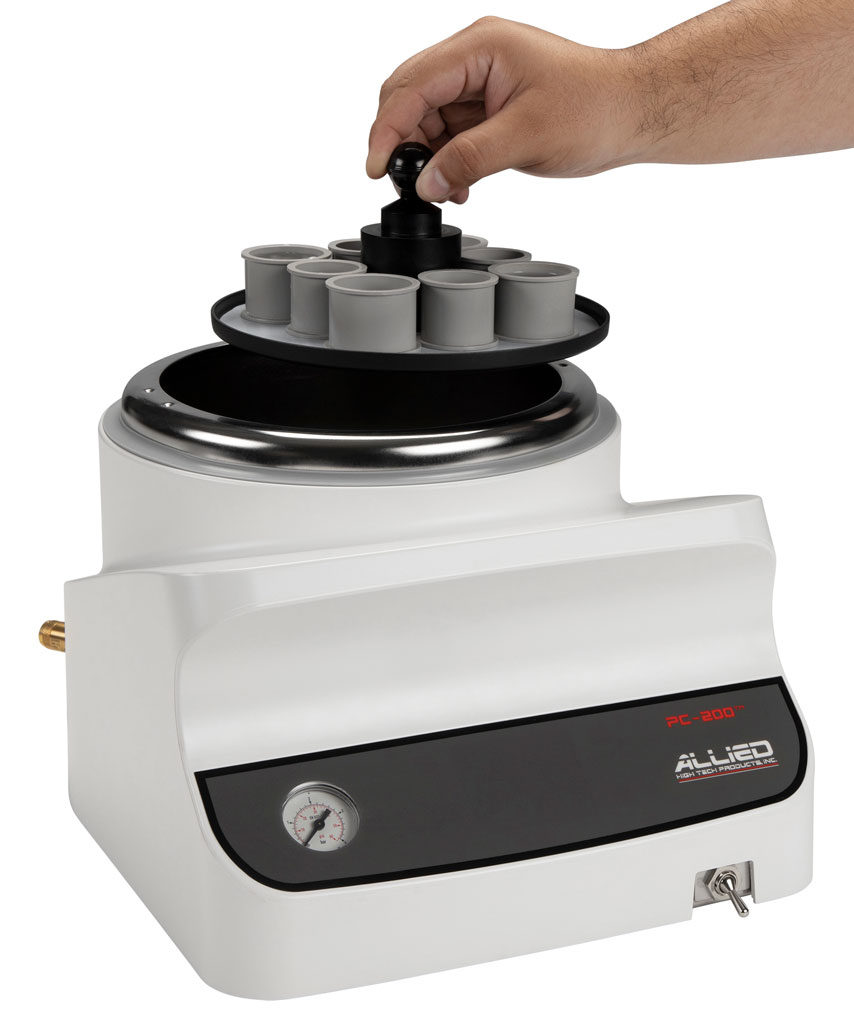

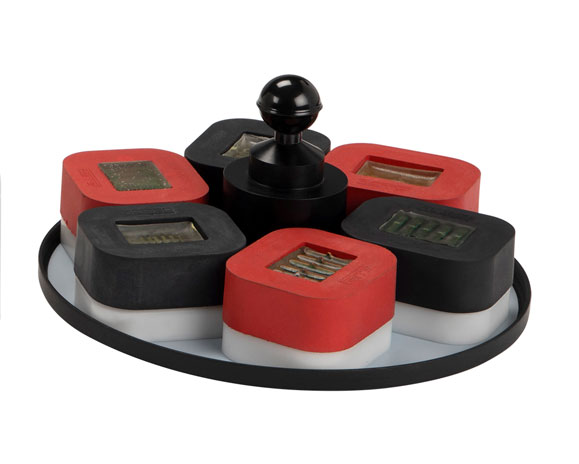

The process of loading the PC-200™ pressure chamber with freshly poured molds is made easier with the stacking tray. The diameter of the tray easily fits into the chamber opening. The bottom of the tray is Teflon® for easy cleanup of spilled mold resin (acrylic or epoxy). The design allows for stable stacking of three (3) trays into the PC-200.
Brochure
Features
| Supply pressure, min/max: 43/145 PSI (3/10 bar) (hose not included) | Inlet: ¼” ID or 6 mm depending on region (8 mm barb with 6 mm (ID) compression nut) | |
| Regulated, nominal operating pressure: 29 PSI (2 bar) | Maximum operating pressure: 40 PSI (2.8 bar) | |
| Overall Dimensions: 12" H × 16" D × 12" H (300 × 400 × 300 mm) | Inside height: 7.5" (190 mm) | |
| Weight: 19 lb. (8.6 kg) | One (1) year warranty | |
| Designed & manufactured by Allied in the USA |
| Item # | Description | |
|---|---|---|
| 175-10050 | Click to Enlarge » | PC-200™ Pressure Chamber for Cold Mounting Resins: includes one (1) PC-200™ Stacking Tray (#175-10050-T) |
Product Accessories
| Item # | Description | |
|---|---|---|
| 175-10050-T |  Click to Enlarge » |
PC-200™ Stacking Tray |
