  Consumables > Mounting >

PCB Indexing Pins

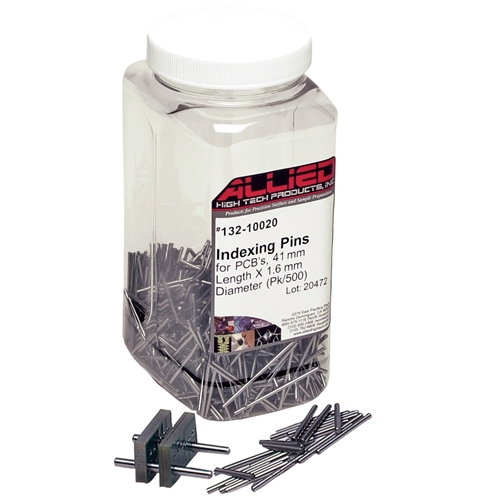

PCB Indexing Pins

Used to align through-holes when encapsulating multiple printed circuit board samples in one mount.


Item# Item Name
132-10000 Indexing Pins for PCB's, 1" Length x 0.094" Diameter (Pk/1000)
132-10005 Indexing Pins for PCB's, 41 mm Length x 2 mm Diameter (Pk/500)
132-10010 Indexing Pins for PCB's, 41 mm Length x 0.094" Diameter (Pk/1000)
132-10015 Indexing pins for PCB's, 2" Length x .094" Diameter, (Pk/500)
132-10020 Indexing Pins for PCB's, 41 mm Length x 1.6 mm Diameter (Pk/500)
132-10025 Indexing Pins for PCB's, 1" Length x 0.077" Diameter (Pk/1000)
132-10030 Indexing Pins for PCB's, 43 mm Length x 2 mm Diameter (Pk/500)
132-10035 Indexing Pins for PCB's, 1.21" Length x 0.078" Diameter (Pk/1000)
132-10040 Indexing Pins for PCB's, 50 mm Length x 2 mm Diameter (Pk/500)
132-10045 Indexing Pins for PCB's, 50 mm Length x 0.094" Diameter (Pk/500)



Extended Information:

This product can be used with mounting systems offered by Allied and other manufacturers. Browse our machines >>
