  Consumables > Sectioning >

Wafering Blades - CBN Bond
Wafering Blades - CBN Bond

More Views:
CBN Bond blades are composed of an inner metal core and an outer rim. The rim consists of either metal or resin mixed with abrasive, cured under high temperature and pressure to bond the matrix together. Metal bonding offers long life and durability, while resin bonding creates less heat, provides better surface finish and is well suited for cutting hard, delicate or brittle materials.
CBN Metal Bond
Recommended for sectioning ferrous metals including steels, iron, cobalt, nickel and lead based alloys. Most commonly used at lower (<1000 RPM) speeds.
CBN Resin Bond
Recommended for sectioning hard steels above Rc 60. Most commonly used at higher (>1000 RPM) speeds.
SAFETY DATA SHEET


Item# Item Name
60-20071 Wafering Blade, CBN Metal Bond, 4" x .012" x .5" (102 x .31 x 12.7 mm)
60-20076 Wafering Blade, CBN Metal Bond, 5" x .015" x .5" (127 x .38 x 12.7 mm)
60-20082 Wafering Blade, CBN Metal Bond, 6" x .020" x .5" (152 x .51 x 12.7 mm)
60-20083 Wafering Blade, CBN Metal Bond, 7" x .025" x .5" (178 x .64 x 12.7 mm)
60-20087 Wafering Blade, CBN Metal Bond, 8" x .030" x .5" (203 x .76 x 12.7 mm)

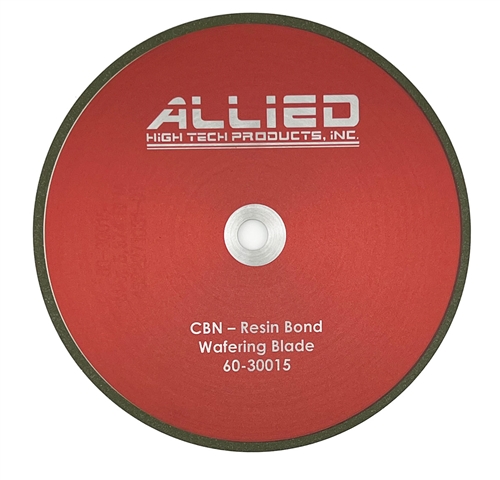

60-30005 Wafering Blade, CBN Resin Bond, 5" x .020" x .5" (127 x .51 x 12.7 mm)
60-30010 Wafering Blade, CBN Resin Bond, 6" x .020" x .5" (152 x .51 x 12.7 mm)
60-30015 Wafering Blade, CBN Resin Bond, 7" x .025" x .5" (178 x .64 x 12.7 mm)
60-30020 Wafering Blade, CBN Resin Bond, 8" x .030" x .5" (203 x .76 x 12.7 mm)



Extended Information:

This product can be used with sectioning machines offered by Allied and other manufacturers Browse our machines >>
