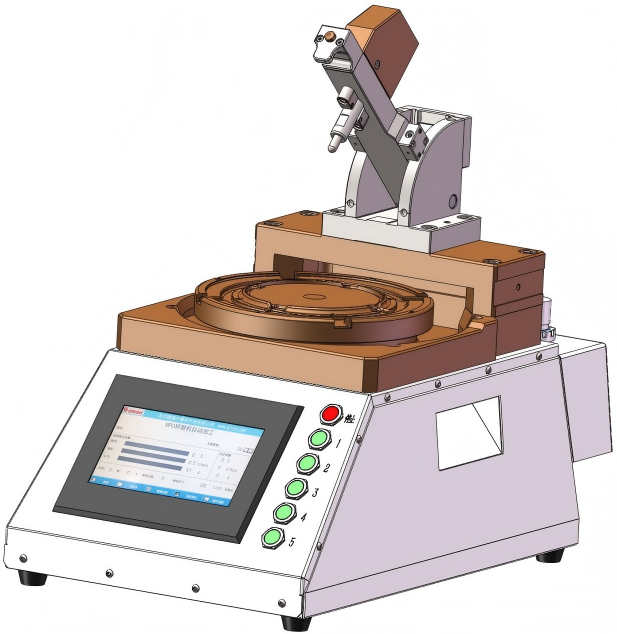

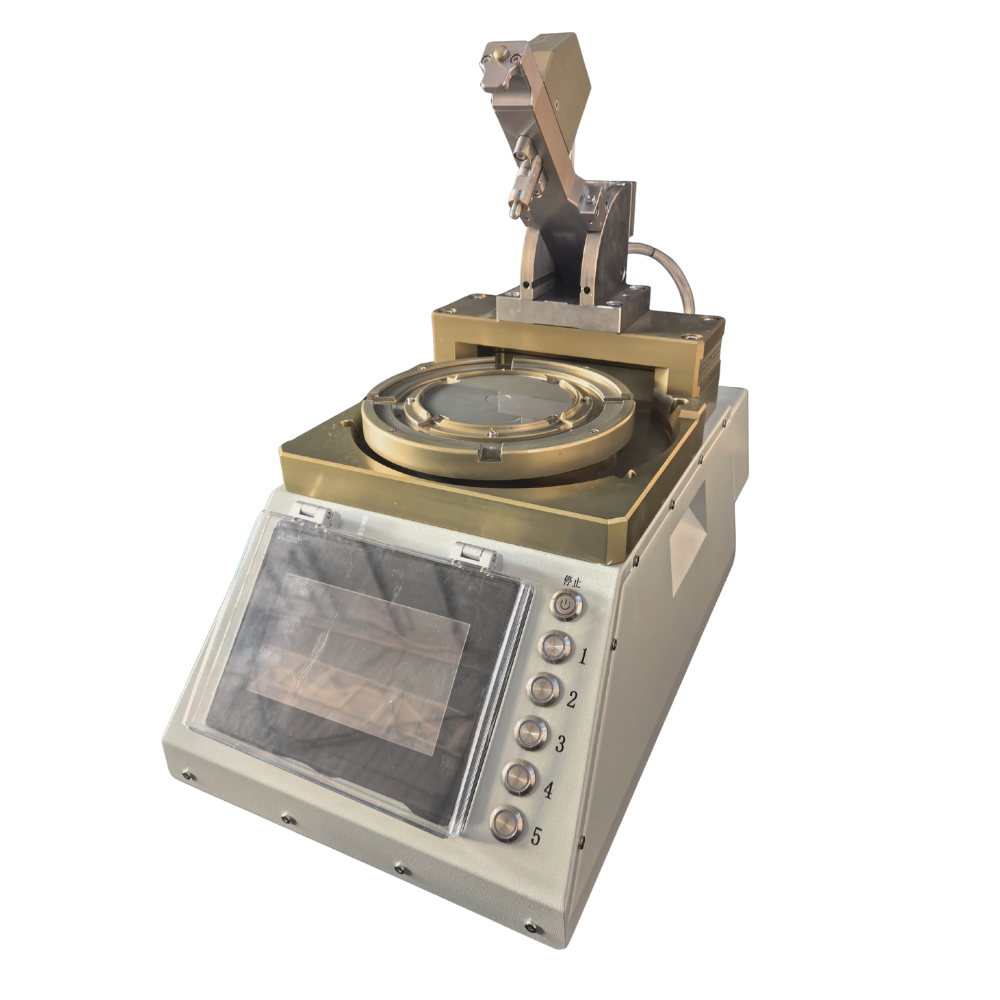

MPO/MTP Fiber Polisher GFC-40
The GFC-40 center pressure polishing machine adopts PLC control and can internally store 6 polishing processes corresponding to the processing of 6 types of products. Each polishing process is divided into 5 grinding steps, allowing for individual setting of polishing time, speed, soft-start time, pressure, polishing disc quantity/time compensation function, and a counting function for the number of processed discs in each step of the polishing process. The detailed setting of polishing process parameters enables more precise control of equipment operation, effectively improving the polishing quality of ferrules.
Within the GFC management system on the control screen, parameters can be manually adjusted to calibrate the pressure applied by the pressure column, enhancing the pressure control accuracy of the polishing machine. Additionally, a equipment maintenance reminder function has been added; once the maintenance cycle is set, timely reminders are provided. The GFC-40 center pressure polishing machine is suitable for MPO/MTP fiber optic ferrule polishing, achieving a pass rate of over 95% for end-face inspection and 3D parameters.
-
Fast and safe logistics
-
Get samples for free
Highlights:
Inverted pyramid structure for unmatched stability and smooth, long-term operation.
Lightweight aluminum alloy build—durable, corrosion-resistant, and easy to handle.
Central pneumatic pressurization with flexible multi-angle arms (0° polishing, 45°/90° for easy workpiece swaps). Stable, controllable pressure every time.
Specifications
-
Specifications
Item Parameter / Specification Dimensions 350mm * 250mm * 265mm Net Weight 45 Kg Power Requirements AC 220V / 50Hz Air Source Requirements Pressure: 0.6 - 0.9 MPa Polishing Pressure 0 - 10 Kg Total Power 125 W Operation Mode Touch Screen + Buttons Polishing Area Diameter 5 inches (Suitable for φ127mm grinding paper) Polishing Disc Speed 30 - 200 rpm Polishing Disc Run-out ≤ 0.01 mm Polishing Time Setting 0 - 9999 S Program Capacity Built-in 6 groups (Customizable as required) Steps per Program Pre-set 5 steps; adjustable according to actual needs
