Lapping Film

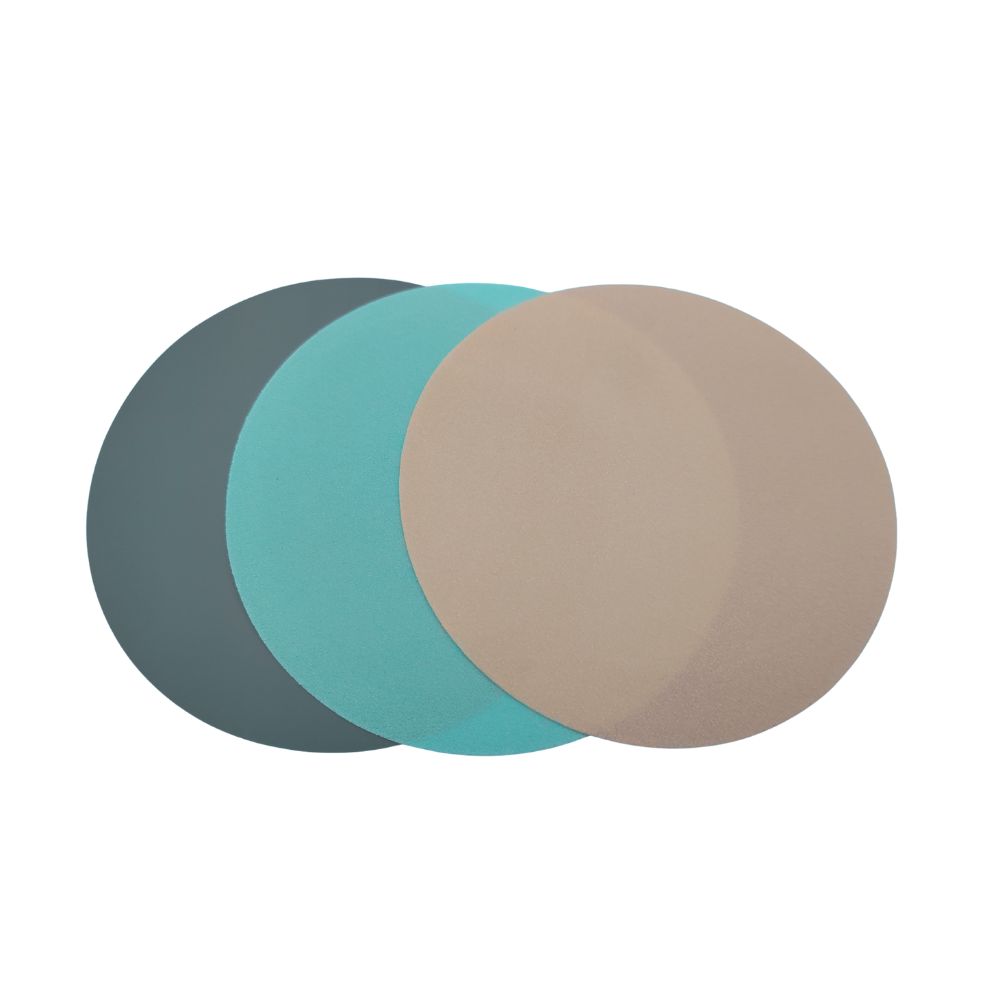

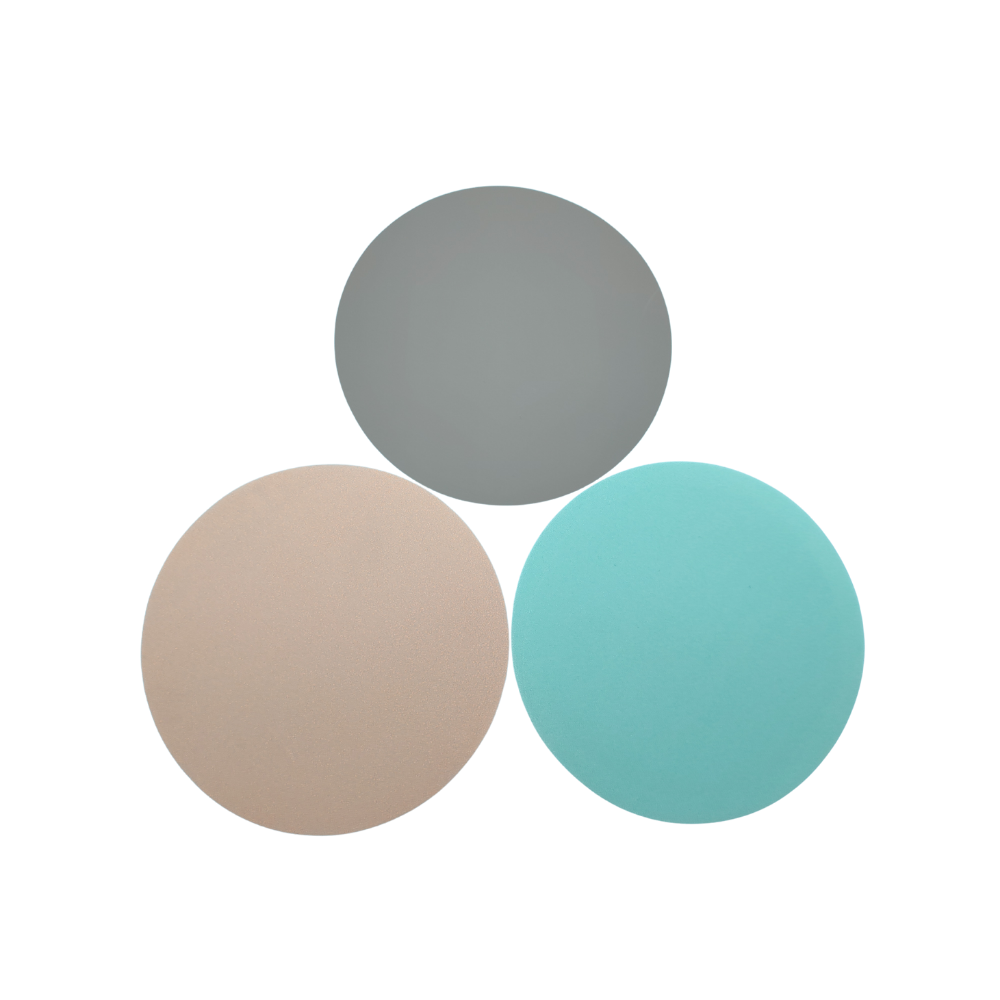

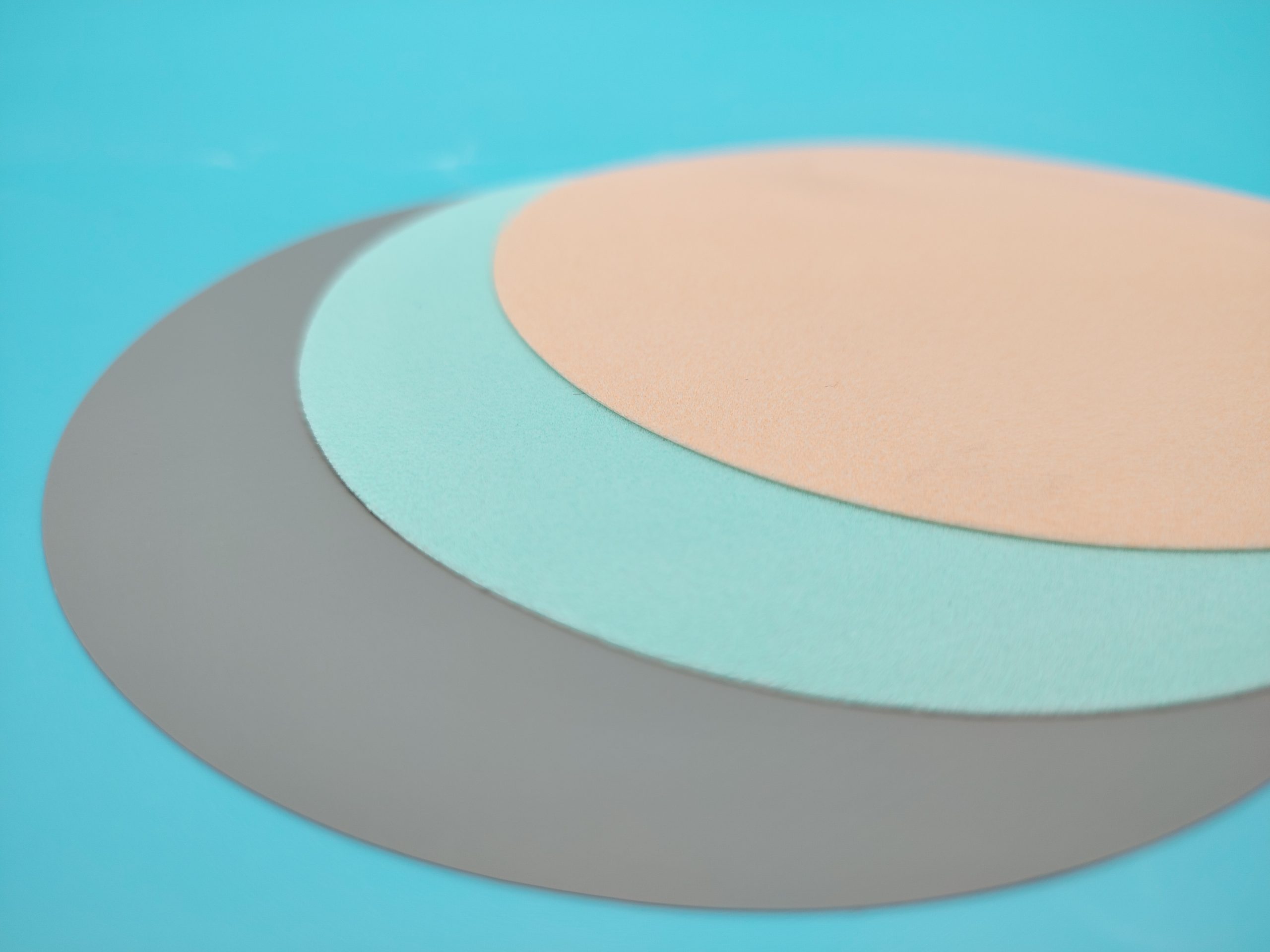

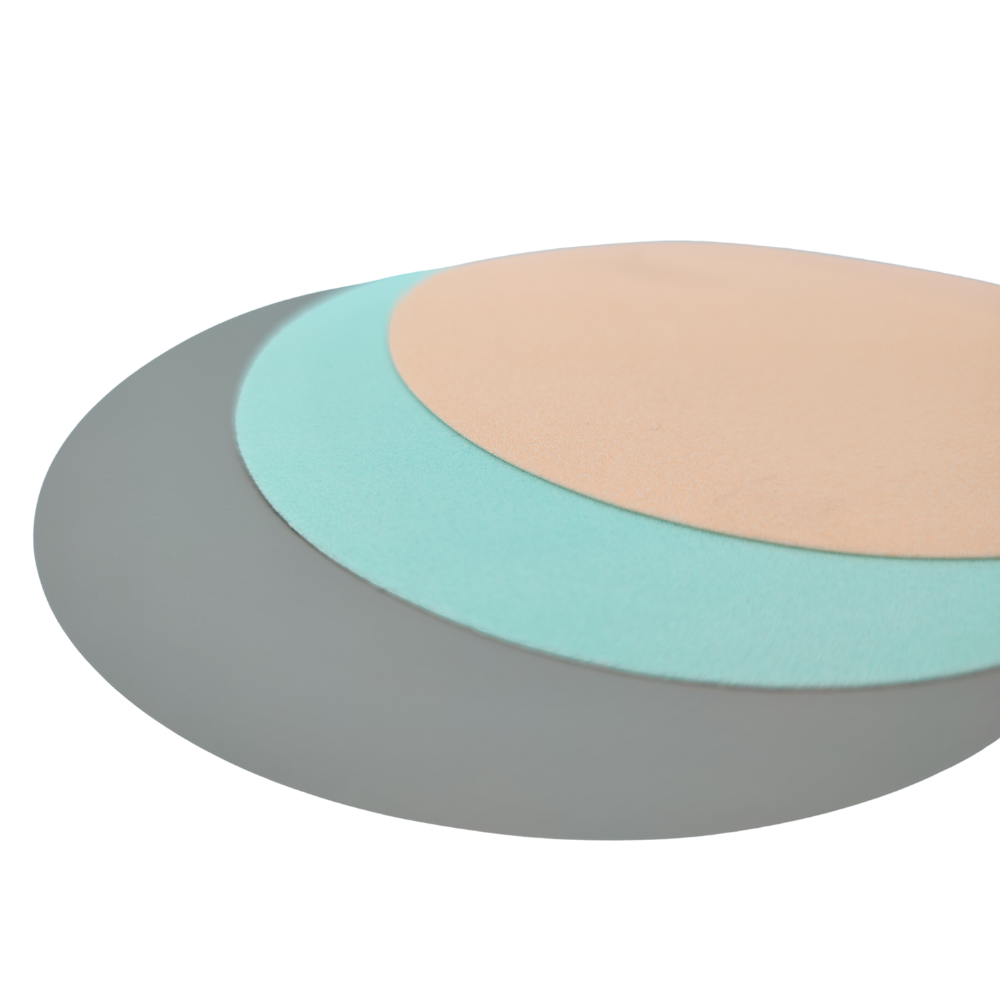

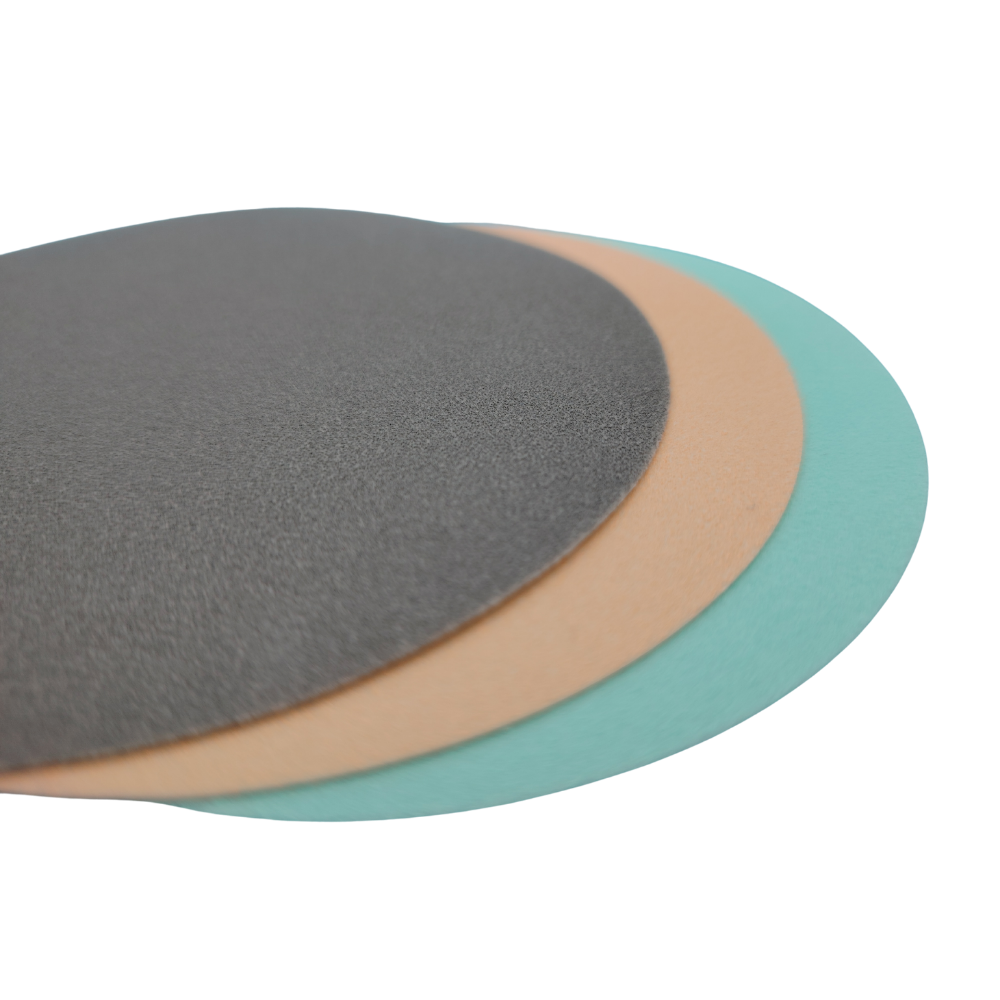

MPO/MTP Precision Flocked Polishing Film
GRISH precision flocked polishing film is manufactured using advanced coating technology, where selected micron-level abrasives are evenly dispersed with a new polymer binder and then coated onto a film- based flocking substrate. This product only requires water as the polishing medium and is suitable for the polishing of MPO/MTP fiber optic connectors.
-
Fast and safe logistics
-
Get samples for free
About Precision Flocked Polishing Film
- Good softness and elasticity, can effectively avoid scratches.
- Only need water as polishing medium, easy to clean.
- The fiber height is controllable when polishing MT fiber optic connectors.
- High pass rate, effectively reducing production costs.
Specifications
-
Specifications
Model SC3 AO1 CO1 Base Thickness 50μm（2mil） 50μm（2mil） 50μm（2mil） Flock Nylon Nylon Nylon Abrasive Silicon Carbide Aluminium Oxide Cerium Oxide Grit Size/µm 3 1 1 Color Gray Green Orange Standard Size Disc: Φ110mm、Φ127mm、Φ203mm (8inch), PSA is availabl Sheet: 114mm*114mm、152mm*152mm (6inch), PSA is available Other sizes are customizable.
