Duramin-600 robust universal hardness tester | Struers.com
A robust Vickers, Knoop, Brinell and Rockwell semi- and fully-automatic hardness testing machine, the Duramin-600 has a large load range and is tough enough to withstand the harshest production environments.
Duramin-600
Robust and automatic universal hardness testing
Duramin-600 – Semi-Automatic Universal Tester
Methods: Vickers, Knoop, Brinell and Rockwell hardness testing
Load ranges: 1-250 kgf, 3-750 kgf, 5-3000 kgf
Semi-automatic universal tester
Robust load cell-based universal tester
Automatic six-position turret
Ring-light with dark field illumination for the testing of soft metals
Optional motorized Z-axis for large samples

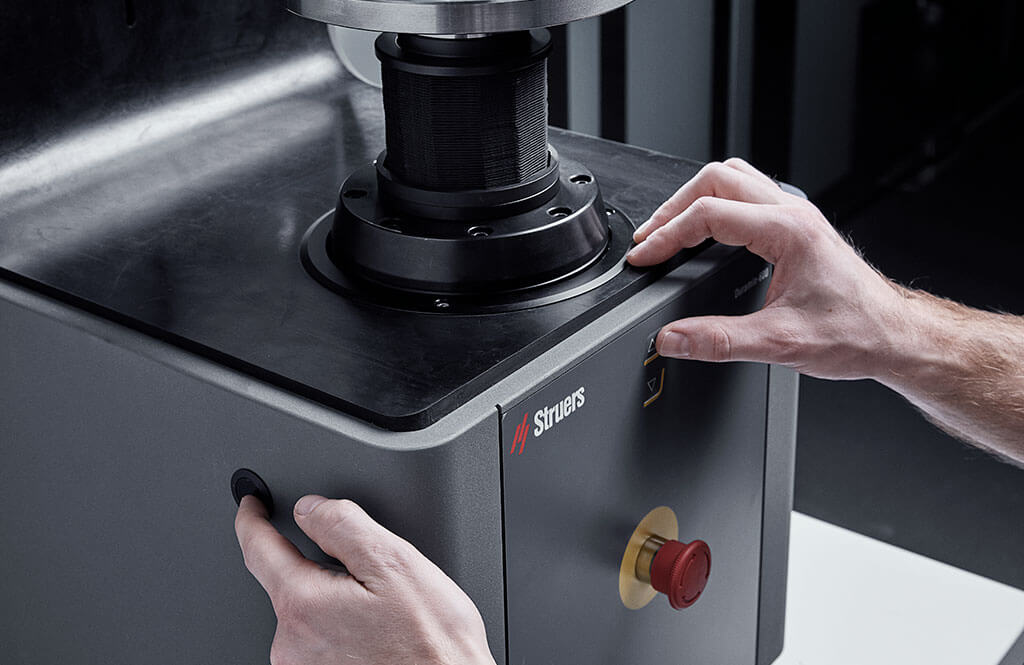

Embedded PC, operated by mouse or touchscreen

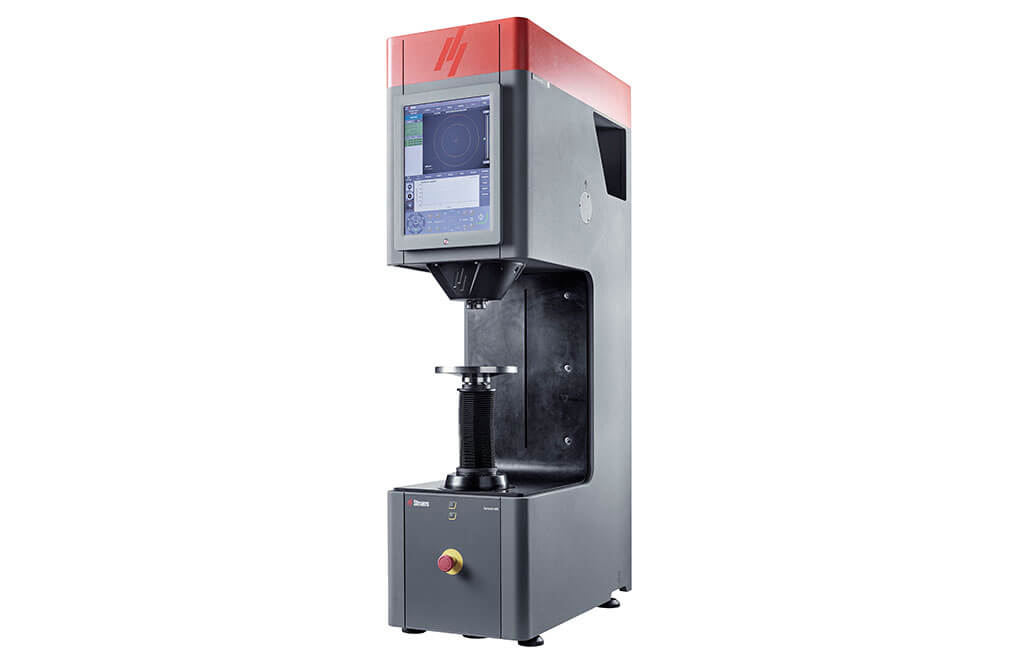

Duramin-600 is designed to survive the toughest production environment. It is a universal hardness tester, operated by a robust touchscreen, and comes available in three load ranges and with an optional motorized Z-table for larger samples.
How does Duramin 600 support your Hardness Testing

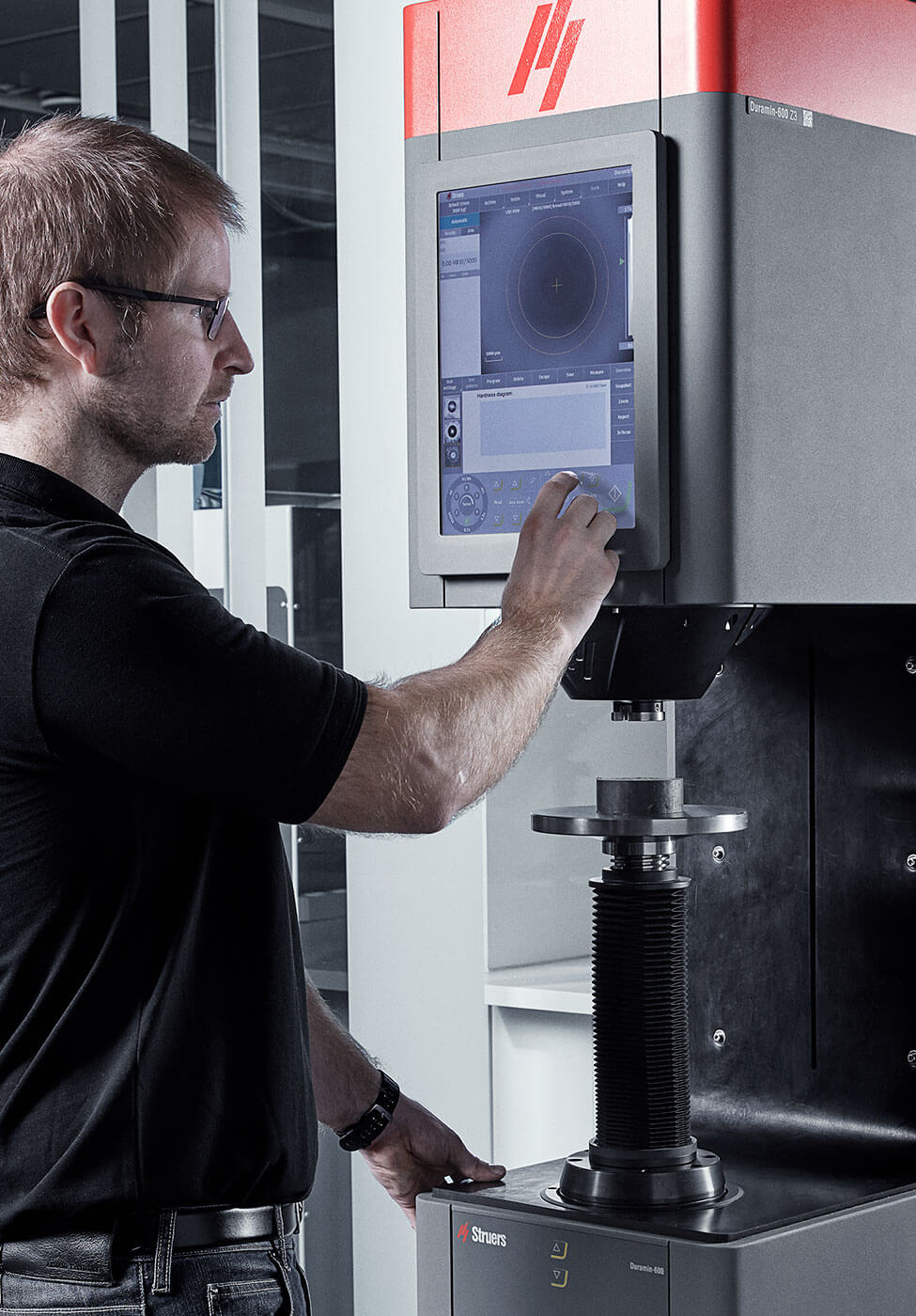

Perfected for the production environment
Designed to last, the Duramin-600 employs industry strength components from the 400 kg frame to the display.Easy to operate

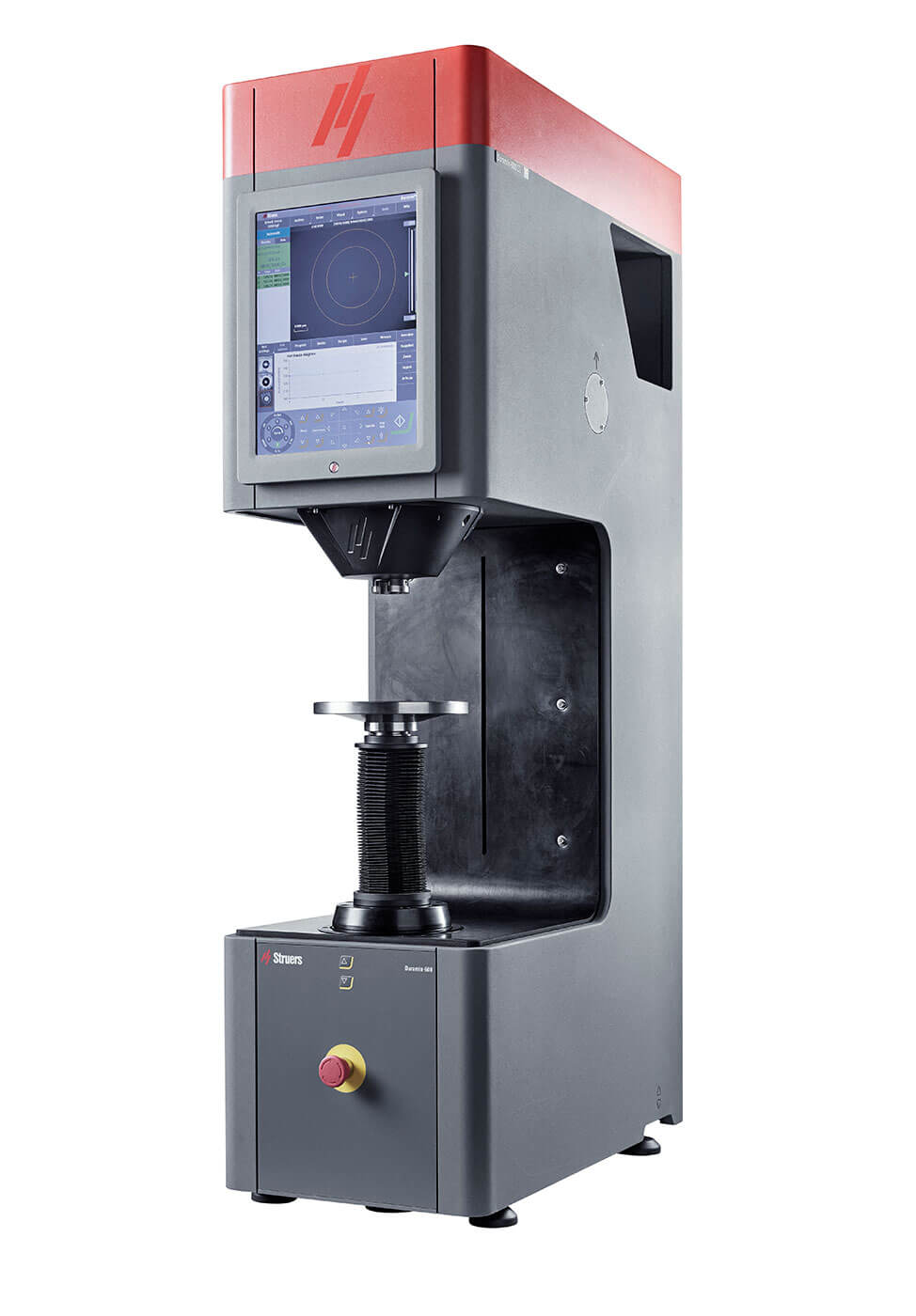

Simple clamping, combined with clean software and a touchscreen, ensure stress-free operating and result reporting.High accuracy

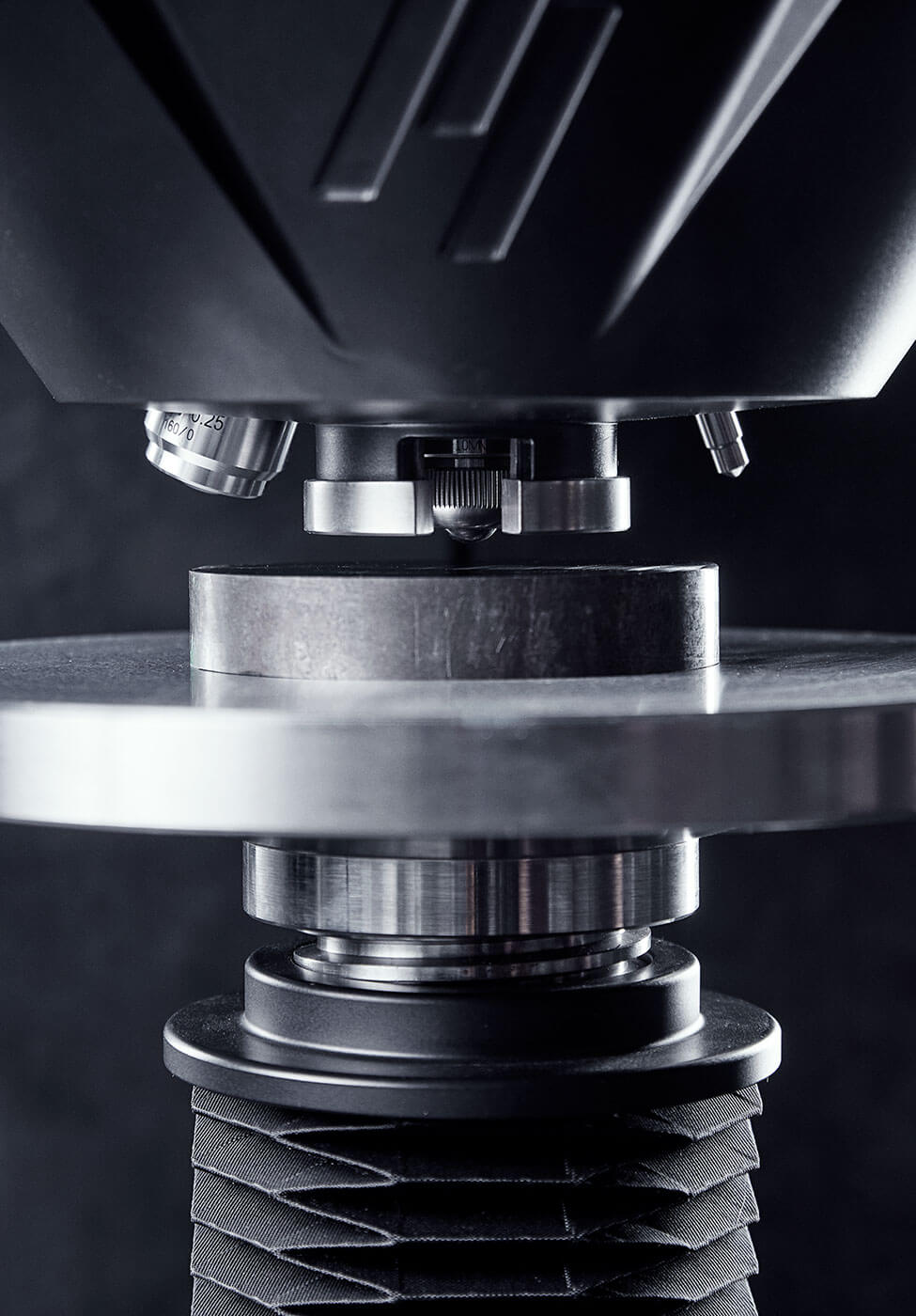

The accurate and repeatable loading system based on load cell technology, combined with advanced software algorithms, ensures specific and repeatable image and hardness evaluation.
Perfected for the production environment
Easy to operate
High accuracy

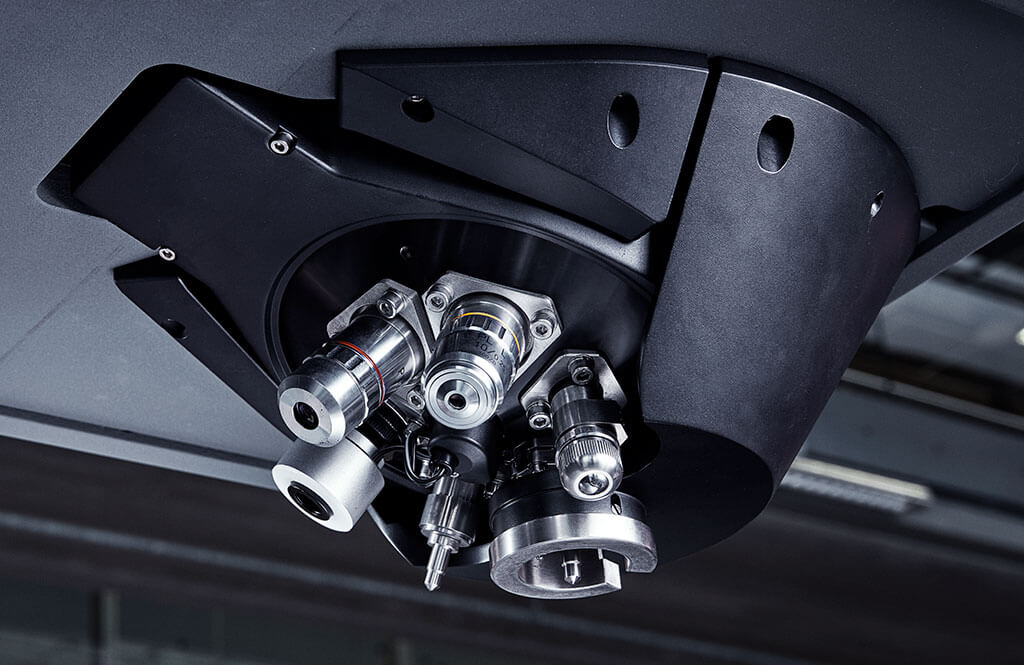

Duramin-600 is available with a six-position automatic turret, facilitating exchange of up to three indenters and three objective lenses. The exchange of indenter and lens runs fully automatically in each model, helping to avoid calibration and potential human errors.
Simple testing

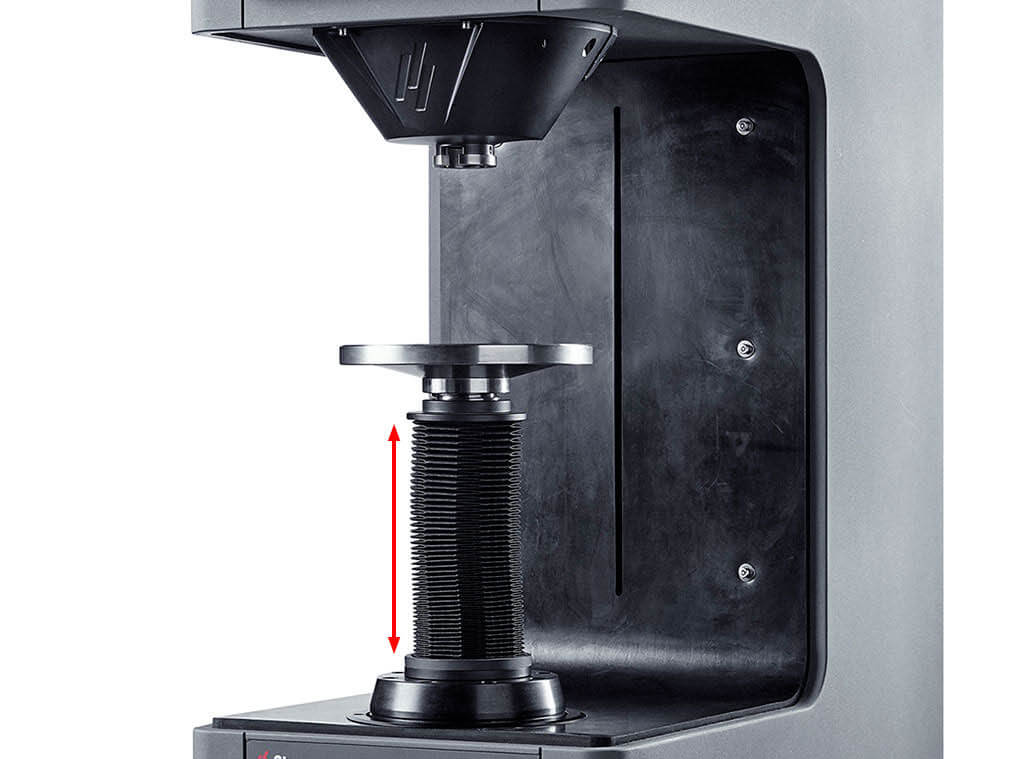

Duramin-600 is available with an optional motorized spindle. This avoids the repetitive manual adjustment of the test anvil.
Motorized Z-axis

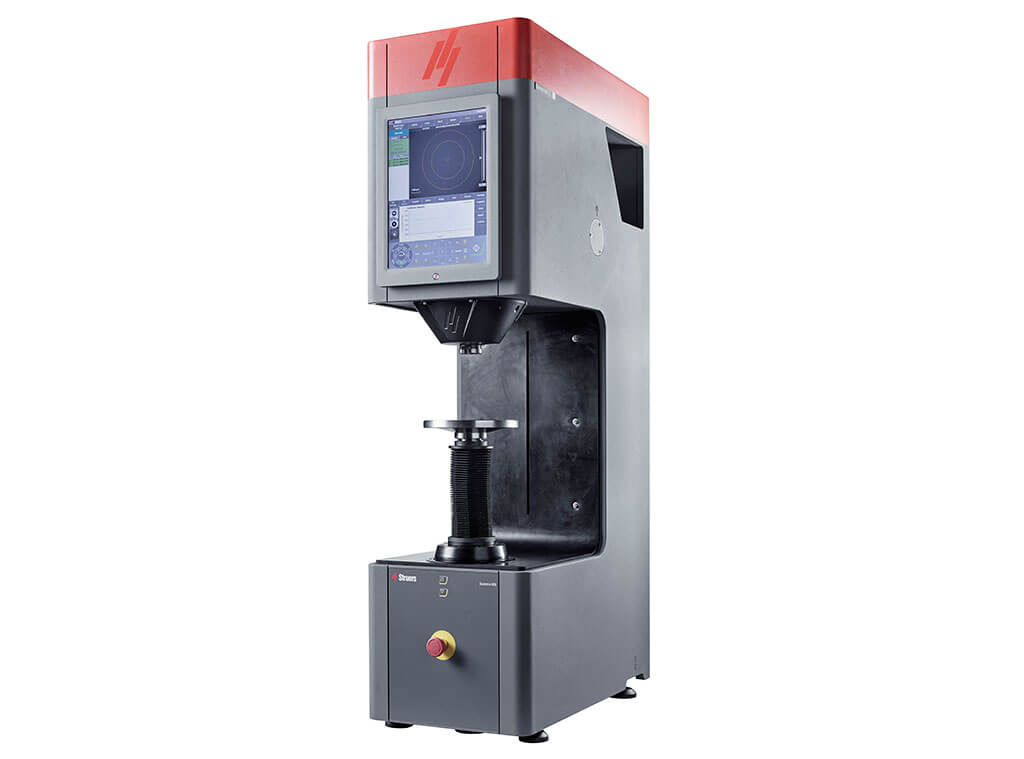

The Duramin-600 is built using a rigid metal frame that is ideal for rough conditions.
Robust frame

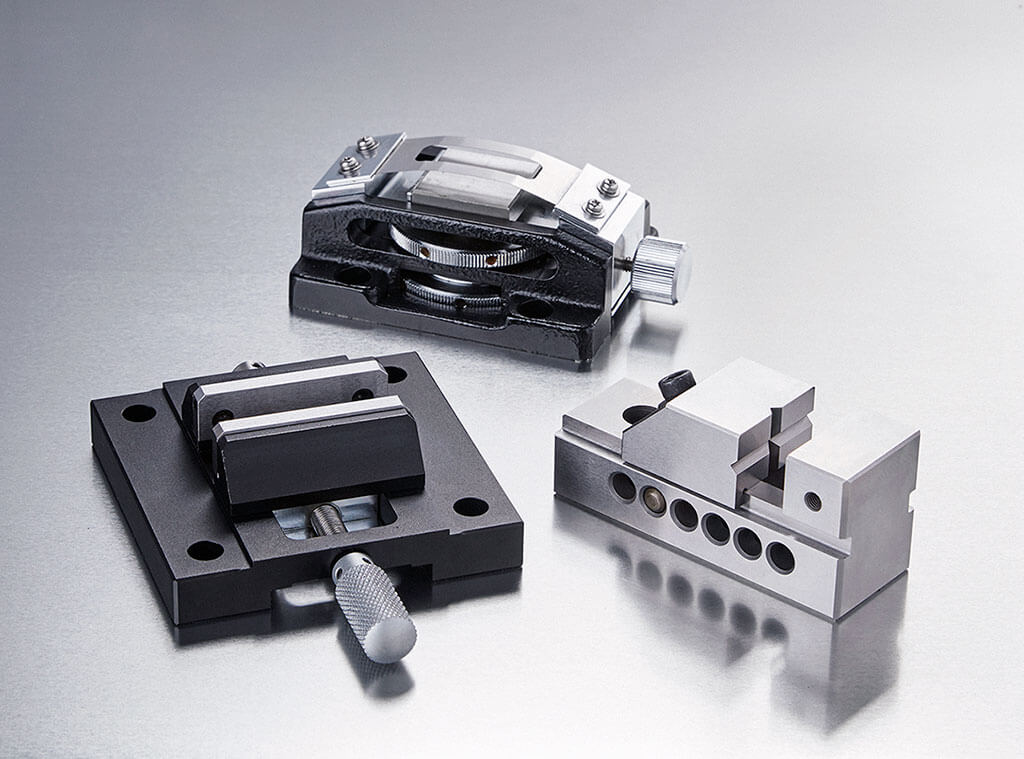

A variety of clamping devices and fixtures are available.
Flexible clamping

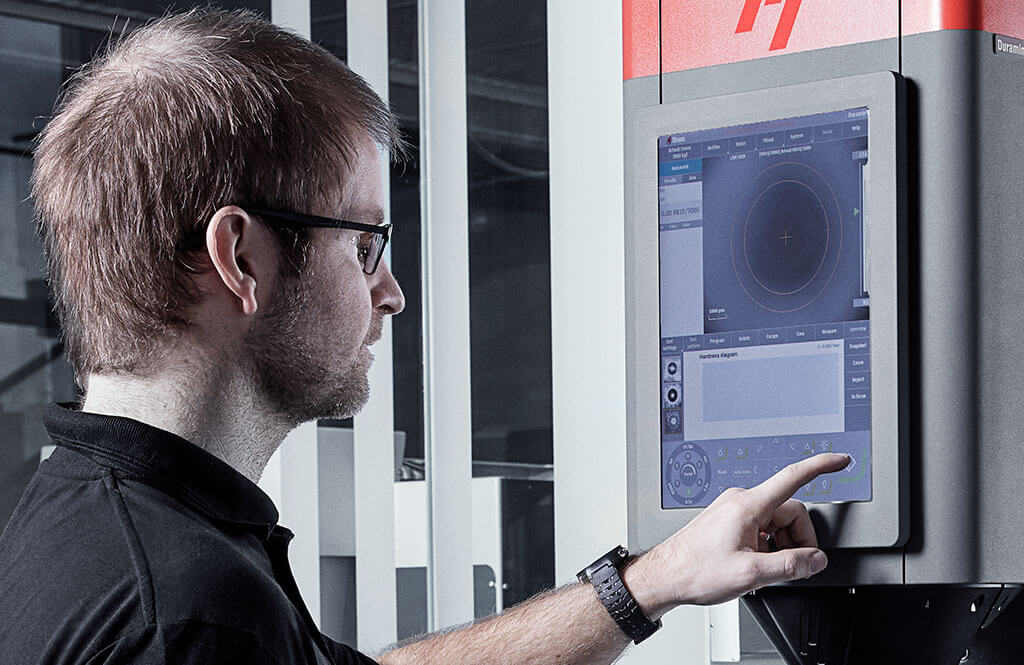

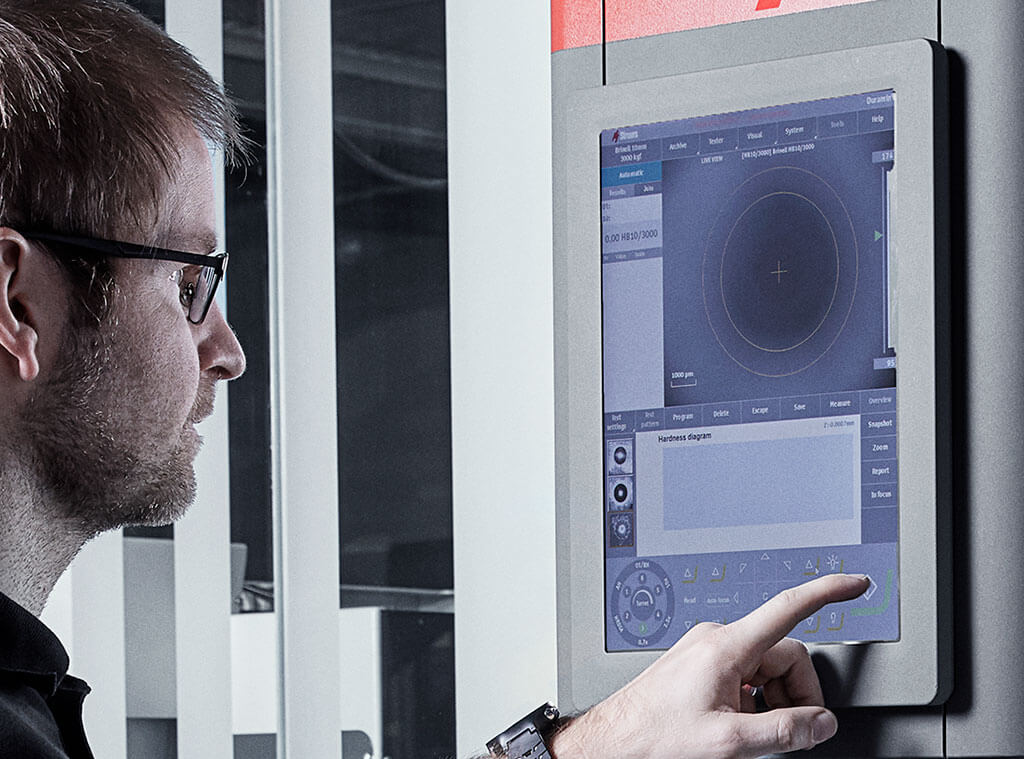

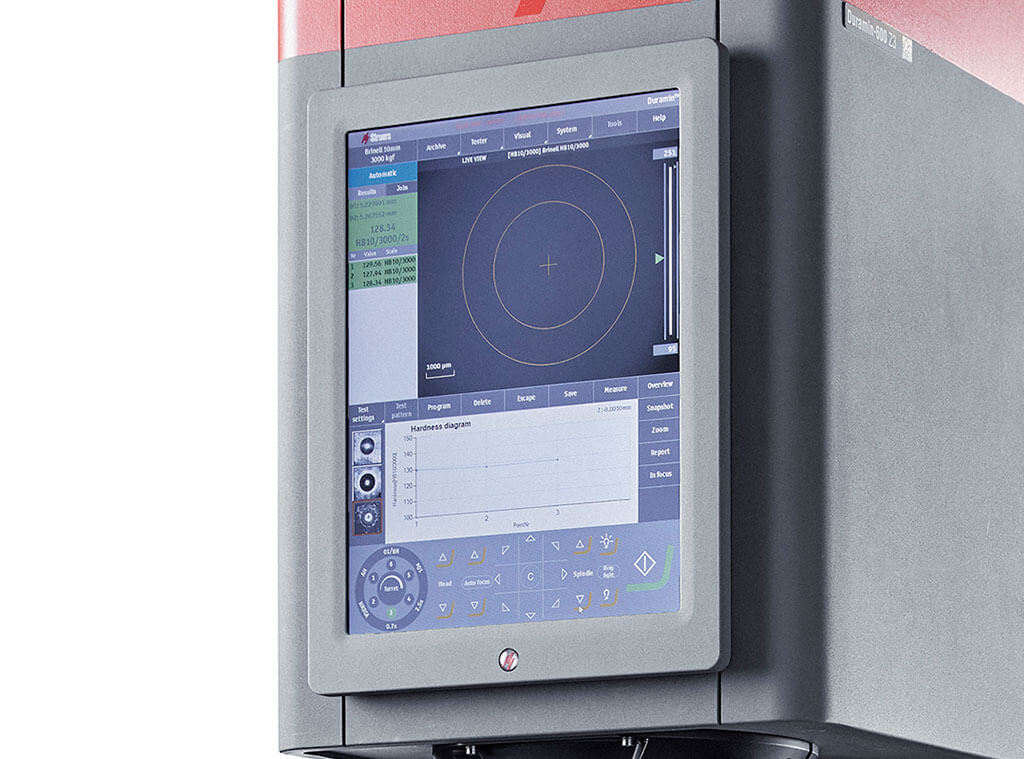

Duramin-600 is operated from a large 15-inch color touchscreen.
Built-in touchscreen

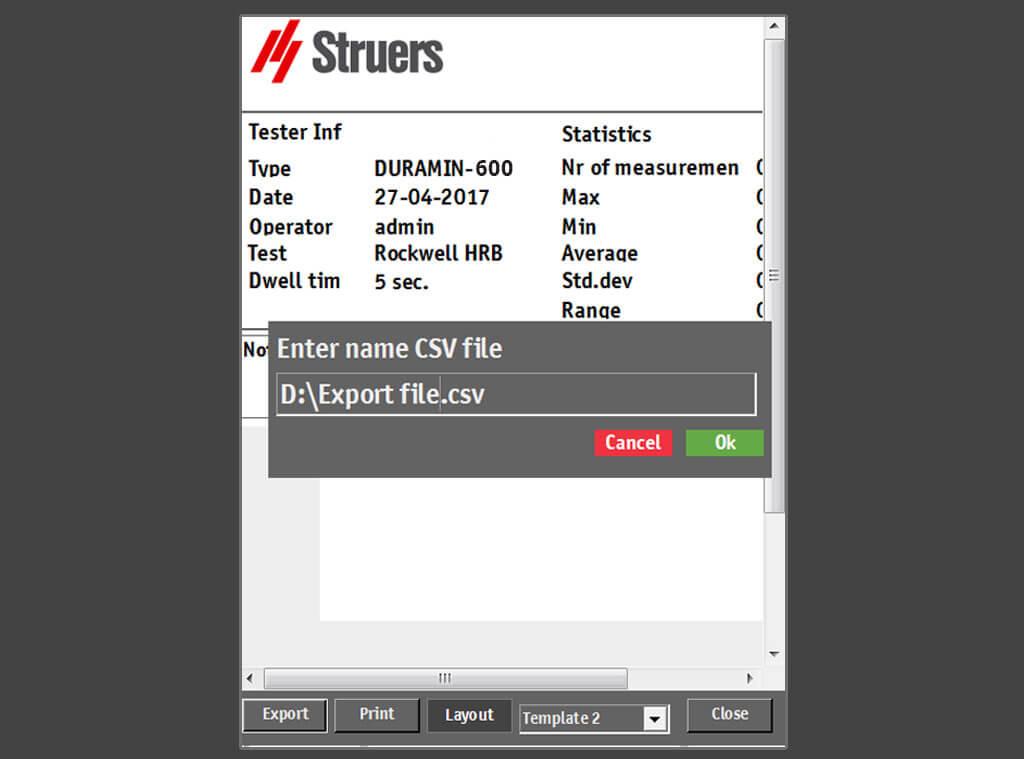

Measurement data can be exported in various formats and saved on a USB stick or network.
Data exporting function

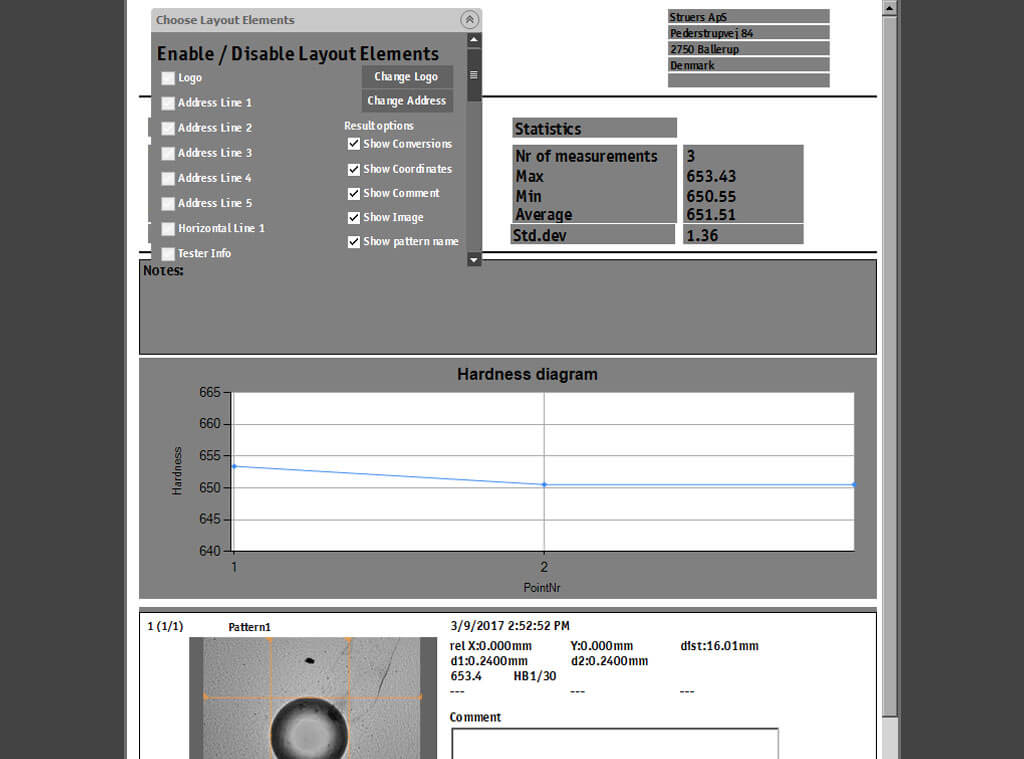

Test reports and measurement data can be easily generated and exported.
Built-in report generator

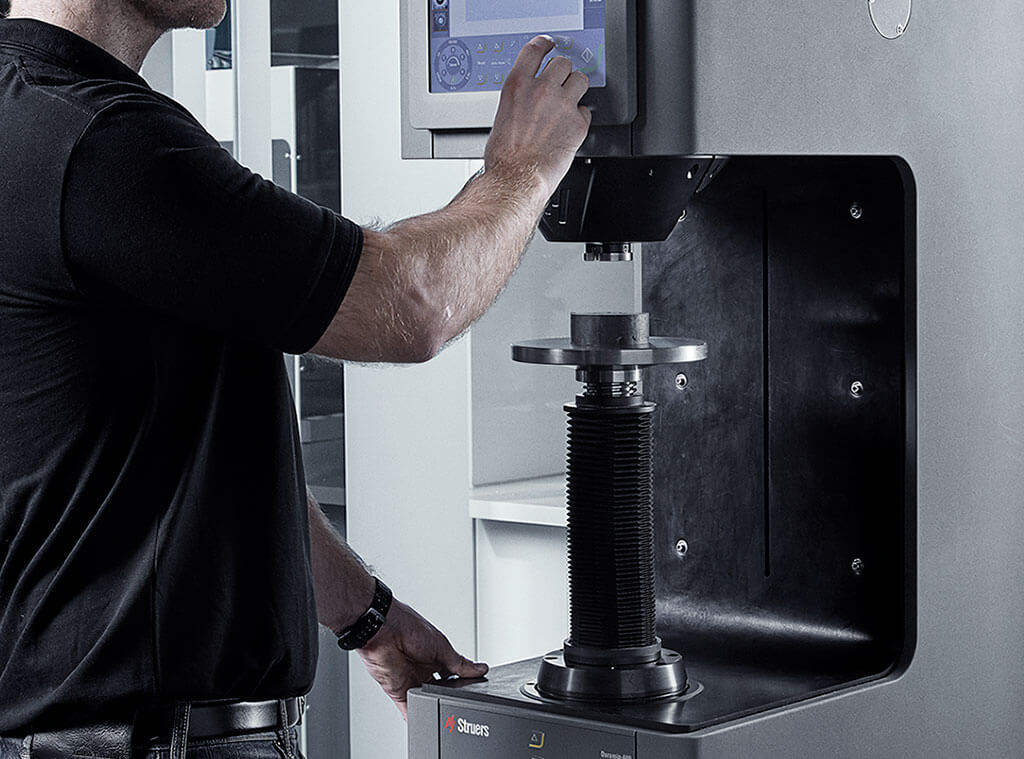

The machine automatically stops in the event of a work piece collision or any unexpected vibration or movement. This prevents damage to indenters and secures safety for operators.
Optimal safety
Facts
Model Types
The Duramin-600 models come with a motorized, six-position turret, automatic illumination adjustment, auto focus, and automatic image evaluation as standard. The maximum sample height is 330 mm, with a throat depth of 260 mm. Duramin-600 is operated via a 15-inch color touchscreen. Objective lenses and indenters are ordered separately. All Duramin-600 M models come with manual Z-axis adjustment. All Duramin-600 Z models come with a motorized Z-axis adjustment.
Duramin-600 M1
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 9.8 N to 2450 N (1-250 kgf).
Duramin-600 M2
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 29.4 N to 7,360 N (3.0-750 kgf)

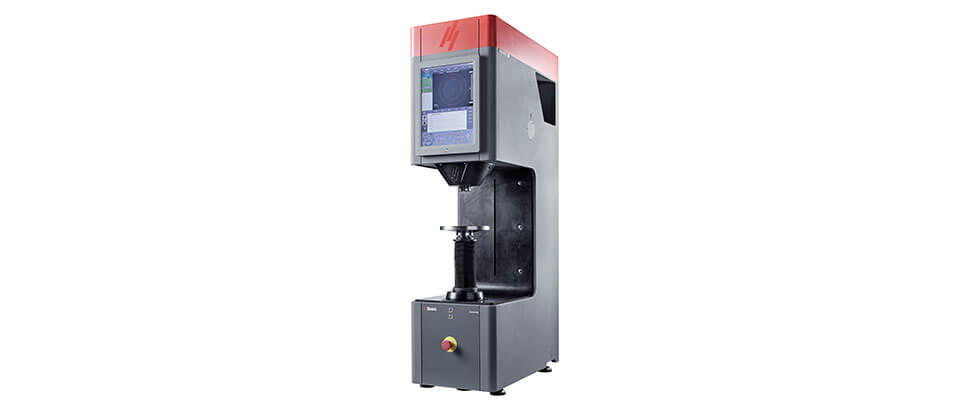

Duramin-600 M3
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 49.1 N to 29,430 N (5.0-3,000 kgf)
Duramin-600 Z2
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 29.4 N to 7,360 N (3.0-750 kgf)
Duramin-600 Z1
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 9.8 N to 2450 N (1-250 kgf).
Duramin-600 Z3
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 49.1 N to 29,430 N (5.0-3,000 kgf)
Technical Data
Technical Data
Struers Technical Data Sheets are designed to help you make the best choice of equipment for your particular purpose. You can find important information such as capacity and performance specifications, dimensions, weight, electrical data, noise levels, ambient conditions, and safety. In many cases you can also obtain an overview of accessories offering higher capacity and performance.
Get your brochure for Duramin-600
Get your brochure for Duramin-600
Get the full introduction, descriptive visuals, and key feature descriptions to help you qualify your choice of equipment. • Explanatory fotos • Key feature descriptions • Technical Data Sheet
Duramin-600 is designed to survive the toughest production environment. It is a universal hardness tester, operated by a robust touchscreen, and comes available in three load ranges and with an optional motorized Z-table for larger samples.
