DuraVista-80
Vickers/Knoop testers with automated repeatability
DuraVista-80 – Fully automatic Micro/Macro Hardness Tester
Methods: Vickers, Knoop, and Brinell hardness testing
Motorized test head with dual displacement system
Fast & flexible eight-position angled turret
Touch focus & positioning laser

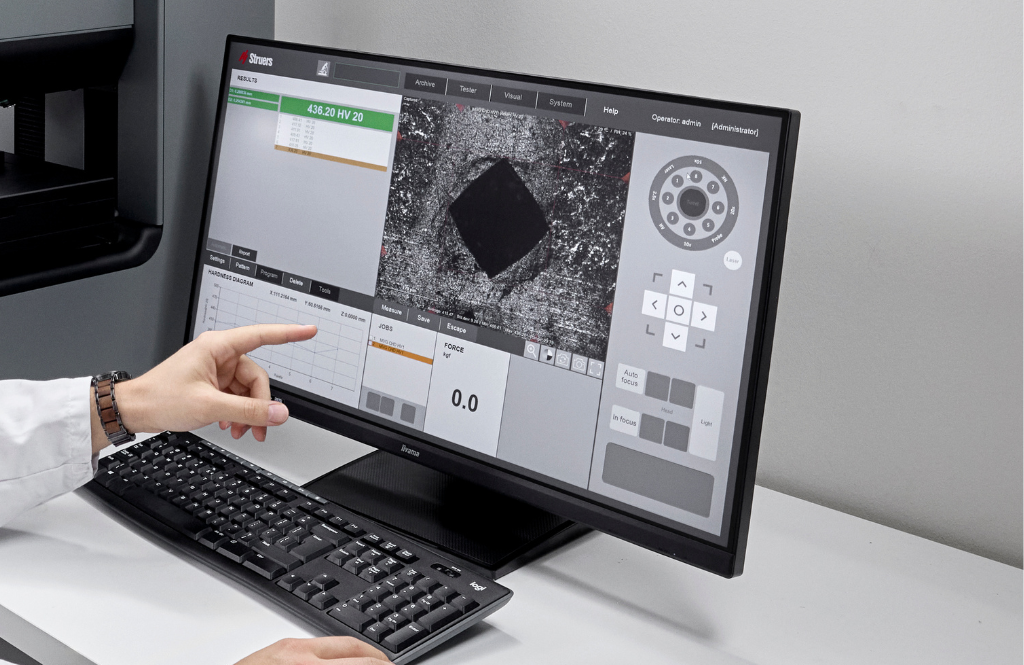

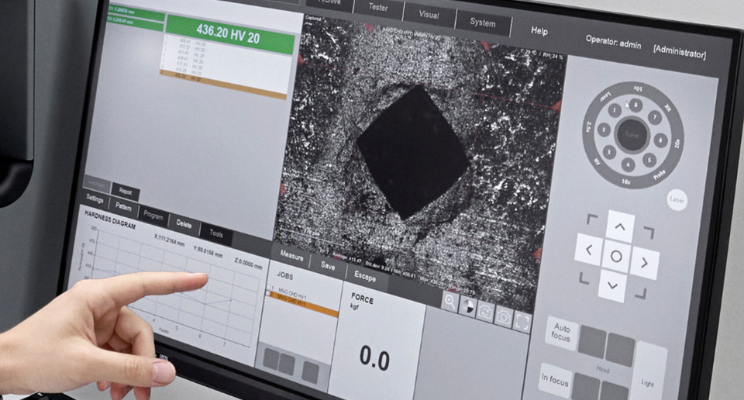

DuraSoft PC-controlled software
Manual or motorized XY-stage
Motorized Z-axis
Anti-collision system
20 Megapixel high-resolution measurement camera
Overview camera option

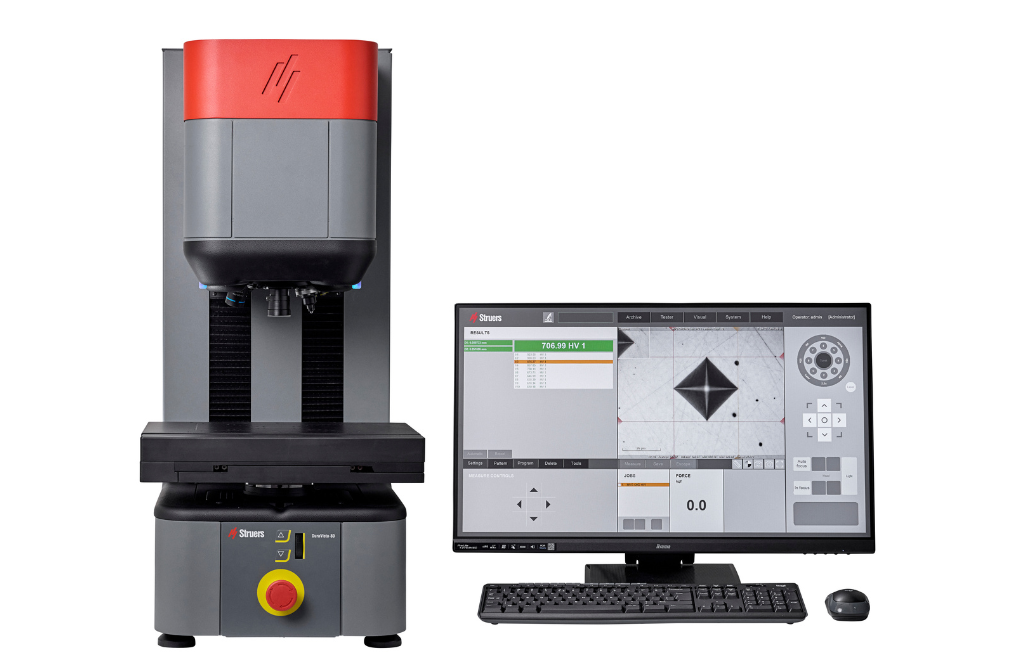

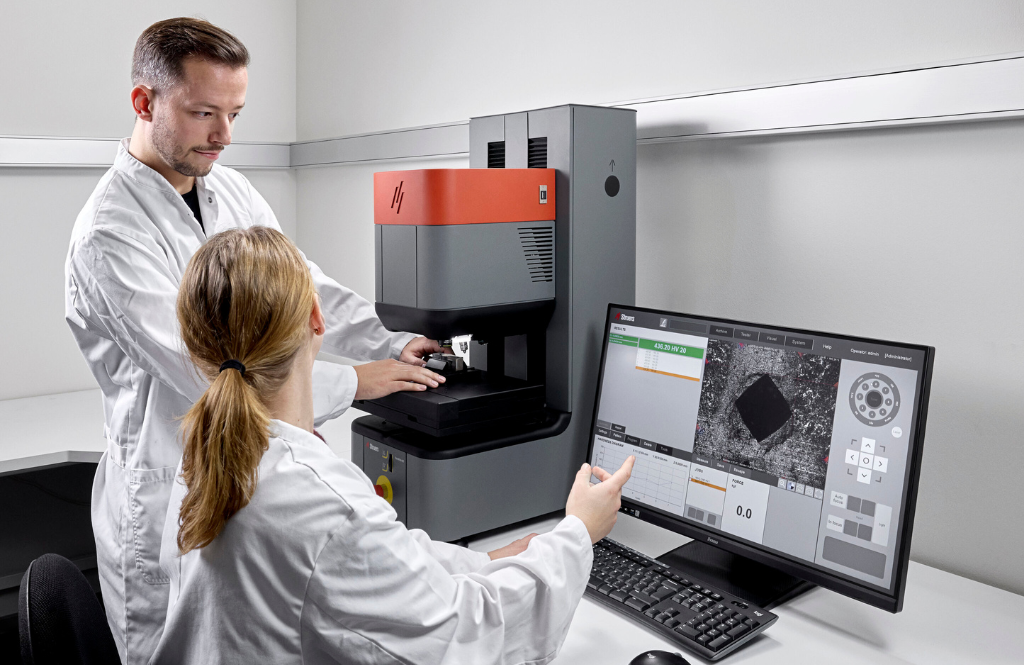

The DuraVista-80 is a top-tier automated micro hardness tester, supporting Vickers, Knoop, and Brinell scales from 0.1 gf to 62.5 kg. Its advanced movable test head features an 8-position angled turret for improved versatility and ergonomic use, while closed-loop loadcell technology and precision optics deliver consistent, reliable measurements.
How does DuraVista 80 support your Hardness Testing

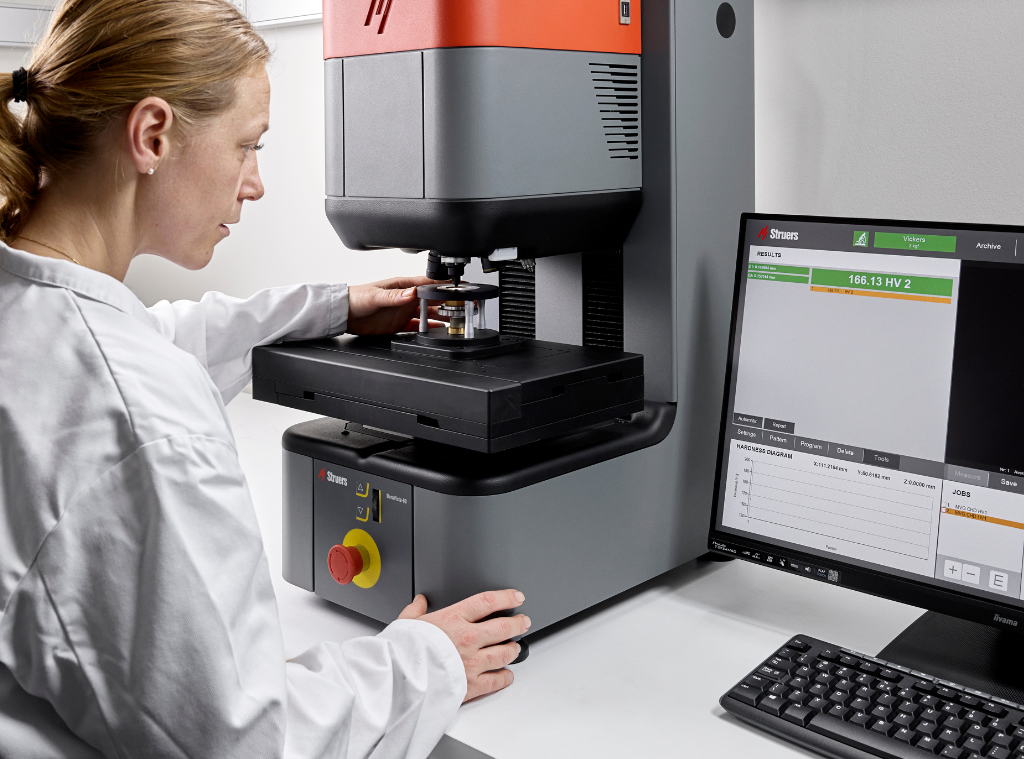

Ergonomics & Accuracy in Harmony

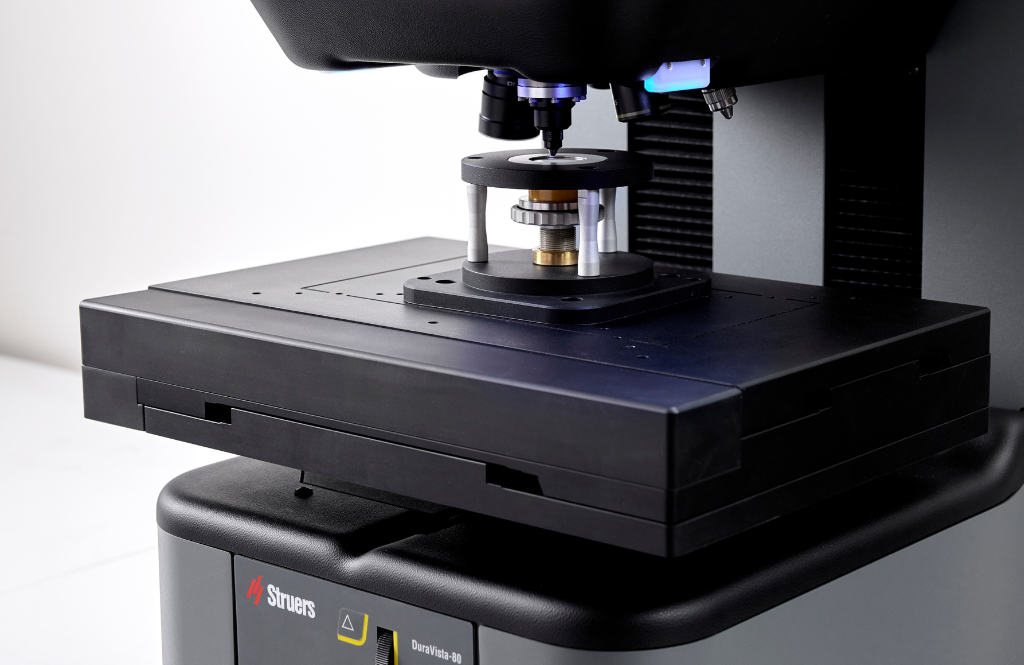

The DuraVista-80 stands out with its movable test head, designed to quickly position the load system and optics at the desired location. Utilizing a dual displacement system ensures precision by employing a separate high-precision load motor for test loads. The Twin model, DuraVista-80T, elevates versatility with an integrated test table spindle. This enables effortless positioning of your samples at an ergonomic height and delivers unparalleled flexibility.Touch focus
Our advanced touch focus technology, featuring a dedicated probe delivers fast and reliable auto-focus from extended distances. Designed for consistent performance, it ensures operator independence and exceptional repeatability.Freedom in hardness testing
Experience unmatched versatility with the innovative 8-position turret, a masterpiece of high-quality mechanical engineering. Its angled design provides full access and enhanced visibility for your samples. Each indenter position supports Vickers, Knoop, or Brinell indenters and is fully field-exchangeable for maximum adaptability.
Ergonomics & Accuracy in Harmony
Touch focus
Freedom in hardness testing

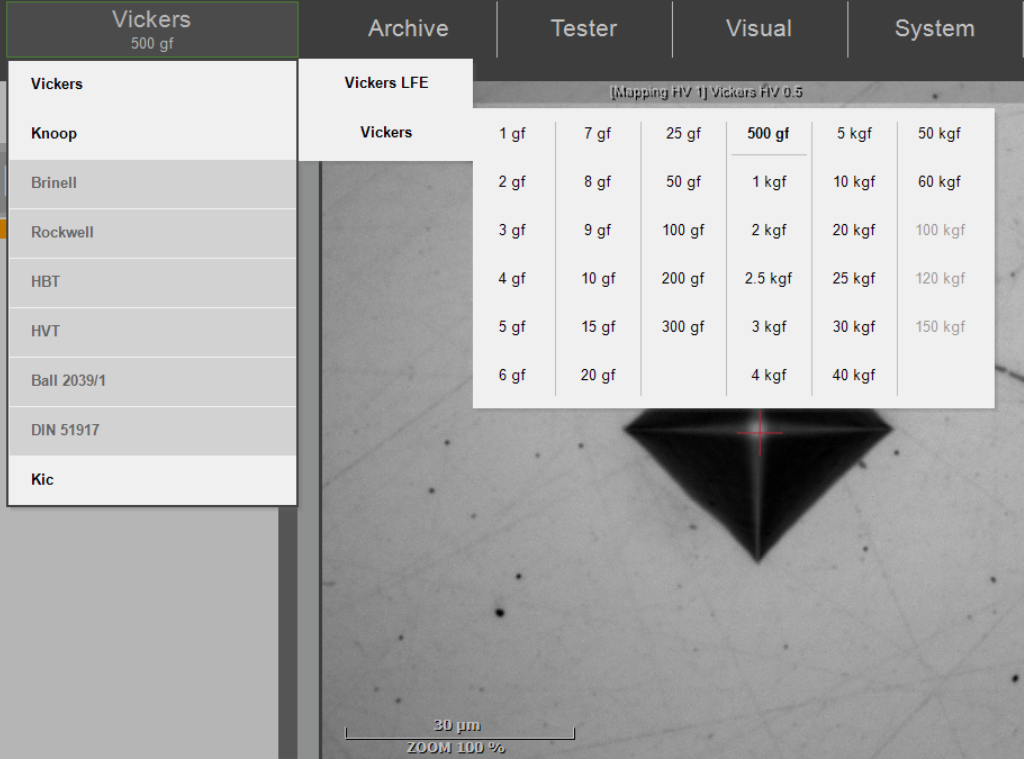

The unique, configurable test load range from 0.1 gf to 62,5 kg (0.00981 N to 612.9 N) can cover many applications that usually require both a micro- and a macro-indentation hardness tester. It also unveils new areas of interest with its sub-micro loads. It covers many Brinell, Vickers, and Knoop test methods and can automatically convert hardness values according to current standards.
Flexible load range

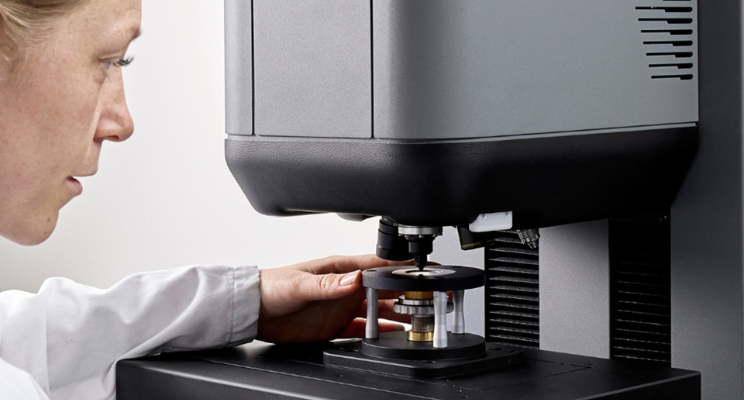

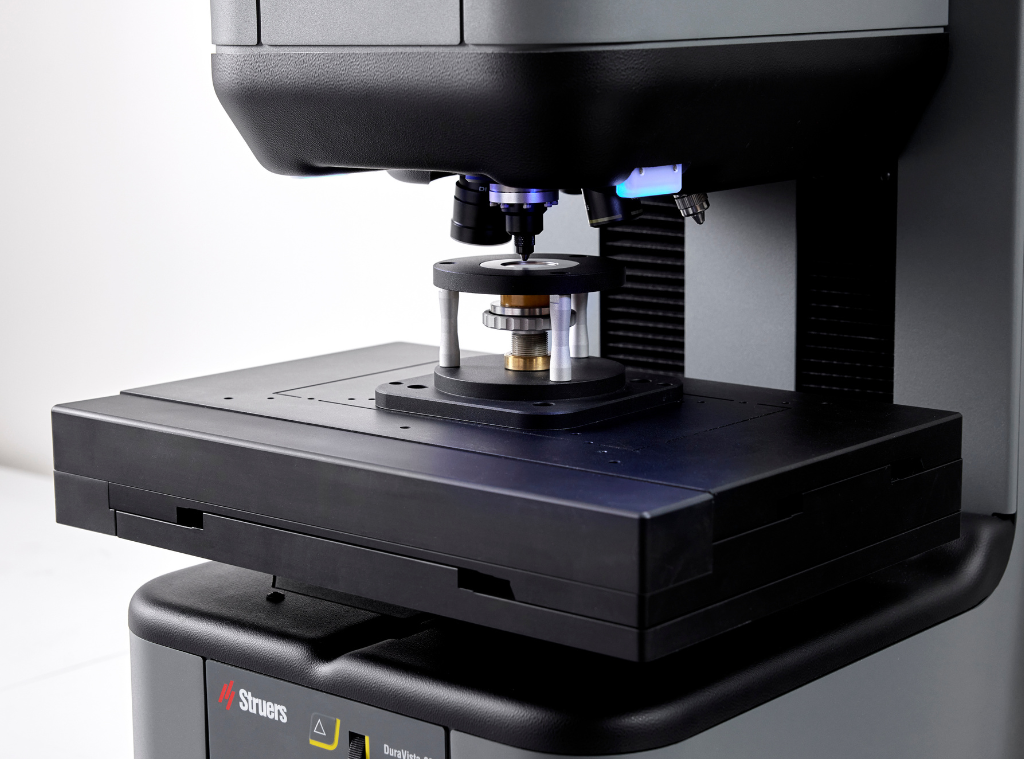

The DuraVista-80 excels with its innovative movable test head, specifically engineered to swiftly position both the load system and optical components at the exact target location. Its advanced dual displacement mechanism enhances accuracy by incorporating a dedicated high-precision load motor, ensuring precise application of test loads for reliable and consistent results.
Motorized Test head

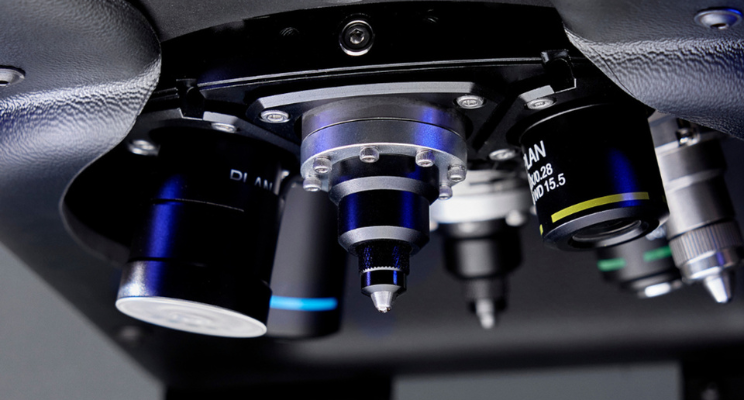

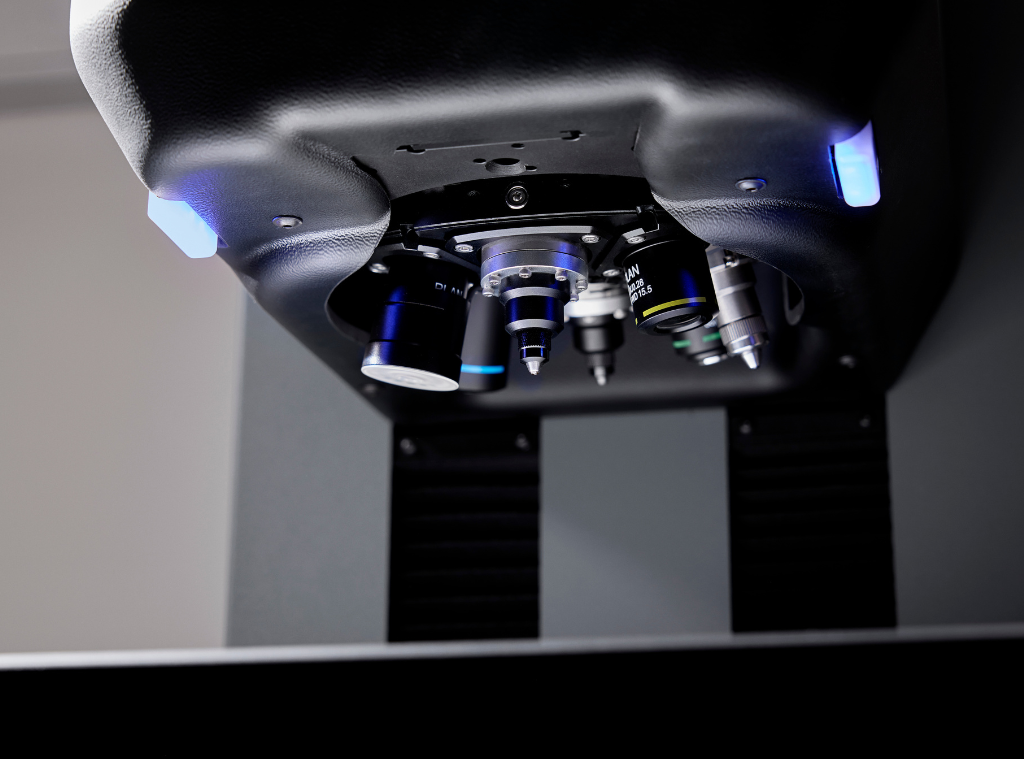

Unlock superior flexibility with the advanced 8-position turret, a testament to precision mechanical engineering. Its angled configuration ensures complete access and improved sample visibility. The turret can be configured for Vickers, Knoop, or Brinell indenters, and is fully field-replaceable, offering unmatched adaptability to diverse testing needs. Top-tier microscope-grade optics crafted to capture the most intricate details. Equipped with proprietary lenses and white LED Köhler illumination, along with an optional polarizer, it guarantees optimal contrast even at higher magnifications. The sophisticated optical system is meticulously engineered to ensure full compliance with ISO and ASTM hardness testing standards.
Angled turret
Our touch focus technology, equipped with a dedicated touch probe, provides fast and accurate auto-focus over extended distances. Engineered for dependable performance, it enhances operator independence while ensuring superior consistency and repeatability.
Touch focus

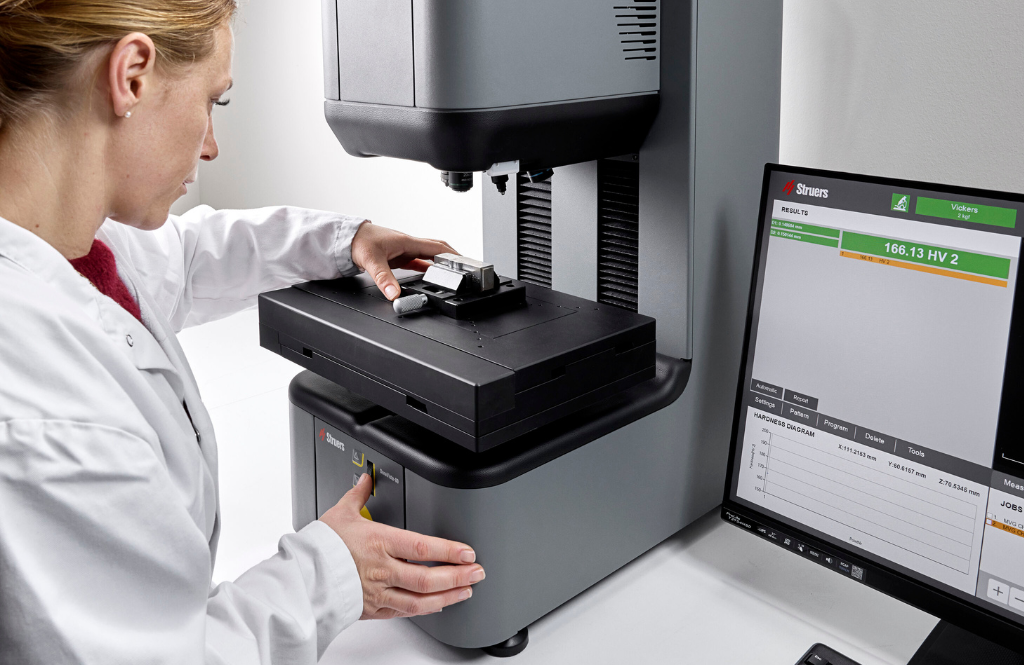

The Twin models, DuraVista-80MT and AT, set a new standard for versatility by featuring a motorized test table spindle. This design, combined with the movable test head, allows for seamless and precise positioning of samples at an optimal ergonomic height. The result is unmatched flexibility and ease of use, making complex testing procedures more efficient and comfortable for operators.
Twin model

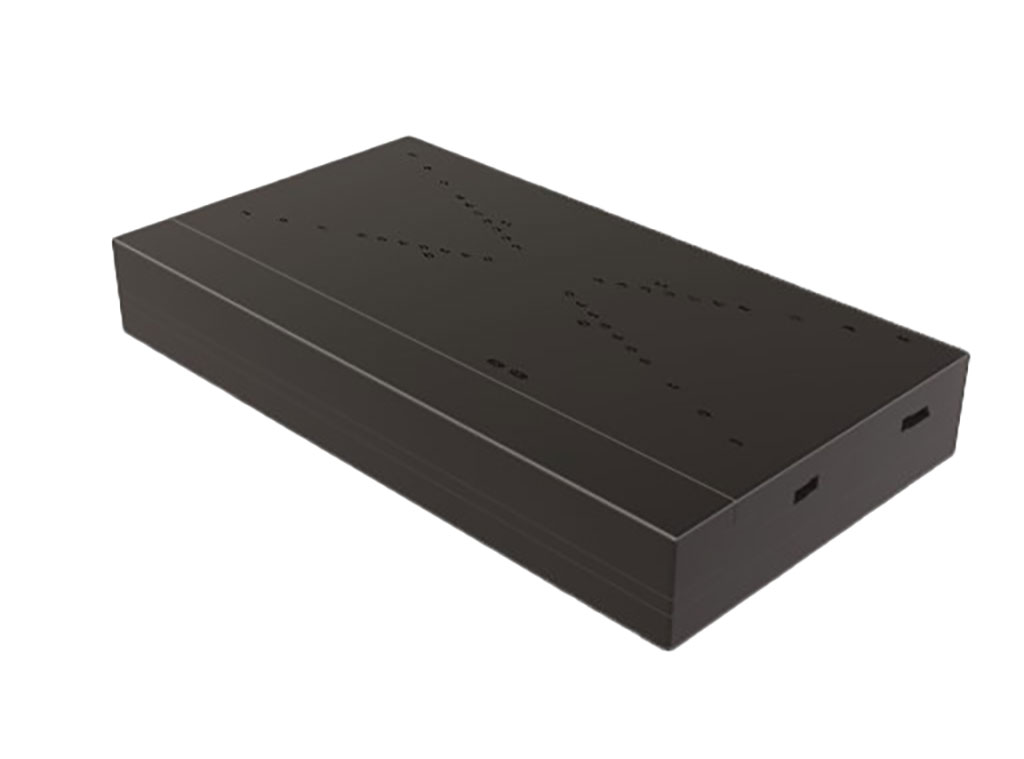

Introducing the Struers DirectConnect motorized stage, with built-in encoders for high repeatability. Available in three sizes to fit your needs, it offers fast, accurate navigation over multiple samples and allows you to get more done. The cable-less design enhances durability and streamlines your setup.
DirectConnect stage

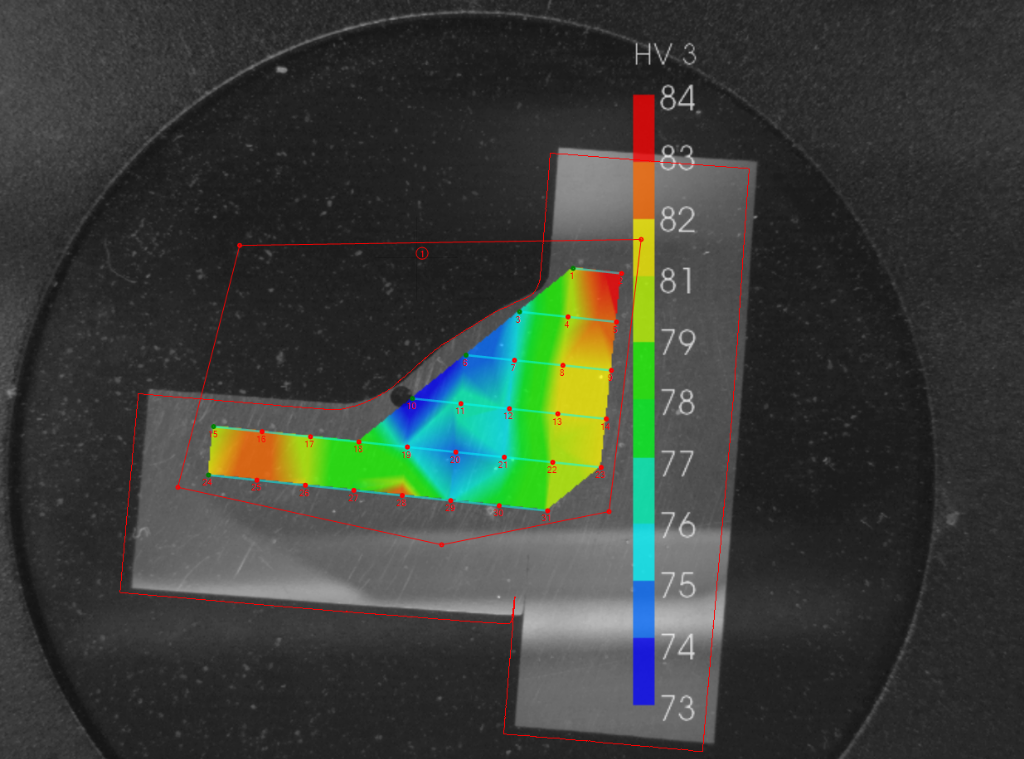

The optional overview camera makes it easy to position the test point series across a sample and execute it with a few mouse clicks. This feature ensures simplified execution and setup and is helpful when performing repetitive or high-volume measurements or weld testing.
Overview camera
Several software modules are available to match particular applications. These include modules covering case hardness depth measurement (CHD), weld measurement, surface mapping, edge detection, and Kc fracture toughness calculation.
Application-specific software modules

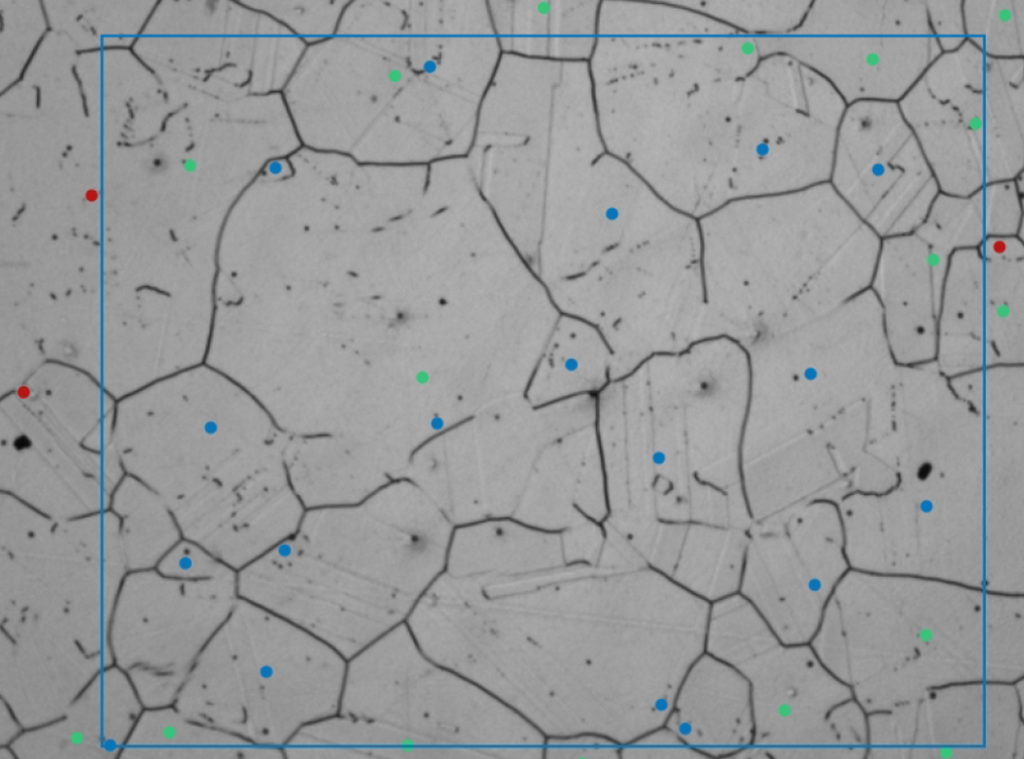

For measuring substrate hardness, layer thickness, grain size, or phases in limited lab space or needing fast evaluations in production, the DuraSoft-Met module is your solution. Save valuable time with its improved workflow, combining hardness testing and metallography analyses in one machine. With the DuraSoft-Met module, the DuraVista-80 doubles as a low magnification microscope for precise measurements on etched samples.
DuraSoft-Met metallography pack
Facts

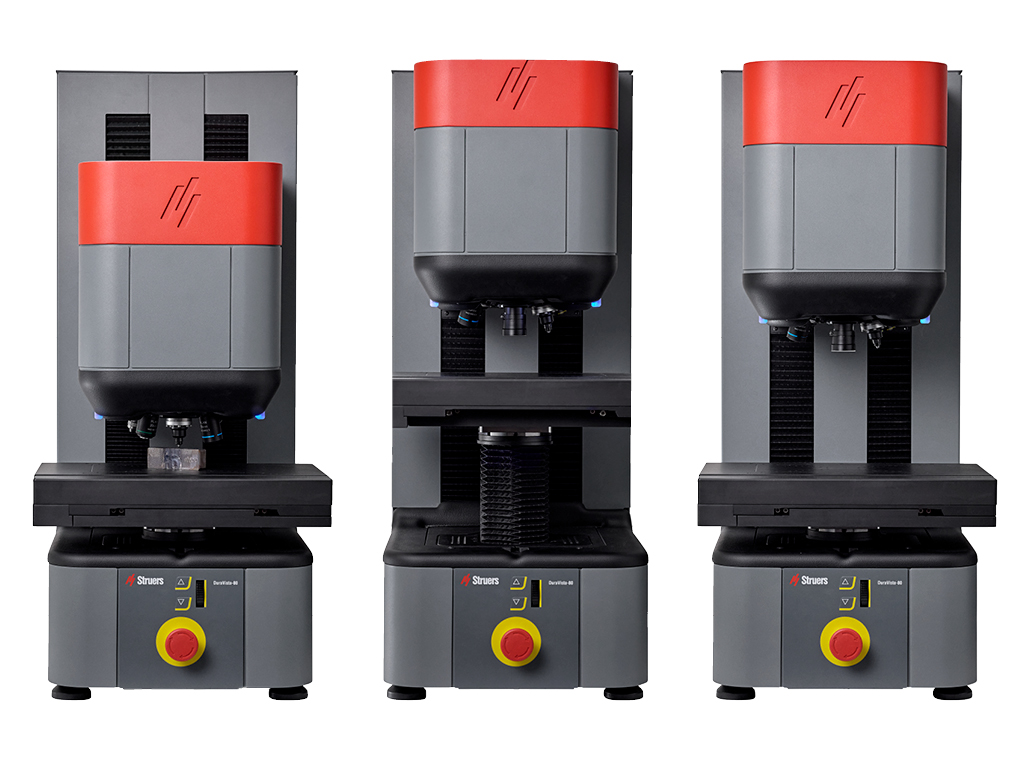

Model Types

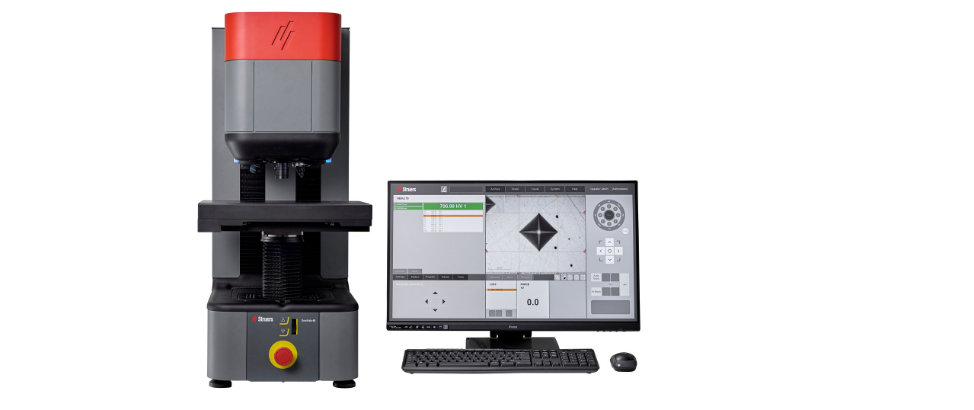

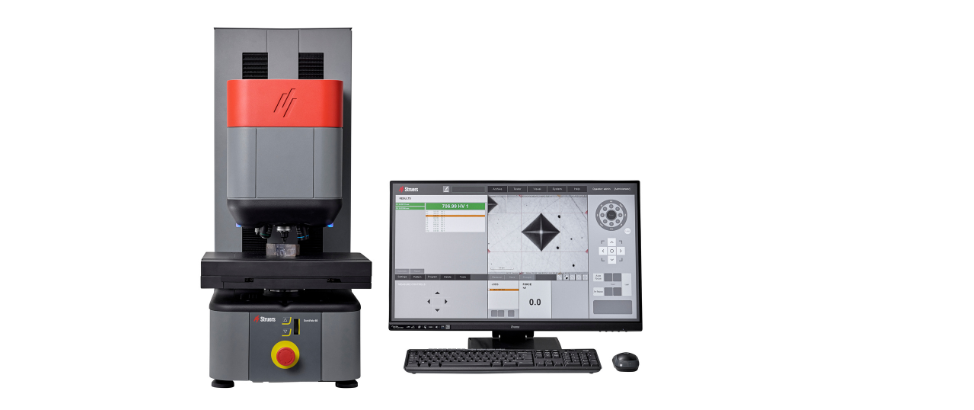

The DuraVista-80 models come with a motorized, eight-position angled turret that include a touch probe and a positioning laser, automatic illumination, auto focus & touch focus and automatic image evaluation as standard. The maximum sample height is up to 200 mm with manual stage, with a throat depth of 180 mm. The DuraVista-80 is operated via a 27-inch color touchscreen running on the powerful DuraSoft control software. Objective lenses, indenters and motorized stages are ordered separately.
DuraVista-80M
Automated micro-hardness tester with moveable test head, which rapidly positions the load system and optics to the desired position. The test loads are applied by a separate high-precision load motor.

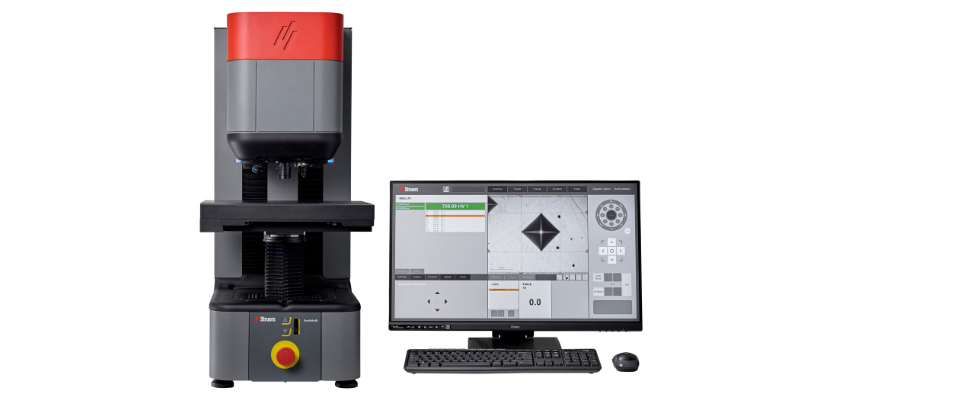

DuraVista-80MT
The Twin model DuraVista-80MT adds an additional dimension by adding a motorized test table spindle, which allows to position your sample(-s) at a comfortable height, and which unleashes unmatched flexibility.
DuraVista-80A
As the DuraVista-80M, but with additional overview camera, to position complex patterns in a faster manner and to beef up your reports with an overview image of your parts.
DuraVista-80AT
The DuraVista-80AT combines the powerful overview camera with the Twin Z-axis into one machine.
