Struers methods: Mg Alloys Water Sensitive 1705 Susp A Lub. Source classification: Non Ferrous Metals.
Searchable text transcription
The page images and original PDF preserve the table layout and notation.

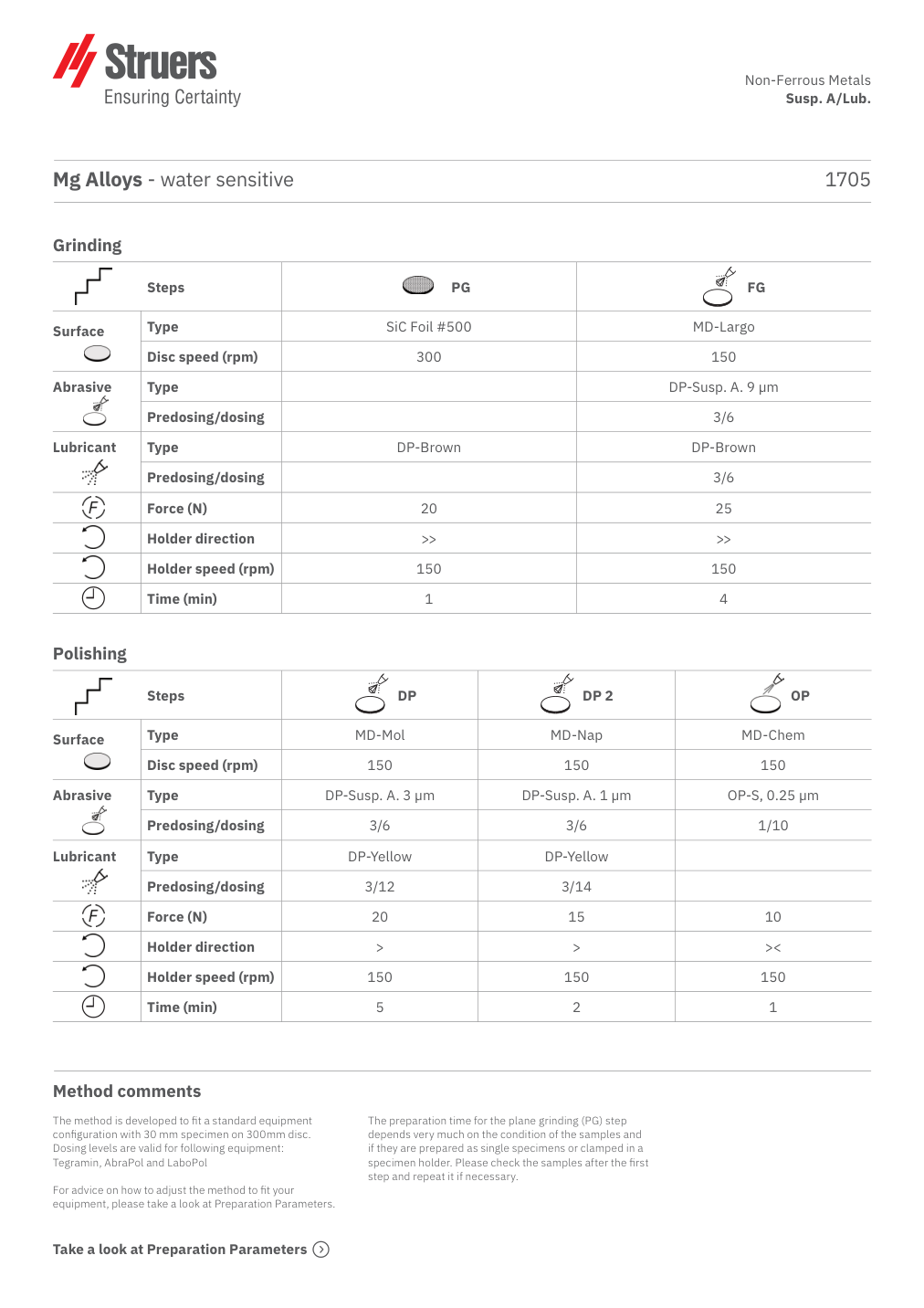

Polishing Steps DP DP 2 OP Surface Type MD-Mol MD-Nap MD-Chem Disc speed (rpm) 150 150 150 Abrasive Type DP-Susp. A. 3 µm DP-Susp. A. 1 µm OP-S, 0.25 µm Predosing/dosing 3/6 3/6 1/10 Lubricant Type DP-Yellow DP-Yellow Predosing/dosing 3/12 3/14 Force (N) 20 15 10 Holder direction > > >< Holder speed (rpm) 150 150 150 Time (min) 5 2 1 Mg Alloys - water sensitive 1705 Non-Ferrous Metals Susp. A/Lub. Grinding Steps PG FG Surface Type SiC Foil #500 MD-Largo Disc speed (rpm) 300 150 Abrasive Type DP-Susp. A. 9 µm Predosing/dosing 3/6 Lubricant Type DP-Brown DP-Brown Predosing/dosing 3/6 Force (N) 20 25 Holder direction >> >> Holder speed (rpm) 150 150 Time (min) 1 4 The method is developed to fit a standard equipment configuration with 30 mm specimen on 300mm disc. Dosing levels are valid for following equipment: Tegramin, AbraPol and LaboPol For advice on how to adjust the method to fit your equipment, please take a look at Preparation Parameters. The preparation time for the plane grinding (PG) step depends very much on the condition of the samples and if they are prepared as single specimens or clamped in a specimen holder. Please check the samples after the first step and repeat it if necessary. Method comments Take a look at Preparation Parameters
