Minitom Remote cutting equipment | Struers.com
A low-speed cut-off machine for isolated materials, the Minitom MSM enables remote operation and handling of samples for precision materialographic and metallographic cutting and sectioning in enclosed cells.
Minitom Remote
User-friendly equipment for materialographic cutting of isolated materials in enclosed cells
Minitom Remote facts
Cutting of all types of materialographic workpieces
Easy to use
Easy to clean
75-127 mm (3”-5”) diameter cut-off wheel size

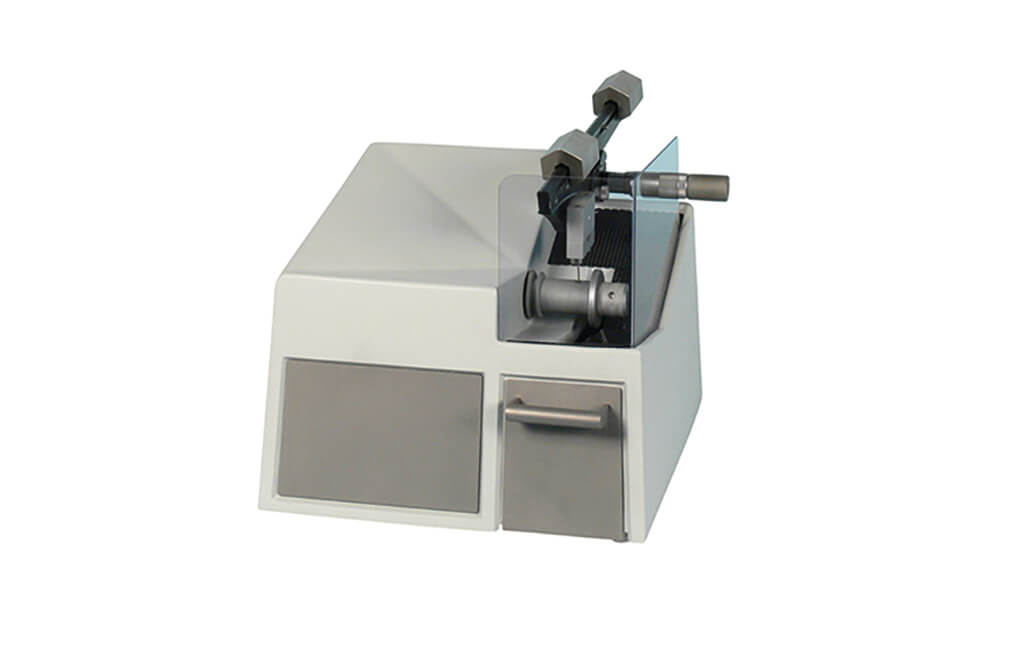

The Minitom Remote precision cut-off machine is one of the components in the Struers Remote System. The machine is based on Struers standard Minitom. The machine is adapted to allow remote operation and remote handling of specimens. Maintenance can be carried out in the cell, using manipulators.
How does Minitom Remote support your Cutting Process?
Simple to operate
Fixation of the specimen holder and setting the cutting parameters are easy and very fast.
Low speed
Low speed to ensure very gentle and precise cutting
Built-in tank for cooling fluid
To ensure optimal cooling and easy maintenance of the cooling fluid
Minitom Remote can cut workpieces up to 30 mm dia.
Maximum size of workpiece
The required specimen size can be set with an accuracy of 10 µm, by means of a micrometer screw.
Precision
Minitom can be supplied with a variety of specimen holders to suit a wide range of workpiece types.
Specimen holders
Facts
Model types
Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards. Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
Minitom Remote

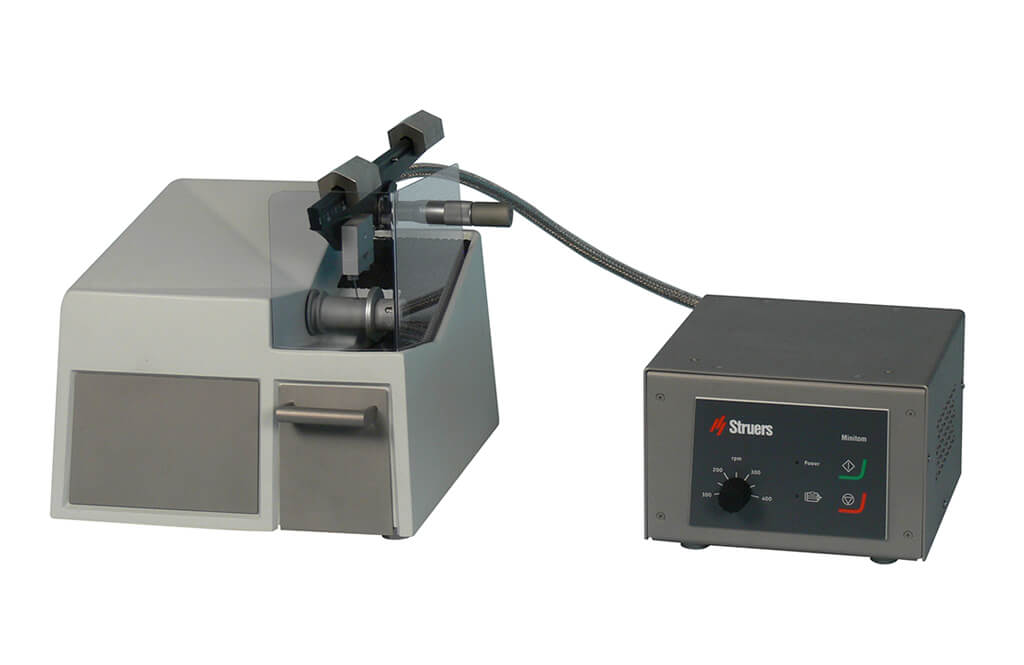

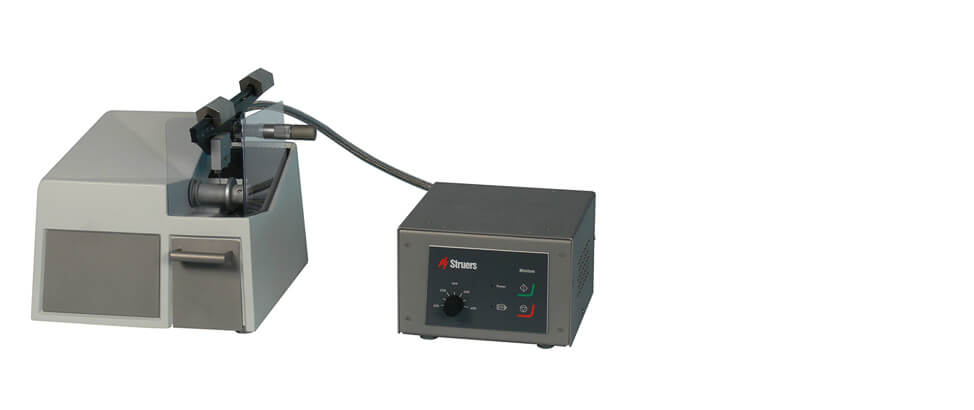

Minitom RemoteLow-speed precision cut-off machine. Complete with control box with electric parts and controls for rack mounting outside the enclosed cell, universal specimen holder (04436901) and flange set 65 mm dia., as well as 42 mm dia. Cut-off wheels and cutting fluid are ordered separately. Length of supply cable is 8.0 m; 1 x 100-240 V / 50-60 Hz.
Technical Data
Minitom Remote Technical Data Sheet
Struers Technical Data Sheets are designed to help you make the best choice of equipment for your particular purpose. You can find important information such as capacity and performance specifications, dimensions, weight, electrical data, noise levels, ambient conditions, and safety. In many cases you can also obtain an overview of accessories offering higher capacity and performance.
Minitom Remote Technical Data Sheet
The Minitom Remote precision cut-off machine is one of the components in the Struers Remote System. The machine is based on Struers standard Minitom. The machine is adapted to allow remote operation and remote handling of specimens. Maintenance can be carried out in the cell, using manipulators.
