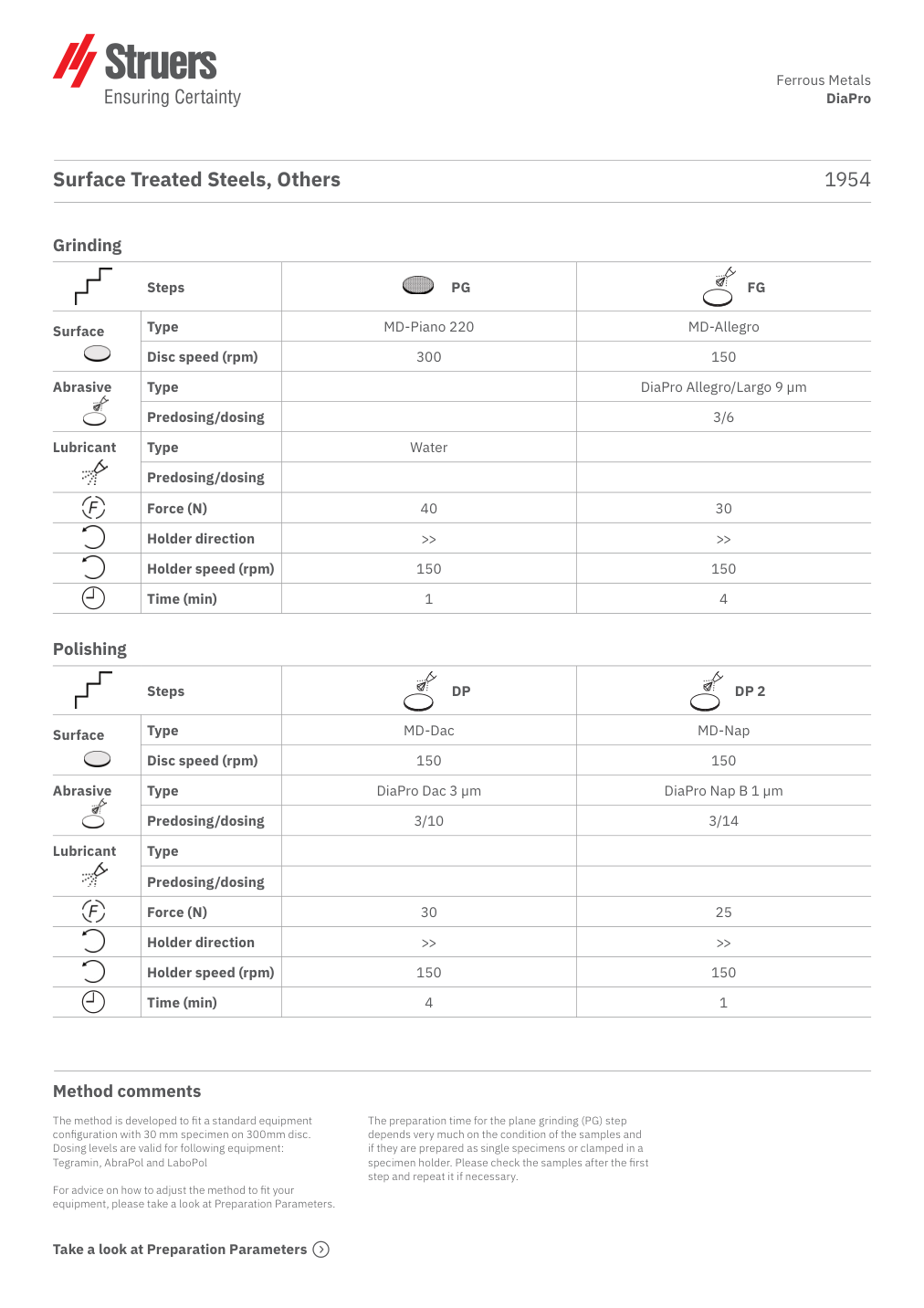

Struers methods: Surface Treated Steels Others 1954 DiaPro. Source classification: Ferrous Metals.
Searchable text transcription
The page images and original PDF preserve the table layout and notation.
Surface Treated Steels, Others 1954 Ferrous Metals DiaPro Grinding Steps PG FG Surface Type MD-Piano 220 MD-Allegro Disc speed (rpm) 300 150 Abrasive Type DiaPro Allegro/Largo 9 µm Predosing/dosing 3/6 Lubricant Type Water Predosing/dosing Force (N) 40 30 Holder direction >> >> Holder speed (rpm) 150 150 Time (min) 1 4 Polishing Steps DP DP 2 Surface Type MD-Dac MD-Nap Disc speed (rpm) 150 150 Abrasive Type DiaPro Dac 3 µm DiaPro Nap B 1 µm Predosing/dosing 3/10 3/14 Lubricant Type Predosing/dosing Force (N) 30 25 Holder direction >> >> Holder speed (rpm) 150 150 Time (min) 4 1 The method is developed to fit a standard equipment configuration with 30 mm specimen on 300mm disc. Dosing levels are valid for following equipment: Tegramin, AbraPol and LaboPol For advice on how to adjust the method to fit your equipment, please take a look at Preparation Parameters. The preparation time for the plane grinding (PG) step depends very much on the condition of the samples and if they are prepared as single specimens or clamped in a specimen holder. Please check the samples after the first step and repeat it if necessary. Method comments Take a look at Preparation Parameters
