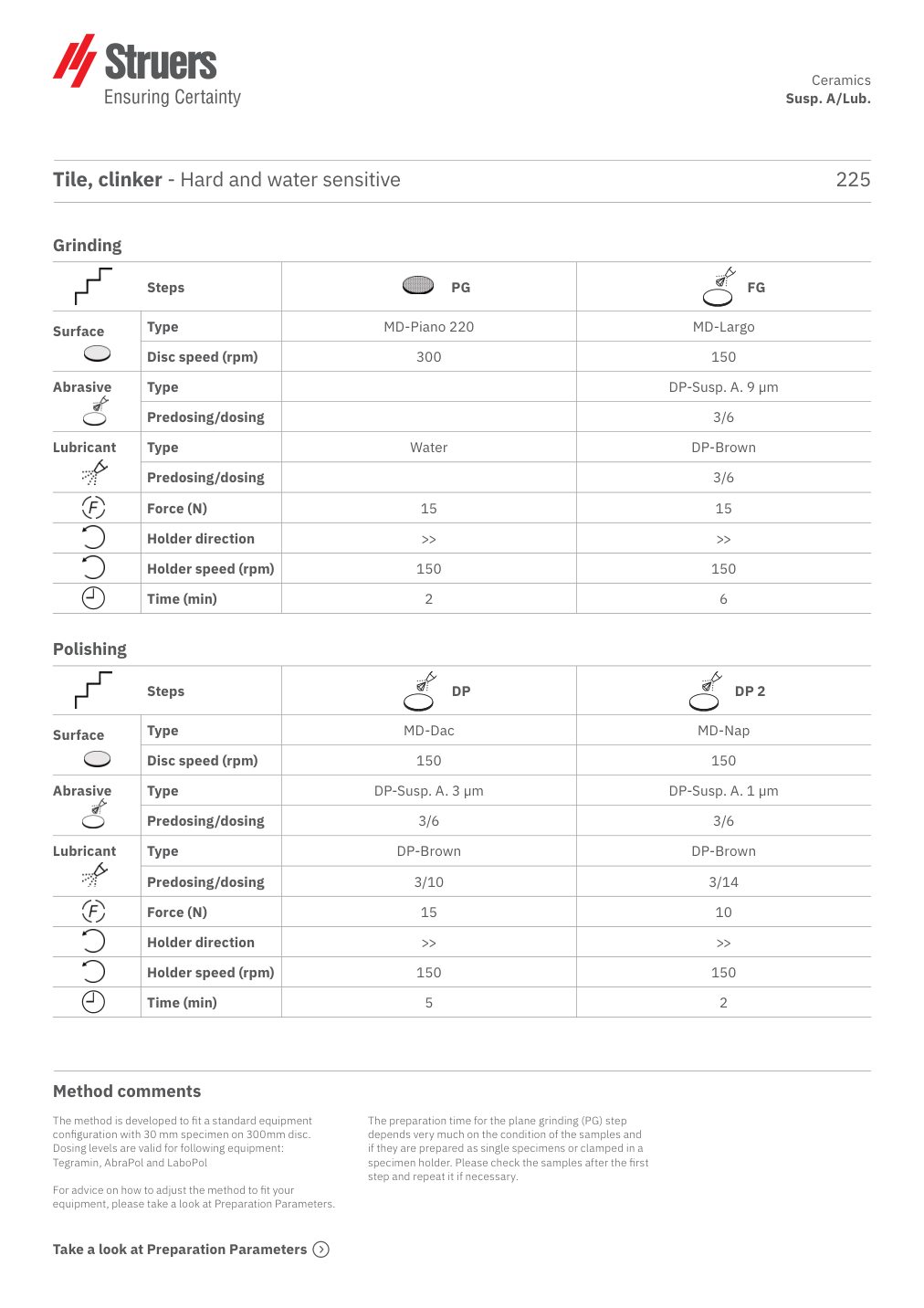

The page images and original PDF preserve the table layout and notation.
Tile, clinker - Hard and water sensitive 225 Ceramics Susp. A/Lub. Grinding Steps PG FG Surface Type MD-Piano 220 MD-Largo Disc speed (rpm) 300 150 Abrasive Type DP-Susp. A. 9 µm Predosing/dosing 3/6 Lubricant Type Water DP-Brown Predosing/dosing 3/6 Force (N) 15 15 Holder direction >> >> Holder speed (rpm) 150 150 Time (min) 2 6 Polishing Steps DP DP 2 Surface Type MD-Dac MD-Nap Disc speed (rpm) 150 150 Abrasive Type DP-Susp. A. 3 µm DP-Susp. A. 1 µm Predosing/dosing 3/6 3/6 Lubricant Type DP-Brown DP-Brown Predosing/dosing 3/10 3/14 Force (N) 15 10 Holder direction >> >> Holder speed (rpm) 150 150 Time (min) 5 2 The method is developed to fit a standard equipment configuration with 30 mm specimen on 300mm disc. Dosing levels are valid for following equipment: Tegramin, AbraPol and LaboPol For advice on how to adjust the method to fit your equipment, please take a look at Preparation Parameters. The preparation time for the plane grinding (PG) step depends very much on the condition of the samples and if they are prepared as single specimens or clamped in a specimen holder. Please check the samples after the first step and repeat it if necessary. Method comments Take a look at Preparation Parameters
