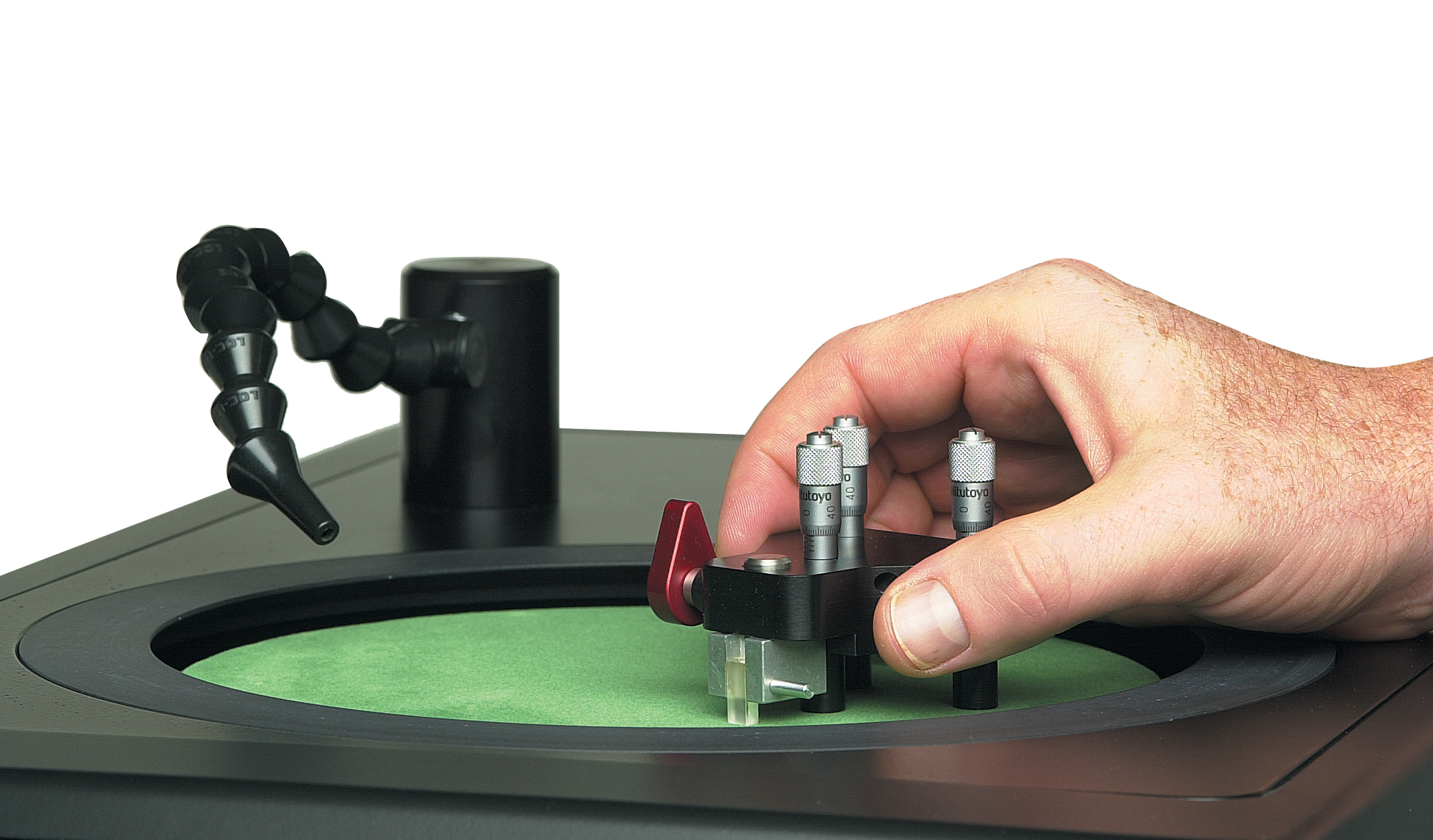

The TEM Wedge Tool is used to thin materials to electron transparency for TEM observation. The rear micrometer heads allow radial or axial (wedge) angle adjustments in the sample. Non-rotating micrometer heads are available to eliminate faceting of Delrin® feet.
The cross-sectioning and Pyrex® paddles attach using a cam-locking system (no tools needed), allowing quick, easy removal for sample inspection and exact repositioning throughout the polishing procedure. The small Pyrex® footprint reduces planarization time due to less surface area making contact with the abrasive.
TEM Wedge Tool Kit includes:
- #15-1010 Cross-Sectioning Paddle w/3.1mm Removable SEM Adapter Pin
- #15-1013 TEM/FIB Thinning Paddle w/Pyrex® Insert (x 2)
- #15-1017 Heating/Mounting Stage
- #69-40037 Delrin® Feet for #15-2218 Micrometer Head (Pk/3)
- #71-10040 Hot Mounting Wax, Clear 50 Gram Stick
- #71-40045 Loc-Tite 460T Sample Bonding Glue, 20 Gram Bottle
- #69-40050 Glass Leveling Slides (Pk/5)
- #71-10000 EpoxyBond 110 2-Part Adhesive, ½ oz. Kit
- Storage Case
Features
| Lightweight anodized aluminum body for corrosion resistance | Low profile fixtures fit under objectives in most microscopes | |
| Cam-Lock lever can be mounted on the right or left side according to operator's preference | Aluminum cross-sectioning paddle fits into most SEMs without the need to demount the sample |
| Item # | Description | |
|---|---|---|
| 69-42000 | TEM WEDGE POLISHER KIT w/Low Profile Micrometer Heads | |
| 69-42005 | TEM WEDGE POLISHER KIT w/Non-Rotating Micrometer Heads |
Product Accessories
| Item # | Description | |
|---|---|---|
| 69-40035 | TEM Wedge Tool Replacement Delrin® Feet for 69-42005 TEM Wedge Tool (Pk/3) | |
| 69-40050 | Glass Leveling Slide for TEM Wedge Polisher (Pk/5) |
