A portable electrolytic polishing and etching machine for fast and efficient non-destructive metallographic preparation in the field. MoviPol prepares surfaces for analysis in less than one minute and gives you 1.5 hours of uninterrupted battery-powered operation.
MoviPol
Fast and efficient, non-destructive metallographic preparation in the field.
MoviPol-5 facts
Automatic polishing and etching
Method Database
Electrolyte cartridge system
Peristaltic pump for work in any position
Safety features

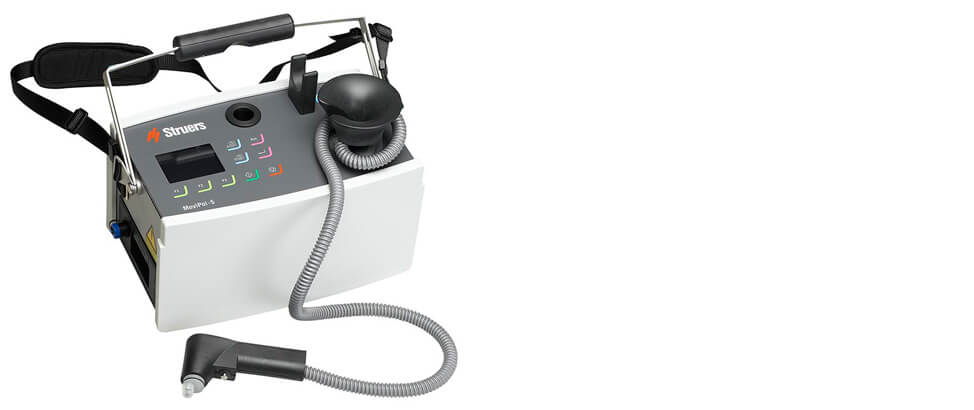

MoviPol-5 is a portable and robust electrolytic polishing and etching machine for fast and efficient, non-destructive metallographic preparation anywhere. It comes with a battery pack that ensures up to 1.5 hours of uninterrupted operation.

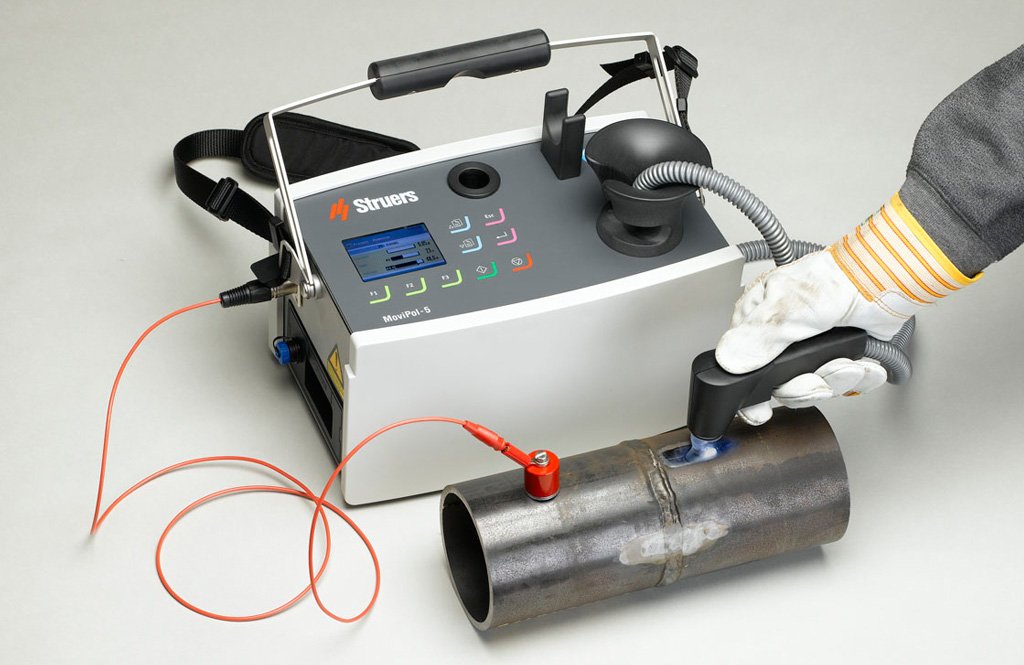

MoviPol-5 can be used directly on critical surfaces and is widely used for metal safety inspection, especially for critical parts of larger units, e.g. welds on pipelines and other joints on large structures. The method effectively reveals changes in the microstructure of the metal and allows preventing possible damage because of cracks and leaks.
How does MoviPol support your Electrolytic Preparation
Ultrafast results

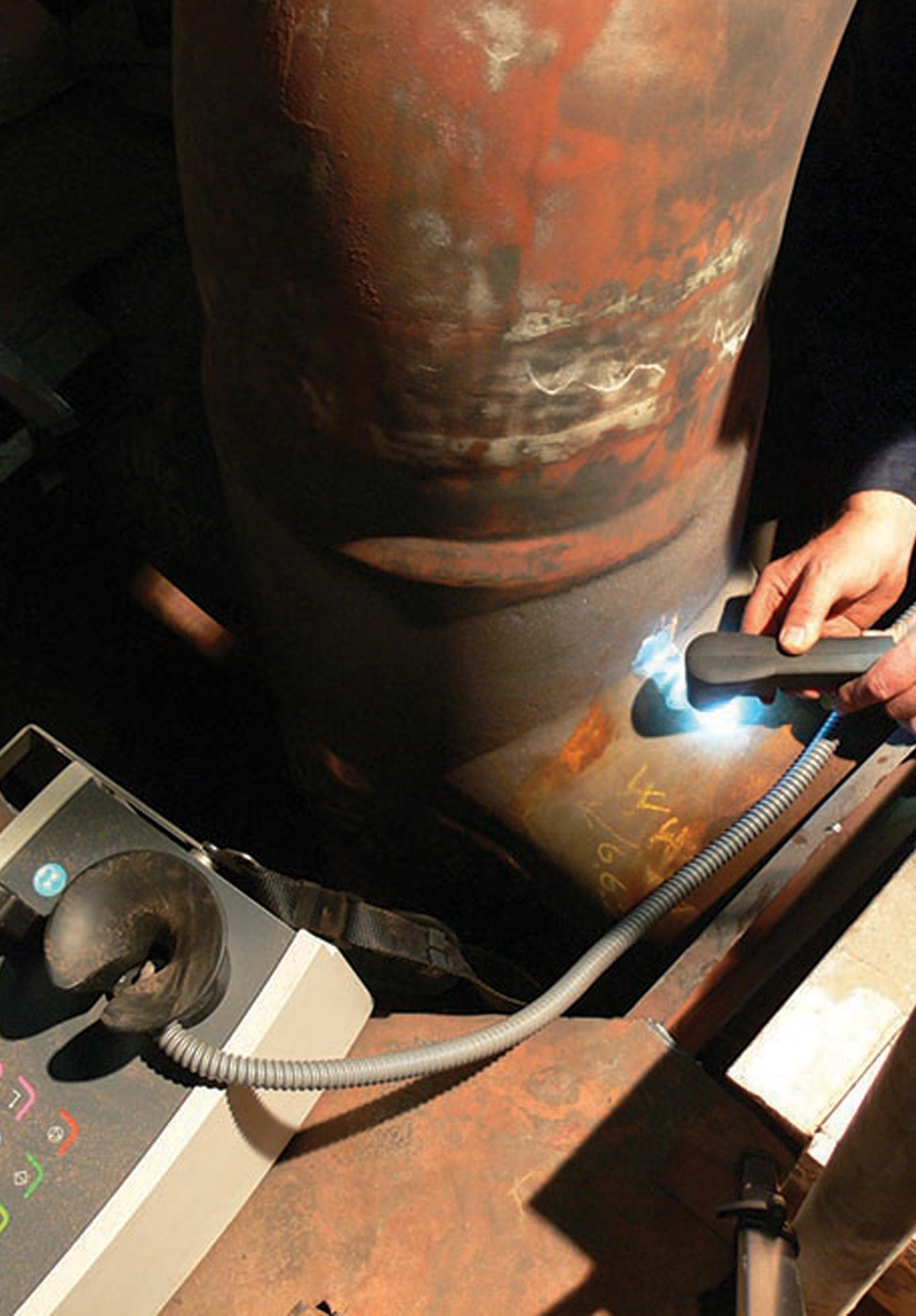

In less than one minute, a surface is obtained which is ready for analysis, either on-site or by means of a replica for laboratory examination.Non-destructive

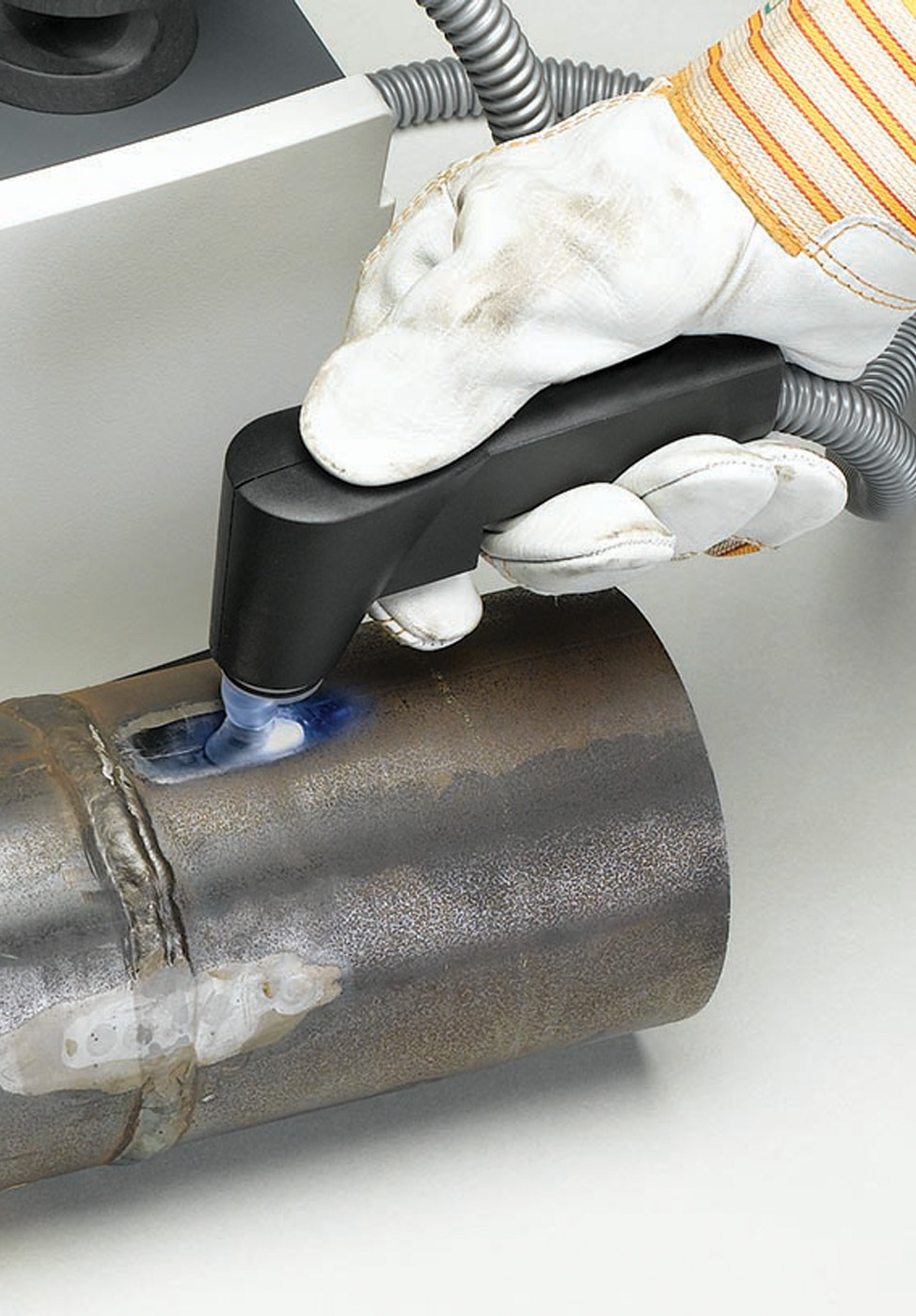

Electrolytic polishing makes only an insignificant mark on the material being prepared for inspection.Complete Freedom
MoviPol-5 is equipped with a rechargeable battery pack ensuring up to 1.5 hours of uninterrupted battery operation, making it ideal for field work.
Ultrafast results
Non-destructive
Complete Freedom

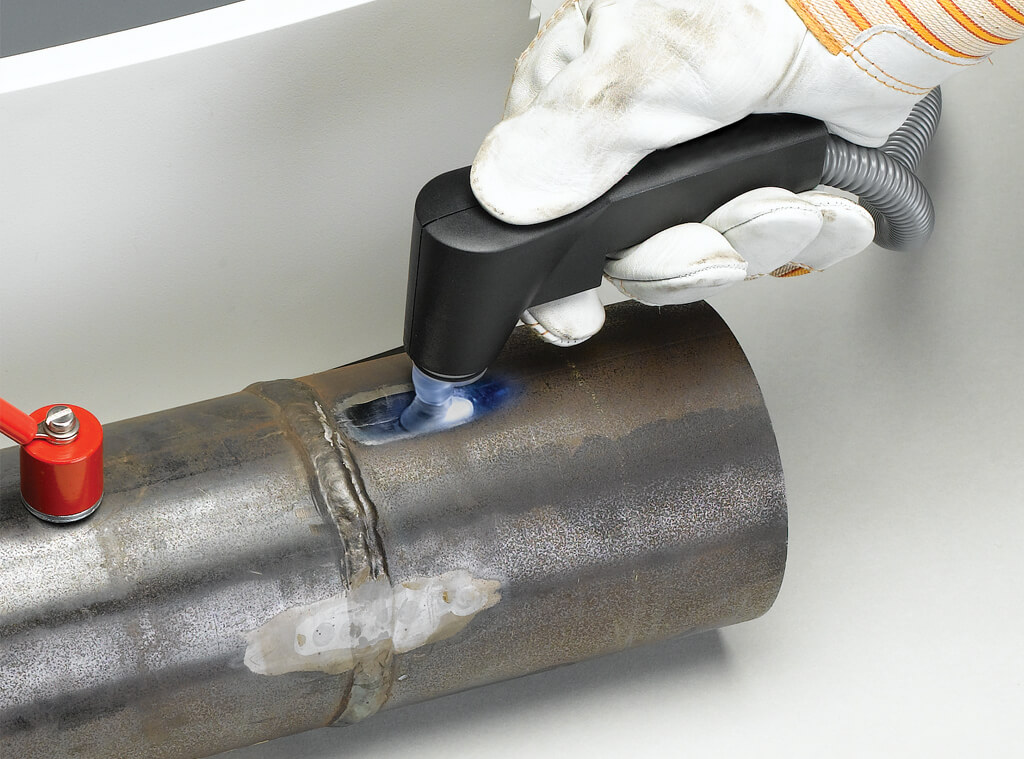

Activating the polishing pistol starts an electrolytic reaction. After completion of the polishing step, MoviPol-5 automatically proceeds to the etching process.
Automatic polishing and etching

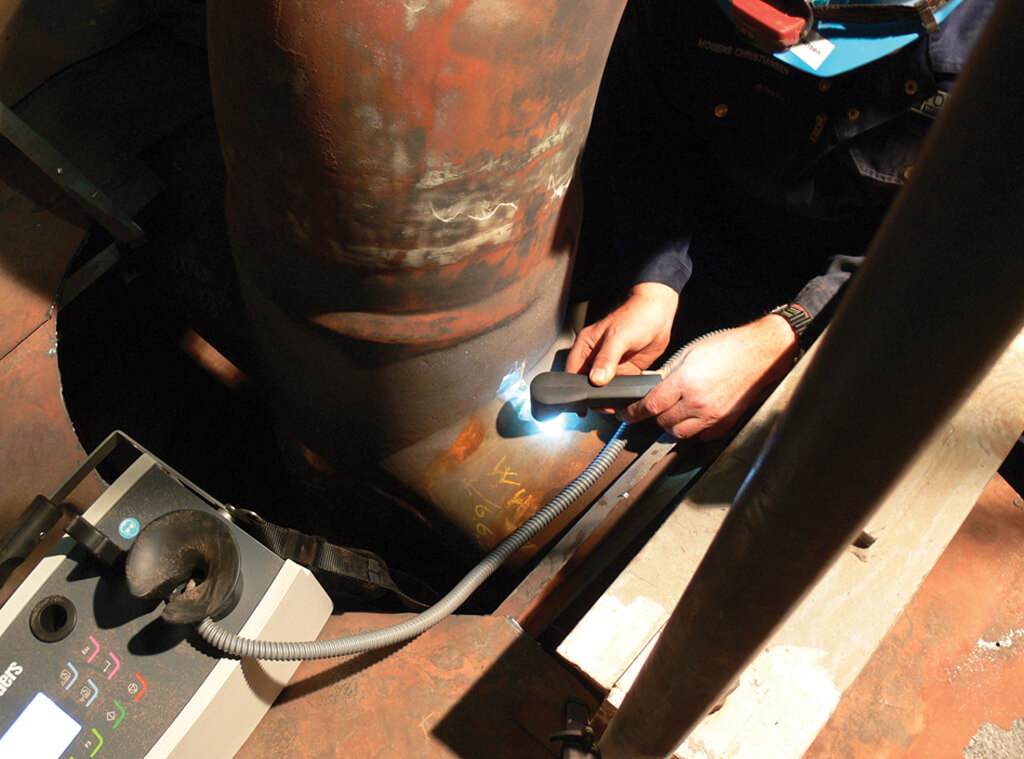

Frequently, electropolishing is carried out in poorly lit environments. The built-in LED light ensures optimum visual control of the polishing/etching process.
Built-in process light

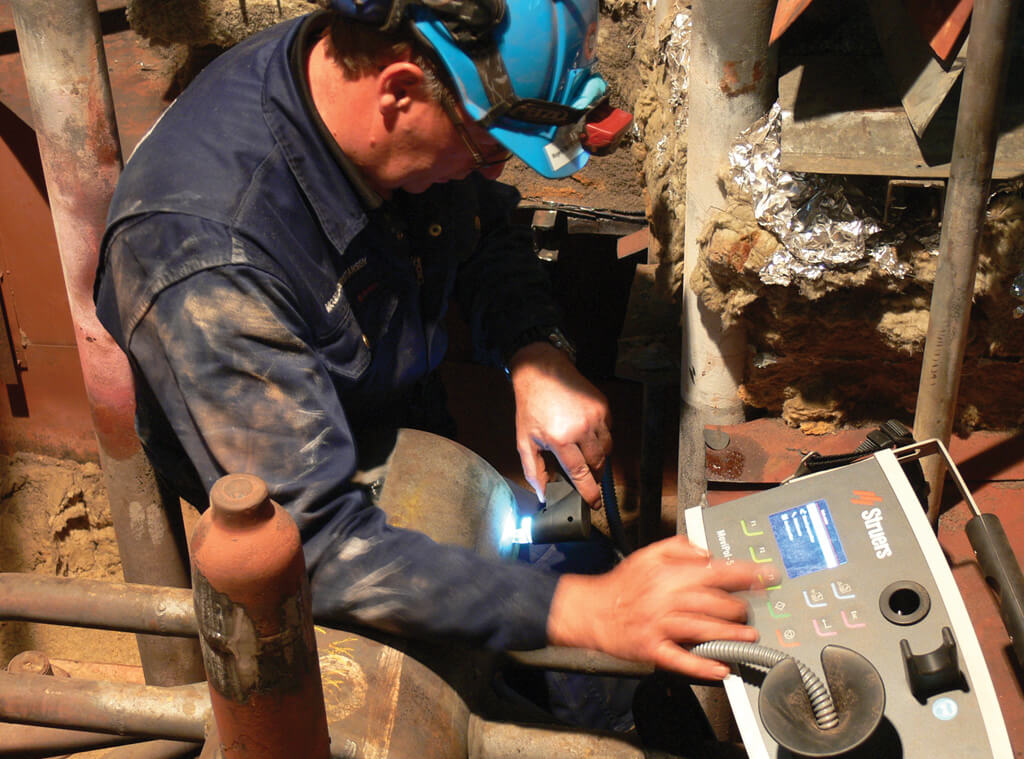

MoviPol comes with a method database for common materials. The operator can use the pre-defined methods or update them to their own requirements. The database ensures uniform results and repeatability. Totally, up to 20 methods can be stored in the database.
Method Database

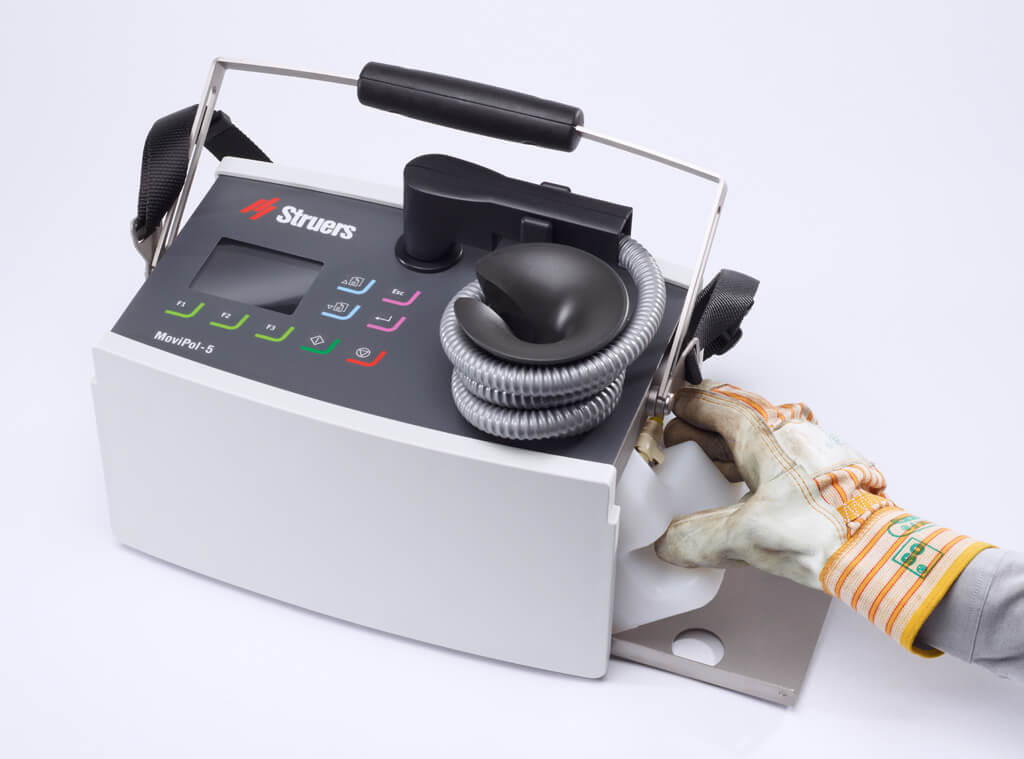

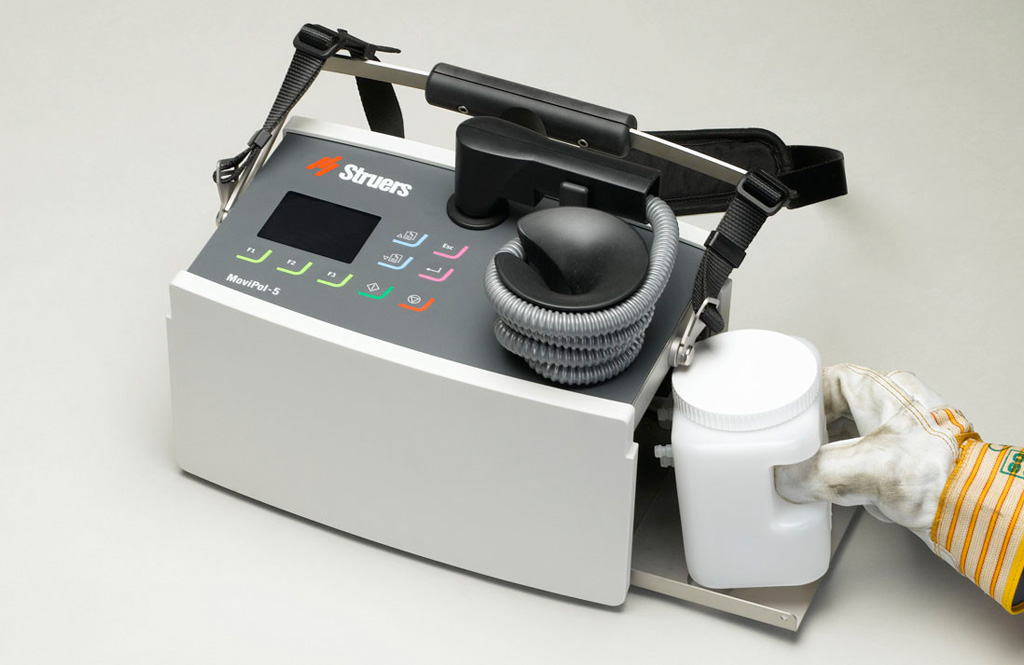

A new feature of MoviPol-5 is the introduction of exchangeable electrolyte cartridges. Rather than refilling the container, the entire cartridge is replaced in a quick and clean process. The refilling process can be done in a controlled laboratory environment, thus reducing the time wasted when operating in the field.
Electrolyte cartridge system
Movipol-5’s peristaltic pump enables the polishing pistol to function perfectly on any surface that requires it to operate horizontally or inverted.
Peristaltic pump for work in any position

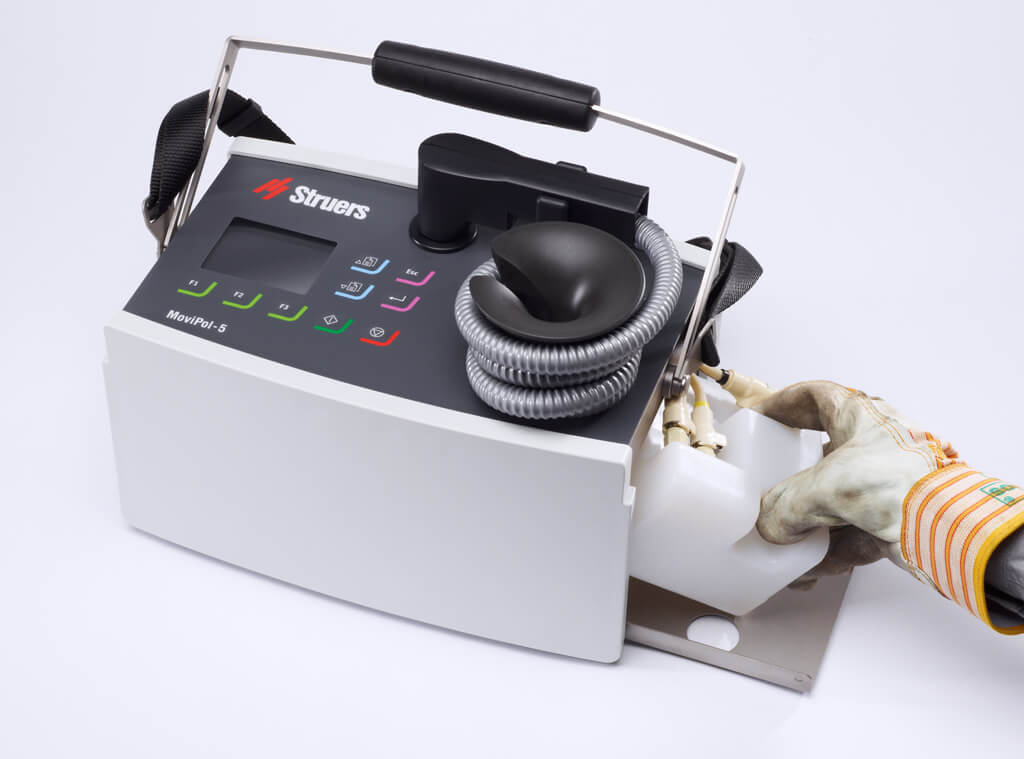

For extended hours in the field, both battery pack and electrolyte cartridge can be replaced in seconds.
Fast battery and electrolyte replacement

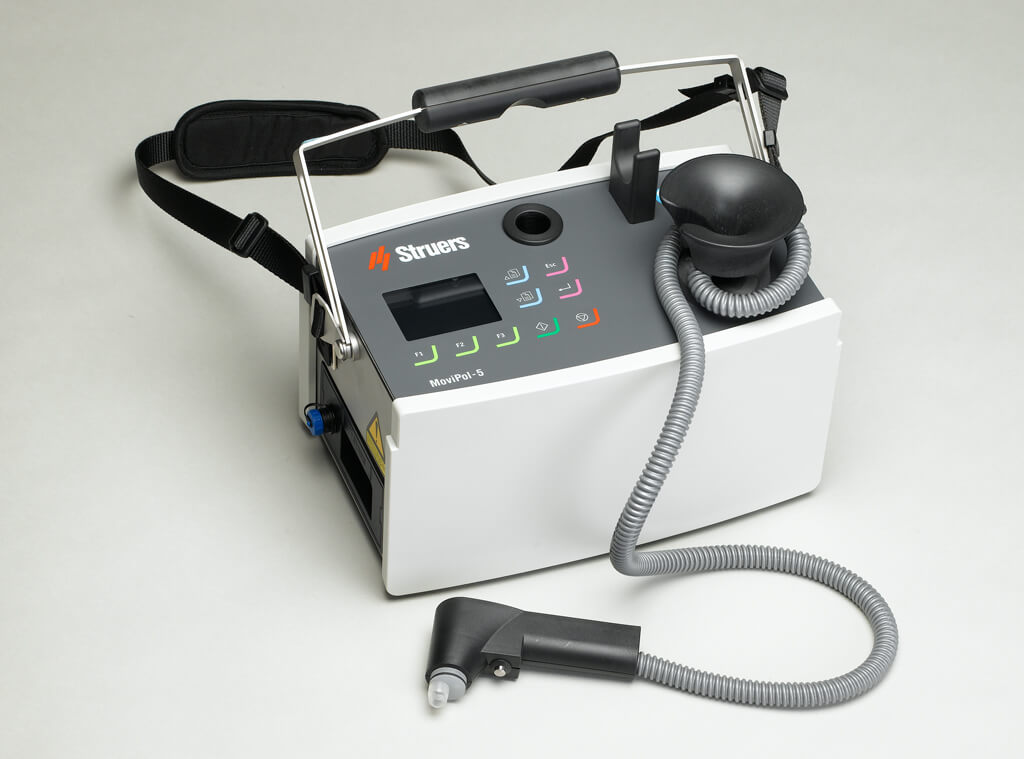

A non-return valve ensures that the electrolyte only flows during operation. A tilt-sensor warns the operator if the Movipol-5 is tilted more than 45 degrees, thus removing the risk of spilling electrolyte. MoviPol-5 is made in compliance with the international safety standard EN60204.
Safety features
Facts
Model types
Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards. Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
MoviPol-5

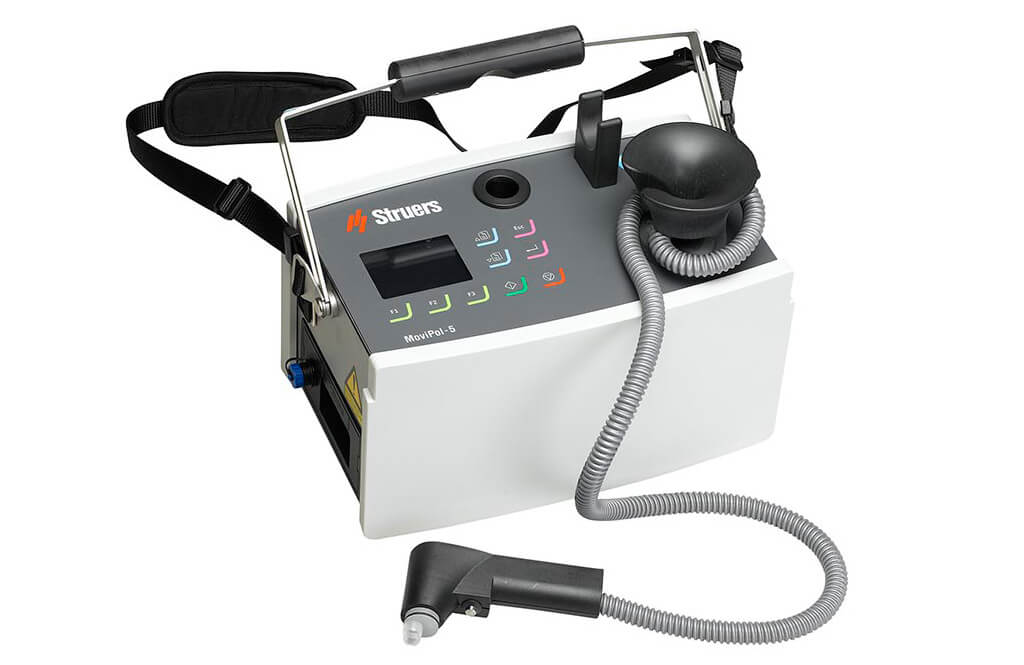

MoviPol-5Portable electrolytic polishing and etching apparatus. Battery or mains operation, 30V or 100-240V / 50-60 Hz. Complete with electrolyte cartridge, external magnetic anode, shoulder strap, rechargeable battery pack, and battery charger. Including 10 pcs polishing chambers.
Technical Data
MoviPol Technical Data Sheet
Struers Technical Data Sheets are designed to help you make the best choice of equipment for your particular purpose. You can find important information such as capacity and performance specifications, dimensions, weight, electrical data, noise levels, ambient conditions, and safety. In many cases you can also obtain an overview of accessories offering higher capacity and performance.
MoviPol-5 is a portable and robust electrolytic polishing and etching machine for fast and efficient, non-destructive metallographic preparation anywhere. It comes with a battery pack that ensures up to 1.5 hours of uninterrupted operation.
MoviPol-5 can be used directly on critical surfaces and is widely used for metal safety inspection, especially for critical parts of larger units, e.g. welds on pipelines and other joints on large structures. The method effectively reveals changes in the microstructure of the metal and allows preventing possible damage because of cracks and leaks.
